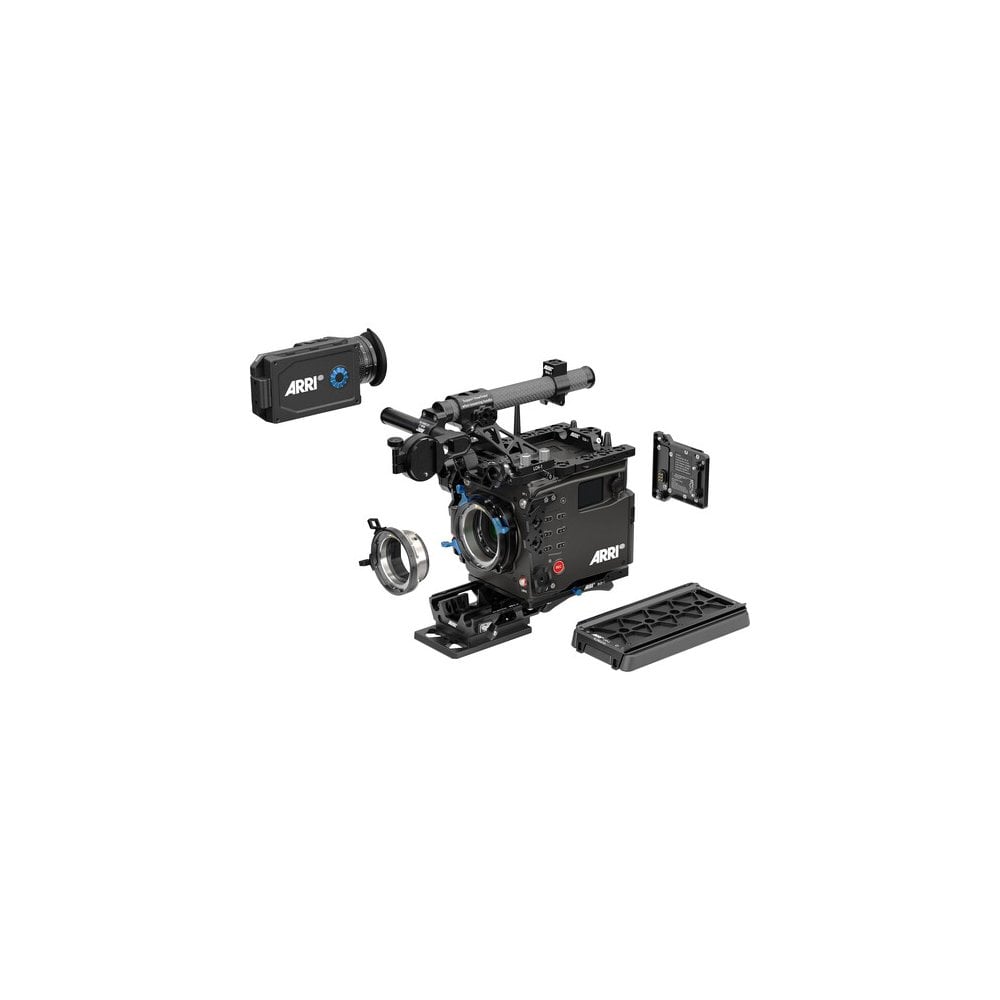

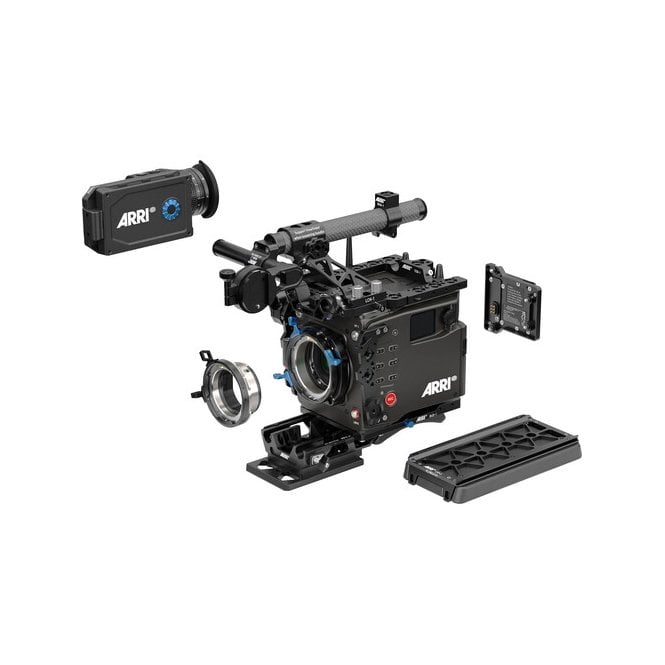

ARRI ALEXA 35 Lightweight Set

The ARRI ALEXA 35 is a compact Super35 digital cinema camera, engineered to elevate film production with its powerful new 4.6K 4:3 sensor, offering 2.5 additional stops of dynamic range, improved low-light performance, and more accurate color reproduction. With a dynamic range of 17 stops, the camera delivers 1.5 stops in highlights for a smooth roll-off and 1 stop in shadows for better low-light detail. These features make it perfect for HDR and backlit projects, providing greater flexibility in post-production tweaking.

Key Features:

• 4.6K Super35 ARRI ALEV 4 CMOS Sensor: This new sensor offers 17 stops of dynamic range, with an improved performance in both highlights and shadows.
• Multiple Video Recording Formats: Supports ARRIRAW and Apple ProRes recording in a variety of resolutions, aspect ratios, and data rates, including 4.6K, 4K, 3.3K, and 2.7K.
• Stray Light Suppression: Technology in both the camera and lens mounts ensures excellent contrast by minimizing unwanted reflections.
• High ISO Capability: With an EI of 160 to 6400, the ALEXA 35 has enhanced sensitivity for low-light scenarios, and an Enhanced Sensitivity Mode (EI 2560-6400) delivers noise-free images in dark environments.

REVEAL Color Science:

ARRI’s REVEAL Color Science redefines color reproduction, providing more accurate tones, improved skin tones, and a smoother grading process. The ACES-compatible AWG4 color space offers a gamut larger than Rec. 2020 for better color tracking and faster conversion. The camera uses a new Log-C 4 tonal curve to handle the extended 17-stop range, while new LUTs help optimize shadow tonality and color fidelity.

Versatile Lens Options:

The Lightweight Set includes an LBUS LPL mount and a PL-to-LPL adapter, making it compatible with a wide range of cine-style lenses. Additional adapters allow for the use of modern and vintage lenses in spherical, anamorphic, Super35, and large format.

Compact and Full-Featured:

Despite its small form factor (similar to the ALEXA Mini), the ALEXA 35 integrates a robust set of features, including independent SDI outputs, motorized ND filters, and both 12V and 24V accessory ports. Operators benefit from a new left-side display for quick settings changes, multiple audio options, and ethernet connectivity for real-time metadata streaming.

Accessories:

This set includes the MVF-2 Multi Viewfinder, lightweight support components, and a B-mount battery system capable of powering both 12V and 24V accessories. The PDM-1 Power Distribution Module and third-party battery adapters can be added for expanded power options.

The ALEXA 35 also integrates seamlessly into ARRI's ecosystem, working with apps like Camera Companion for remote control, ARRIRAW HDE Transcoder for post-production efficiency, and tools for color grading and metadata handling.

ARRI ALEXA 35 Camera Specifications:

The ARRI ALEXA 35 is a high-performance Super35-format digital cinema camera that raises the bar for image quality, dynamic range, and versatile lens compatibility. Below are the detailed specifications:

Key Features:

• Lens Mount:

  • ARRI LPL (default)
  • ARRI PL (with included adapter)

• Sensor:

  • Super35 CMOS

• Resolution:

  • Internal resolutions are not specifically mentioned by the manufacturer.

• ISO Range:

  • 160 to 6400 (with an optional Enhanced Sensitivity Mode between EI 2560-6400).

• Internal Recording Formats:

  • ARRIRAW: Up to 4608 x 3164, with frame rates ranging from 0.75 to 120 fps, depending on the resolution.
  • ProRes: Various modes, including ProRes 422 HQ, ProRes 4444, and ProRes 4444 XQ in 12-bit color depth.

• Built-in ND Filters:

  • Mechanical filter wheel with clear, 2-stop (1/4), 4-stop (1/16), 6-stop (1/64) filters.

• Dynamic Range:

  • 17 stops, offering excellent shadow detail and highlight roll-off, ideal for HDR projects.

• Shutter Speed:

  • 1/8000 to 1 second with Electronic Rolling Shutter.
  • Shutter Angle: 5° to 356° for flexibility in motion blur.

• Media/Memory Card:

  • Single slot for Codex Compact Drive.

Video and Audio I/O:

• Video I/O:

  • 1x BNC (12G-SDI) output
  • 1x BNC (12G-SDI) input/output

• Audio:

  • 1x LEMO 6-pin line input
  • 1x 3.5mm headphone jack
  • Embedded SDI audio

Recording Formats:

• Internal Recording:

  • ARRIRAW: Up to 4608 x 3164 at 0.75 to 75 fps.
  • ProRes: Up to 4608 x 3164 at 59.94 fps and lower resolutions with higher frame rates.

• External Recording:

  • Not supported.

Other Features:

• Wireless Connectivity:

  • Wi-Fi (802.11b/g) control, compatible with iOS and watchOS apps.

• Viewfinder:

  • Removable OLED electronic viewfinder with 1920 x 1080 resolution.

• Power Consumption:

  • 90W, with a LEMO 8-pin power input (20.5V to 33.6V).

• Build and Environmental:

  • Dimensions: 8 x 6 x 5.8 inches (203 x 152.5 x 147 mm).
  • Weight: 6.4 lbs (2.9 kg).
  • Operating Temperature: -20 to 45°C (-4 to 113°F).

Packaging:

• Package Weight: 26.7 lbs
• Box Dimensions: 24 x 20 x 18.5 inches

In the box;

1x ALEXA 35 camera body

1x Cine Licens

1x ARRI LPL Mount

1x PL-to-LPL Adapter

1x B-Mount Battery Adapter

1x Multi-Viewfinder (MVF-2)

1x Lightweight Support Set.
