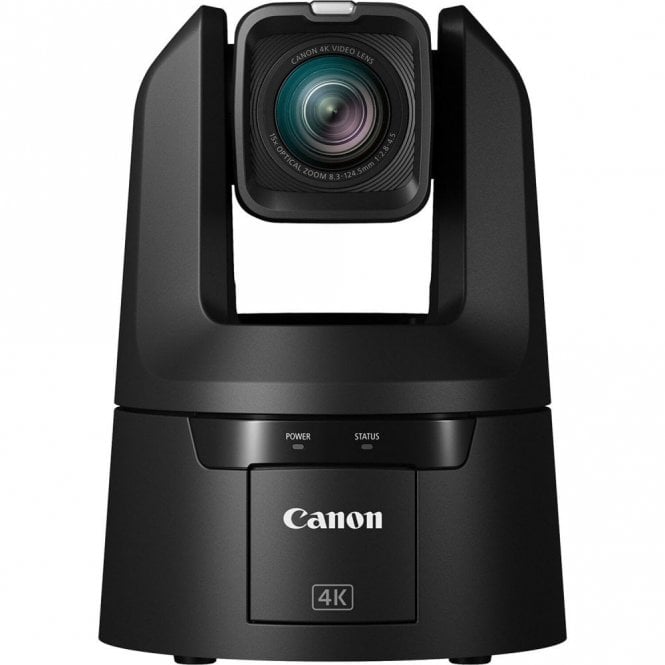

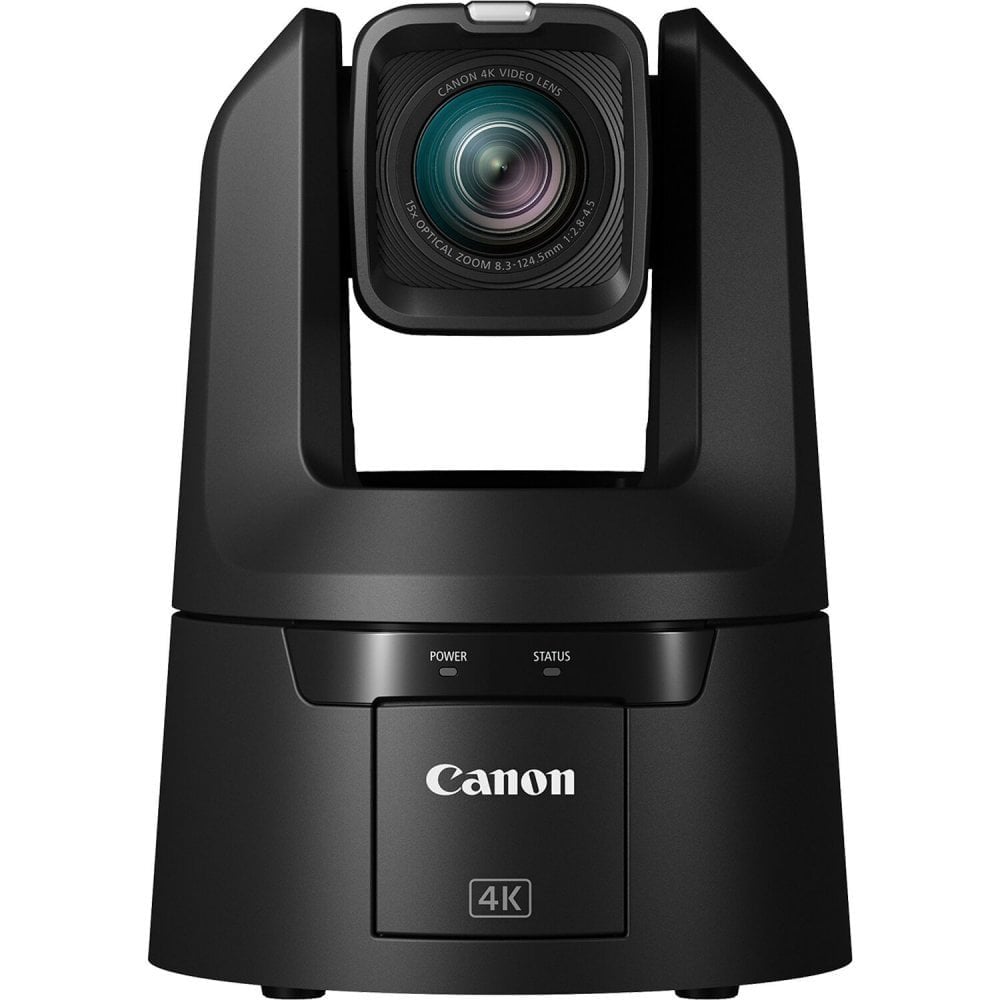

Canon CR-N700 4K PTZ Camera (Black) For Hire

Canon CR-N700 4K PTZ Camera (Black) - Model 6022C001

Unlock the potential of 4K broadcasting with the Canon CR-N700, a professional-grade PTZ camera equipped with a 1.0-type 4K sensor and DIGIC DV7 processor. Featuring Dual Pixel autofocus, a powerful 15x optical zoom (30x in Full HD), and Night Mode, this camera ensures crisp, detailed imagery, even in low-light conditions. Stream 4K60P and HDR-quality video seamlessly using a variety of IP protocols.

Key Features:

• 4K UHD 60P Quality: Capture stunning 4K footage with a 1.0-Type CMOS sensor and DIGIC DV7 processor, providing up to 4:2:2 10-bit broadcast-standard image quality via 12G-SDI, HDMI, or IP.

• Precision Optics: The high-performance lens offers 15x optical zoom (25.5mm - 382.5mm, 35mm equivalent) and up to 30x advanced zoom in Full HD. Canon's Image Stabilizer ensures clear, stable shots even in challenging conditions.

• Advanced Autofocus: Canon's proprietary Dual Pixel CMOS AF technology delivers fast and precise focusing with intelligent head and eye detection.

• Versatile IP Streaming: Supports multiple protocols like SRT, NDI|HX1, RTMP/RTMPS, and FreeD, ensuring seamless integration into various broadcasting environments, including virtual productions.

• HDR & Low Light Capabilities: Achieve rich HDR imagery with direct PQ or HLG format recording. Canon Log 3 and Wide Dynamic Range options allow for consistency with other Canon cameras, and Night Mode extends visibility in near-dark environments.

• Dual Video Feed: With the crop function, you can output two separate video feeds from a single camera by selecting and extracting points of interest in Full HD.

• Smooth Pan & Tilt: The CR-N700’s precise drive mechanism allows for ultra-slow pan and tilt movements (as slow as 0.1°/s), giving you full control over your shots.

Technical Specifications:

• Sensor: 1.0 in. CMOS sensor with approximately 8.29 megapixels (3840 x 2160 resolution)
• Zoom: 15x optical zoom (30x in Full HD), 20x digital zoom
• Focal Length: 8.3 – 124.5 mm, with an f/2.8 – 4.5 aperture
• Image Stabilization: Yes, for stable and clear footage in various conditions
• Shutter Speed: 1/3 – 1/2000 sec., depending on the frame rate
• ND Filter: Motorized with options of Off, 1/4, 1/16, and 1/64
• Night Mode: IR Mode extends the camera's visible spectrum for near-darkness capture
• White Balance: Auto, Presets, or Custom options available

Video Output Formats:

• SDI & HDMI: Supports 4K (3840 x 2160) at 59.94P, 50.00P, and other standard frame rates, with 4:2:2 10-bit color depth.
• IP Streaming: Multiple frame rates and resolutions available, including 4K at 59.94 fps or 50.00 fps (H.265).

Connectivity:

• 12G-SDI, HDMI, IP (PoE++): All supporting 4K60P video
• XLR Audio Inputs: Dual professional XLR inputs for enhanced audio control
• Genlock and Timecode: Integration options for professional synchronization in multi-camera setups
• Remote Control: Compatible with Canon’s RC-IP100 controller and various third-party systems

Physical & Power Specifications:

• Dimensions: 200 x 269 x 208 mm
• Weight: Approximately 4.4 kg (9.7 lbs)
• Power Supply: PoE++ or 12V DC external power, with power consumption around 37.4 W.

In the Box:

• Canon CR-N700 Camera
• Mounting Bracket with screws
• Safety Wire with screws
• Remote Control (WL-N01)
