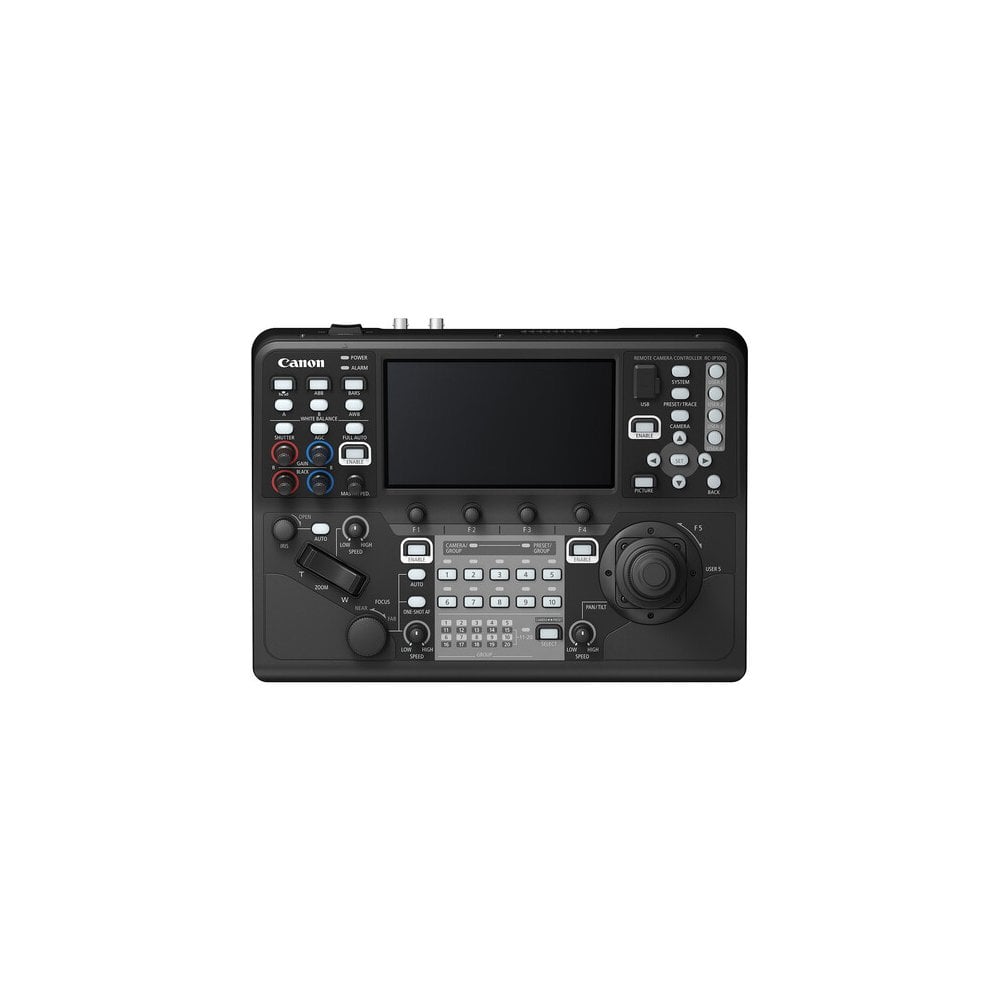

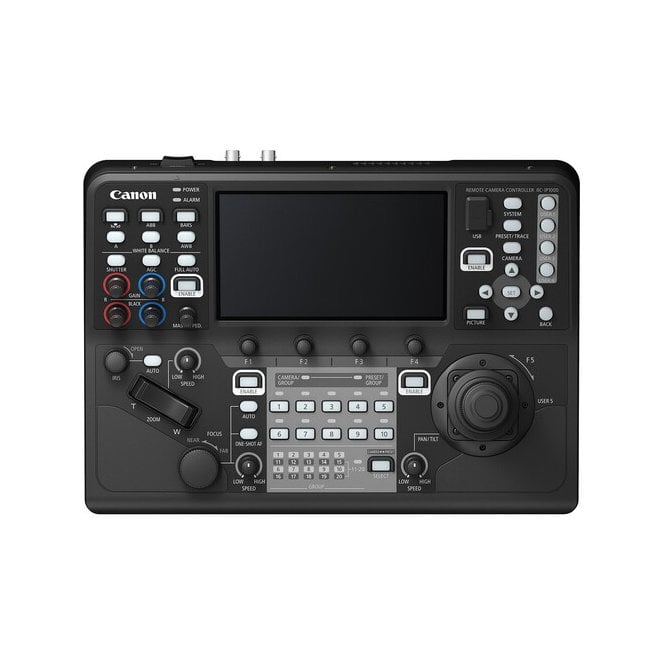

Canon RC-IP1000 Advanced PTZ Controller

Canon RC-IP1000 Advanced PTZ Controller

Control your Canon PTZ cameras with precision using the RC-IP1000 Advanced PTZ Controller, offering both IP and serial control. Designed for seamless operation with Canon PTZ cameras like the CR-N100, the RC-IP1000 enables a single operator to remotely control up to 200 cameras from one location. Its 7" touchscreen simplifies configuration, camera settings, and live viewing, allowing up to nine cameras to be viewed simultaneously on-screen.

This controller uses Canon's proprietary XC IP protocol for secure network control via LAN, and a second RJ45 port allows RS-422 serial protocol control. The RC-IP1000 supports up to 4K60 video input/output through 12G-SDI ports and HDMI output for seamless integration with switchers or additional displays. Tally support is also included to relay tally light information between cameras and the controller.

The unit features various accessible controls, such as buttons, dials, LEDs, a joystick, and a zoom rocker, ensuring swift access to settings. It can be powered by an adapter or via PoE+ for power, control, and data over a single cable.

Key Features:

• Full remote camera control for smooth PTZ movements, ideal for high-end productions like live broadcasts, corporate events, and more.
• 7" touchscreen for viewing live feeds and accessing camera controls.
• Touch AF functionality for selecting and changing focus points with ease.
• Customizable buttons and dials for quick access to frequently used functions.
• Allows simultaneous control of multiple cameras, including pan, tilt, zoom, and camera settings.
• Control lever and zoom rocker with adjustable responsiveness for precision control.
• 4K60 video input/output via 12G-SDI, with HDMI output for high-resolution IP video inputs.
• Manage up to 200 Canon cameras for large setups.
• View and control camera OSD menus directly from the touch panel.
• Multi-preset function to quickly move multiple cameras to preset positions.
• Supports Canon's XC Protocol (IP control) and NU Protocol (serial control) for camera management.
• Power via 4-pin XLR (12 VDC) or PoE+ for streamlined operation.
• Additional support for fine-tuning via add-on applications.
• SDI/GPIO switcher link compatibility for video switching and tally light synchronization.

This controller is perfect for complex video productions, offering flexibility and precision across multiple cameras, with high-end functionality and ease of use.

Supported Cameras:

• Up to 200 cameras via IP (10 cameras per group)

Control I/O:

• 1x RJ45 (IP control) output
• 5x RJ45 (RS-422) outputs

Video I/O:

• 1x BNC (12G-SDI) input
• 1x BNC (12G-SDI) output
• 1x HDMI output

Controls:

• 1x Pan/Tilt joystick
• 1x Zoom rocker
• 4x Programmable knobs
• 13x Multifunction buttons
• 10x Camera selection buttons

Touchscreen:

• Yes, with 7" display, 800 x 480 resolution

PoE Support:

• PoE+ 802.3at

Security Lock Support:

• No

General Specifications:

Supported Control Protocols:

• Canon XC
• NU
• RS-422

Other I/O:

• 1x D-Sub 25-Pin (GPI, Tally) input
• 1x D-Sub 25-Pin (GPI, Tally) output
• 2x USB-A (3.0 / 3.1/3.2 Gen 1) inputs

Presets:

• 100 via IP

Power:

• PoE Support: PoE+ 802.3at
• Power Connector: 1x XLR 4-Pin
• Input Power: 12 VDC

Physical Specifications:

• Operating Conditions: 32 to 72°F / 0 to 40°C
• Dimensions: 13.5 x 9.6 x 5.7" / 342 x 245 x 145 mm
• Weight: 7.7 lb / 3.5 kg

Packaging Information:

• Package Weight: 11 lb
• Box Dimensions: 18.4 x 14.8 x 12.8"

In the box;

1x Canon RC-IP1000 Advanced PTZ Controller
