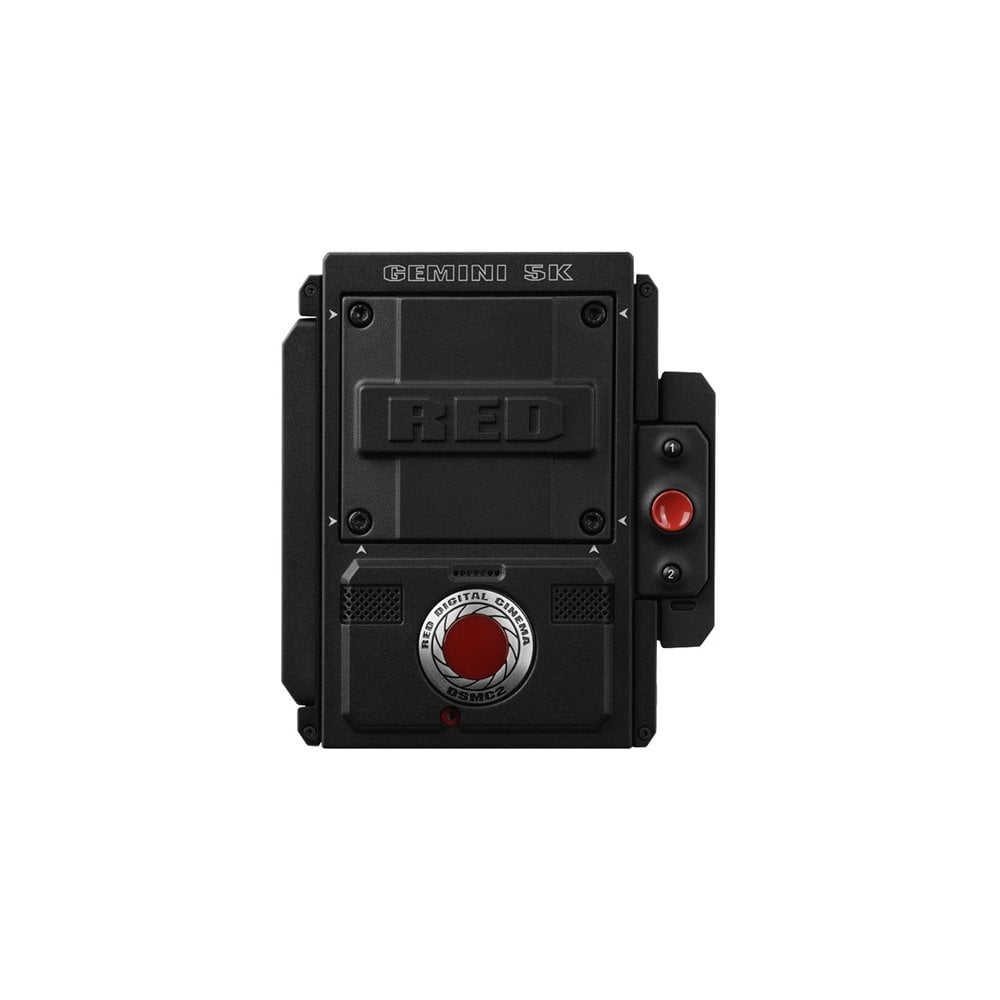

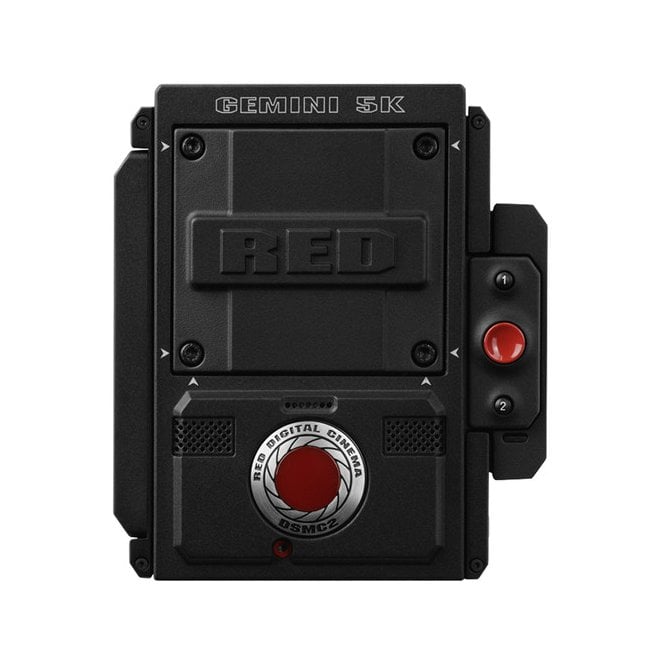

RED DIGITAL CINEMA DSMC2 BRAIN with GEMINI 5K S35 Sensor (2018 Unified DSMC2 Lineup)

RED DIGITAL CINEMA DSMC2 BRAIN with GEMINI 5K S35 Sensor (2018 Unified DSMC2 Lineup)

The RED DIGITAL CINEMA DSMC2 BRAIN with GEMINI 5K S35 Sensor is a compact, high-performance camera designed for modular customization within the DSMC2 lineup. Ideal for productions that demand versatility, it supports accessories from RED and other manufacturers, making it adaptable for diverse filmmaking setups. The GEMINI 5K Super35 sensor offers dual native sensitivity modes—Standard for general conditions and Low Light for enhanced sensitivity in dim environments, while retaining highlight detail and minimizing noise.

Key Features

GEMINI 5K Super35 Sensor

• Resolution: 5K (5120 x 3000)
• Dual Sensitivity Modes: Standard for regular lighting, Low Light mode for enhanced sensitivity
• Frame Rates: 12 fps and up, including 24/25/30/48/50/60 fps and higher

REDCODE RAW

• Format: REDCODE RAW wavelet compression from 2:1 to 22:1
• Resolution & Frame Rates:5K and 4K at various REDCODE ratios:
  • 5K Full Height (5120 x 3000): 3:1 REDCODE at 24 fps, 6:1 at 60 fps
  • 5K Full Format (5120 x 2700): 2:1 REDCODE at 24 fps, 8:1 at 96 fps
  • 4K Full Format (4096 x 2160): 2:1 REDCODE at 24 fps, 6:1 at 120 fps
• Compatibility: Editable in popular NLEs like Adobe Premiere Pro, DaVinci Resolve, Final Cut Pro, and Avid Media Composer without transcoding

Apple ProRes and Avid DNx Formats

• Proxy Recording: Records ProRes or DNx in 4K or 2K alongside REDCODE RAW for quick editing
• Workflow Efficiency: No need to transcode proxies—debayered files can be imported directly into NLEs

Modular DSMC2 Form Factor

• Customization: Compatible with RED DSMC2 modules and accessories for flexibility in workflow
• Interchangeable Lens Mounts: Supports various lens systems with optional DSMC lens mounts
• Optional Components: Expand I/O, battery power, and swap OLPFs or mount EVFs for different setups

Color Management

• 3D LUT Support: Accepts 33x33x33, 32x32x32, 26x26x26, and 17x17x17 3D LUTs
• LUT Outputs: Adjustable with DSMC2 expander module, including user-programmable 1D LUTs
• Processing: 16-bit processing with tetrahedral interpolation for enhanced color fidelity

Key Specifications for the RED DIGITAL CINEMA DSMC2 BRAIN with GEMINI 5K S35 Sensor

Sensor & Image

• Sensor Resolution: Effective 15.36 Megapixels (5120 x 3000)
• Image Sensor: 30.72 x 18 mm (Super35) CMOS
• Advertised Dynamic Range: 16.5 Stops
• Sensor Crop Modes: Super35 / APS-C
• Built-In ND Filter: No

Internal Recording Modes

• REDCODE RAW:
  • 5120 x 3000 up to 75 fps (300 Mb/s)
  • 5120 x 2700 up to 96 fps (300 Mb/s)
  • 4096 x 2160 up to 120 fps (300 Mb/s)
  • 3072 x 1620 up to 150 fps (300 Mb/s)
  • 2048 x 1080 up to 240 fps (300 Mb/s)
• ProRes 422:
  • 4096 x 2160 up to 29.97 fps
  • 2048 x 1080 up to 120 fps
• ProRes 422 HQ, 422LT, 4444, 4444XQ:
  • 2048 x 1080 up to 120 fps

Capture Options

• Stills & Video Capture
• Aspect Ratios Supported: 4:3, 16:9
• Image File Format: JPEG

Media & Storage

• Memory Card Slot: Single Slot for RED MINI-MAG

Video I/O

• Broadcast Output: NTSC
• Video I/O: No

Audio I/O

• Built-In Microphone: Stereo
• Additional Audio I/O: No

Power

• Power Consumption: 50 W
• Battery Mounting: Not included in base package (optional DSMC2 battery module required)

Connectivity & Control

• Wireless: No
• Mobile App Compatibility: No
• Global Positioning: Not available

Environmental & Physical

• Operating Temperature: 32 to 104°F / 0 to 40°C
• Storage Temperature: -4 to 122°F / -20 to 50°C
• Operating Humidity: 0 to 85%
• Material of Construction: Aluminum

Mounting

• Tripod Mount: 1/4"-20 and 3/8"-16 female threads
• Accessory Mounting Threads: 17x 1/4"-20

Dimensions & Weight

• Dimensions (W x H x D): 5.66 x 4.9 x 3.7 inches / 143.85 x 125.5 x 95 mm
• Weight: 3.4 lb / 1.54 kg

Packaging Information

• Package Weight: 7.5 lb
• Box Dimensions (L x W x H): 17 x 15 x 11 inches

Additional Features

• Netflix Approved: Yes

In the Box

• RED DIGITAL CINEMA DSMC2 BRAIN with GEMINI 5K S35 Sensor (2018 Unified DSMC2 Lineup)
• RED DIGITAL CINEMA DSMC2 Standard Optical Low-Pass Filter
• RED DIGITAL CINEMA DSMC Front Body Cap
• Power Supply
