Arri Hi-5 Hand Unit Basic Set

ARRI Hi-5 Hand Unit Basic Set

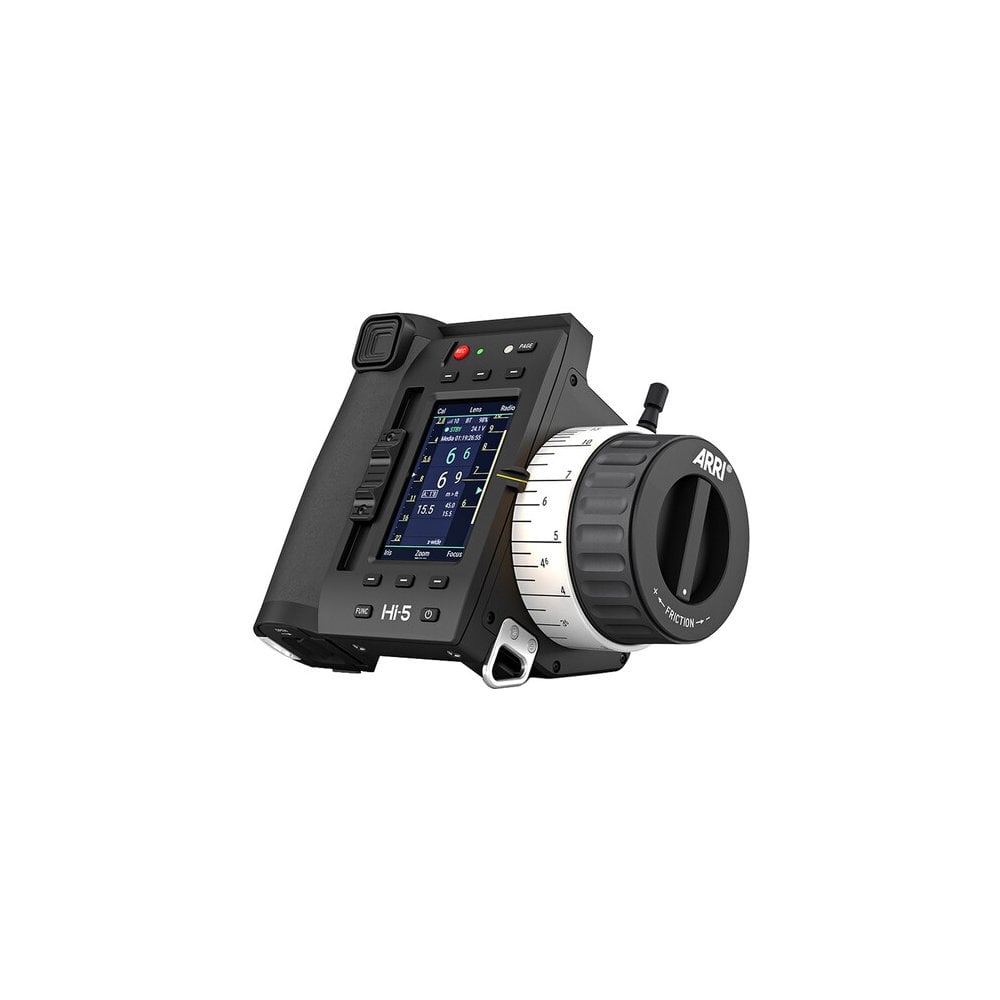

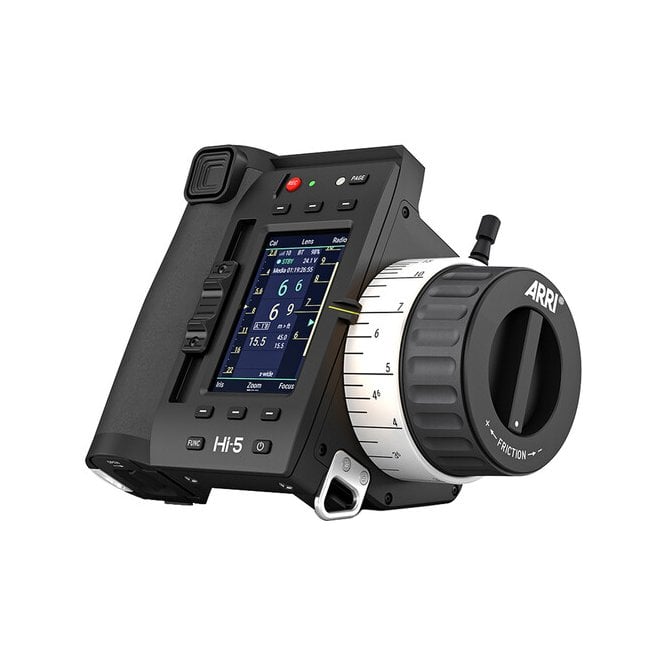

The ARRI Hi-5 Hand Unit Basic Set is a highly advanced, modular, and customizable wireless camera and lens control system, ideal for professional use with the ALEXA series and other compatible cameras. Its robust feature set includes:

1. Multi-Axis Control: Provides advanced wireless control with a large, customizable focus knob and user-defined function buttons for precise camera and lens adjustments.

2. Connectivity: Equipped with 2400 MHz RF-EMIP Radio Module, supporting 14 channels and backward compatibility with white-coded EMIP modules. Optional radio modules make it adaptable across regions, and LBUS ports provide hardwiring options for ARRI camera lens control.

3. Compatibility: Designed for ARRI ALEXA Mini LF, LF, Mini, SXT W, and 65 cameras, as well as UMC-4 and RIA-1/RF-EMIP control units. Also compatible with Focusbug Cine RT and cforce mini RF (via RF-EMIP module).

4. Flexible Licensing: Supports optional control licenses for RED, Panavision, and Sony cameras, making it versatile across different production needs.

5. User-Friendly Interface: Features a high-contrast touchscreen LCD and customizable focus rings, with optional pre-marked Smart rings for electronic detection.

6. Rugged, Weatherproof Design: Engineered for all weather conditions, and includes hot-swappable LBP-3500 batteries for uninterrupted power during long shoots.

Display

• Panel Type: TFT LCD
• Display Size: 3"

USB I/O

• 1 x USB-A Female Input/Output
• 1 x USB-C Female Input/Output

Battery

• Battery Chemistry: Lithium-Ion
• Battery Capacity: 3500 mAh

Power

• DC Input Power: 10.5 to 34 VDC
• Operating Current: 222 mA, 270 mA, 370 mA

Environmental

• Certifications: ICES-3(A), EU, FCC-A
• Operating Temperature: 12 to 82°F / -20 to 50°C

Physical

• Mounting: 1x NATO Rail
• Dimensions: 6.7 x 5.3 x 4.1" (169 x 135.6 x 104.4 mm) without Radio Module & Antenna
• Weight: 1.8 lb (830 g), including Dongle & Focus Ring

Packaging Info

• Package Weight: 8.46 lb
• Box Dimensions (LxWxH): 16.5 x 12.8 x 12.2"

In the box:

1x ARRI Hi-5 Hand Unit Basic Set
