Arri LCUBE CUB-1 LBUS to Serial Converter with Bracket

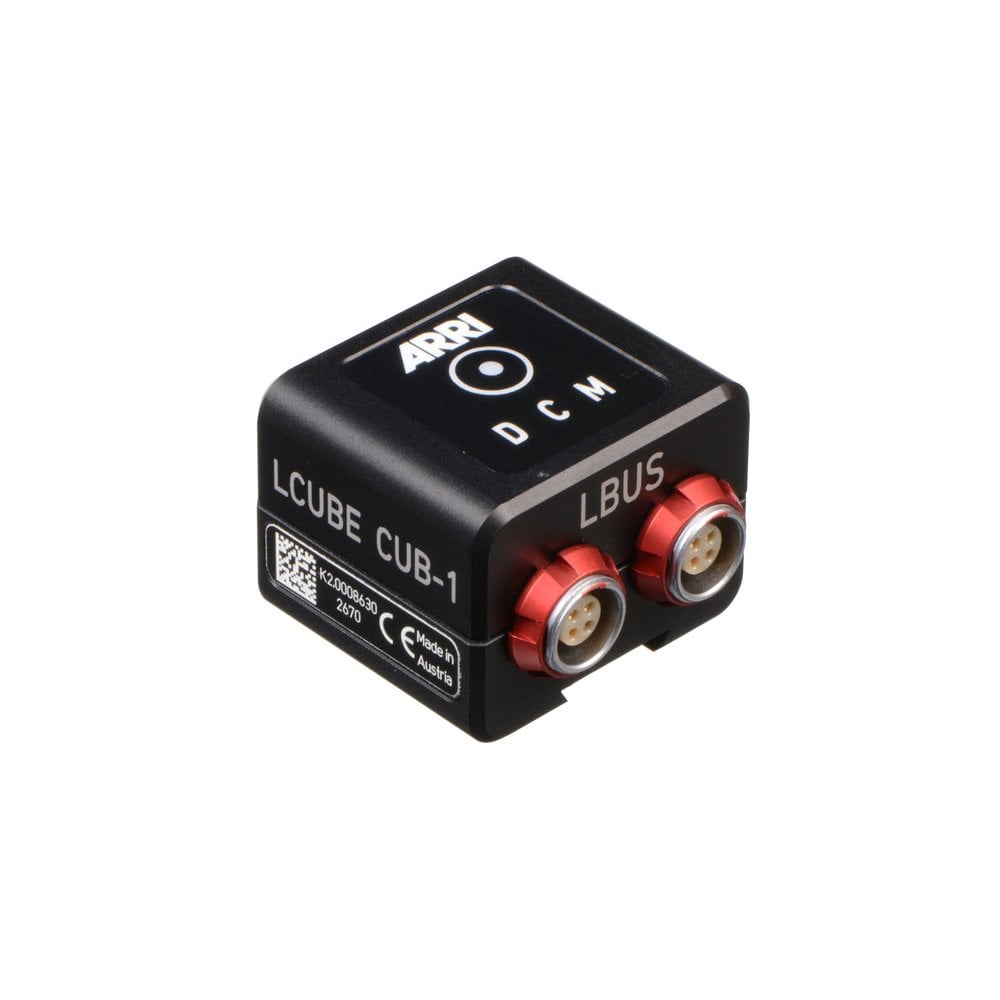

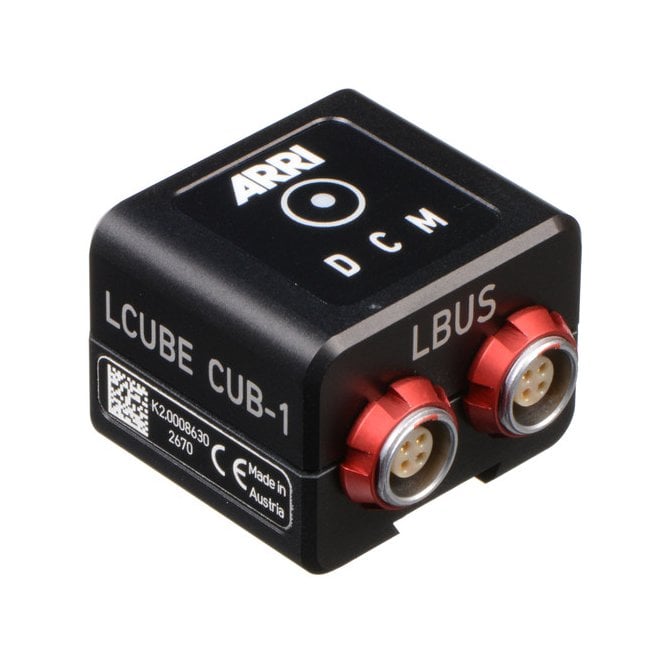

ARRI LCUBE CUB-1 LBUS to Serial Converter with Bracket

The ARRI LCUBE CUB-1 Serial Converter is a versatile tool designed to bridge LBUS and serial protocols (RS232, RS485, RS422), enhancing compatibility across ARRI and 3rd-party camera setups. This compact converter allows seamless integration of ARRI accessories, such as Master Grips, with various cameras and supports advanced functionalities like distance measurement.

Key Features

• Protocol Conversion: Converts LBUS to serial protocols (RS232, RS485, RS422) and vice versa.
• Enhanced Compatibility:Daisy-Chainable: Can be daisy-chained via LBUS for expanded setups.
  • Enables ARRI Master Grips to control select 3rd-party cameras.
  • Supports integration of distance-measuring devices with ARRI cameras like the ALEXA Mini.
• Compact and Lightweight: Ideal for streamlined setups, maintaining a low-profile design.
• LED Status Indicator: Features a vari-colored LED for clear feedback on operational status.
• Quick-Release Mounting: Includes a quick-release bracket with a 3/8"-16 screw for secure and easy mounting.

Compatibility

• Distance-Measuring Devices:
  • ARRI UDM-1 Ultrasonic Distance Measure
  • Cinematography Electronics CTM Cine Tape Measure
• Cameras:
  • ARRI ALEXA Mini: Enables integration with UDM-1 for distance measuring.
  • Sony F5/F55: Provides REC start/stop functionality.
  • RED Epic/Dragon: Supports REC start/stop and user button operations.

Additional Notes

• LBUS Cable: Not included; must be purchased separately for connection.
• Applications:
  • Distance measuring in professional cinematography.
  • Extending ARRI ECS (Electronic Control System) compatibility to 3rd-party cameras.
  • Enhancing workflow with advanced camera control accessories.

Technical Specifications:

• Serial Interfaces: RS232, RS422, RS485
• Connectors:Supply Voltage: 12 to 34 V
  • 2 x 4-pin LBUS
  • 1 x 7-pin Serial
• Current Consumption: 18 mA @ 24 V
• Operating Temperature Range: -4 to 122°F (-20 to 50°C)

Physical Dimensions

• CUB-1 Dimensions: 1.3 x 1.5 x 0.9" (32 x 37.3 x 24 mm)
• Weight:
  • CUB-1: 1.66 oz (47 g)
  • LCUBE Bracket: 0.46 oz (13 g)

Packaging Information

• Package Weight: 0.405 lb
• Box Dimensions (LxWxH): 6.95 x 5 x 2.6"

In the box:

1x ARRI LCUBE CUB-1 LBUS to Serial Converter with Bracket
