Arri SXU-1 Single Axis Unit

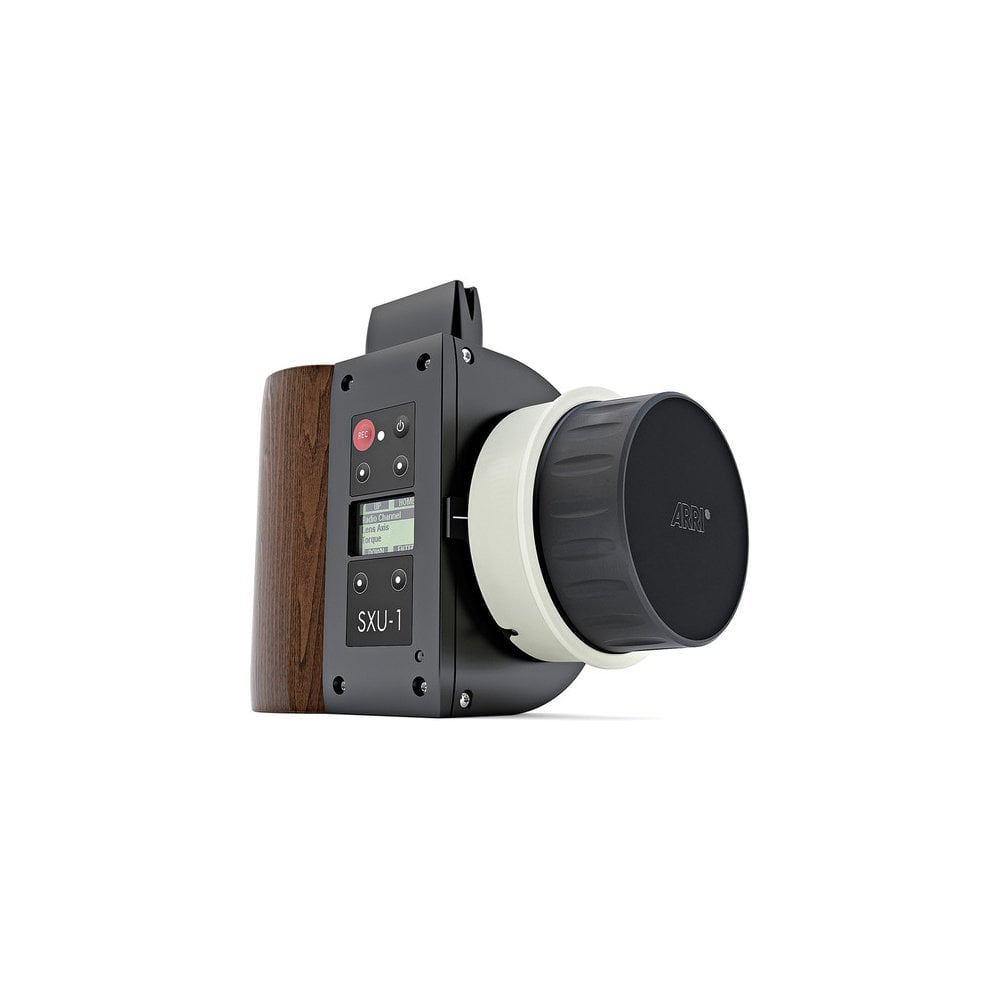

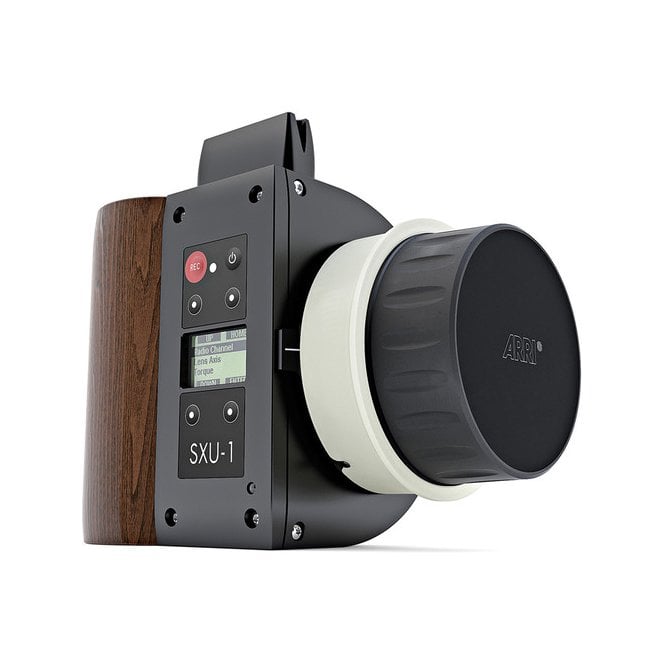

ARRI SXU-1 Single Axis Unit

The ARRI SXU-1 is a wireless hand unit designed for single-axis control of focus, iris, or zoom functions. Compact and user-friendly, it features remote camera start/stop capabilities, a tally indicator, an ergonomic wooden handgrip, and a backlit, ultra-smooth control knob for precise operation.

To ensure visibility in any lighting condition, the SXU-1 is equipped with a backlit display window that remains clear even in bright sunlight, while the internally lit control knob ensures readability in low-light environments. The unit comes with one marking disk and a lanyard for convenience. Note that the required battery and charger are sold separately.

Key Features

• Single-axis lens control for focus, iris, or zoom
• Backlit control knob and display window for visibility in all lighting conditions
• Remote camera start/stop and tally functionality
• Compatible with the WCU-4 and SMC-1 single-motor controller (available separately)
• Compact, ergonomic design with a wooden handgrip
• Includes one marking disk and a lanyard

ARRI SXU-1 Specifications

Software Update:

• Upgradable via SD card

Encoder:

• 16-bit precision

Power Supply:

• Compatible with Sony-type NP-FM500H battery (sold separately)
• Compatible with Sony-type BC-QM1 battery charger (sold separately)
• Power can also be supplied via LCS cable through ARRI cameras or the HPS-1 unit

Operating Temperature:

• -4 to 122°F (-20 to 50°C)

Dimensions:

• Knob Diameter: 3" (76 mm)
• LCD Display: 1.2" (31 mm, diagonal)

Weight:

• Including battery: 1.5 lb (700 g)

Packaging Info:

• Package Weight: 2.5 lb
• Box Dimensions (LxWxH): 12.9 x 9 x 5.1 inches

In the box:

1x ARRI SXU-1 Single Axis Unit
