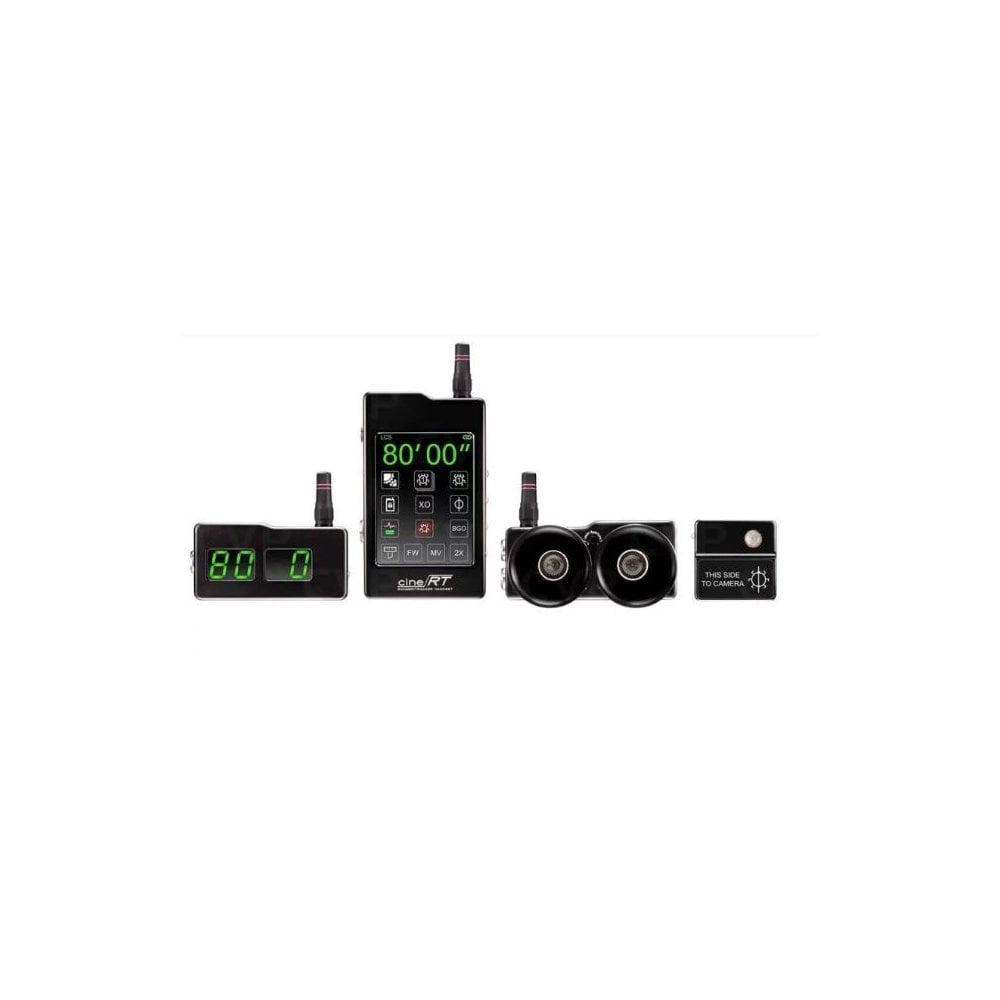

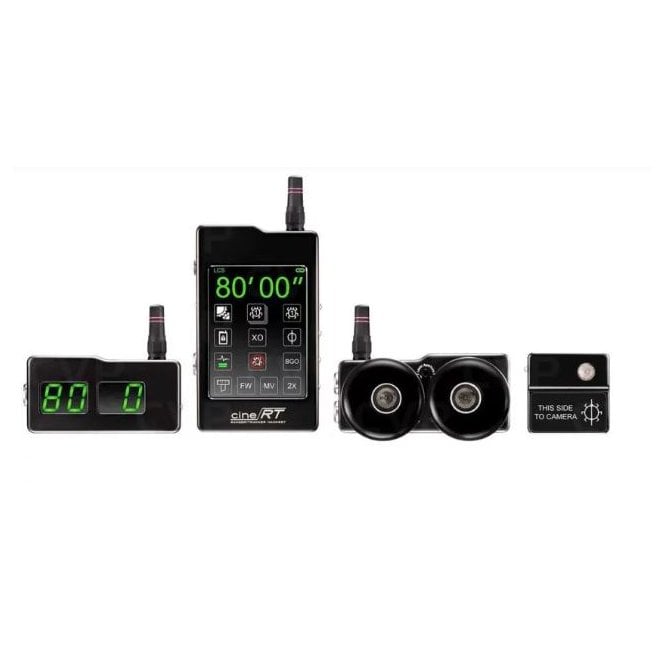

FocusBug Cine RT System Package Inc UBS-100

FocusBug Cine RT System Package Inc UBS-100

Ultrasonic Base Sensor UBS-100

• Compact & Versatile Design: Combines all on-camera systems into one unit for streamlined use.
• Wide Field of View:
  • RANGER Mode: Up to 35 feet range.
  • BUG & HANDSET Modes: Up to 120 feet range.
• Advanced Targeting Features:
  • LIMITS & LOCKOUT: Eliminate unwanted targets and reflections for precise focus.
  • Class 3R Laser: Provides pinpoint targeting.
• Synchronization: Compatible with other CINE RT systems for seamless integration.
• Self-Regulating Thermostat: Ensures accurate distance calibration in varying conditions.

Handset Control Unit HCU-100

• Remote Control: Operates the CINE RT system via a robust RF link with an 800-foot range.
• Advanced Features:
  • LIMITS & LOCKOUT: Refine target acquisition.
  • SONIC ANALYZER: Displays real-time room reflections for optimized focus.
• Dual Target Monitoring: Simultaneously track two targets.
• Ultrasonic Tape Measure: Integrated for quick, accurate measurements.
• Convenient Tools:
  • MARKS VIEW: Collect and manipulate focus marks with ease.
  • FOCUS WHISPER: For silent mark adjustments.

Additional Components

• Bug Miniature Ultrasonic Transmitter:

  • Lightweight and easily concealable for discreet placement.

• High-Bright LED Display:

  • Bright, clear readout with adjustable brightness.
  • Long-range RF communication with the UBS-100 for reliable data transmission.

Ultrasonic Base Sensor UBS-100

• Dimensions: 9.3 cm x 9.2 cm x 4.0 cm (3.7 in x 3.6 in x 1.6 in, without antenna)
• Weight: 170 g (6 oz)
• Power: 9 - 30V DC
• RF: Ultra-low power, 2.4 GHz ISM band
• Construction: Milled aluminum and Delrin (horns)
• Ultrasonic Frequency: 40 kHz
• Ultrasonic Sampling Rate: 1 MHz
• Rangefinder Range: 1 ft - 35+ ft (0.3 - 10.6+ m)
• Connectors:
  • Power: 2-pin LEMO (ARRI Standard)
  • Serial: 6-pin LEMO

Handset Control Unit HCU-100

• Dimensions: 10.5 cm x 6.2 cm x 2.5 cm (4.1 in x 2.5 in x 1 in, without antenna)
• Weight: 189 g (6.7 oz)
• Power: 7 - 20V DC
• RF: Ultra-low power, 2.4 GHz ISM band
• Construction: Milled aluminum
• Ultrasonic Frequency: 40 kHz
• Handset Tape Range: 1 ft - 120 ft (0.3 - 36.5 m)
• Connectors:LCD Display: 3.2 in (8.1 cm) Resistive Touch TFT LCD
  • Power: 2-pin LEMO (ARRI Standard)
  • Audio: 1/8 in stereo headphone jack

Bug Miniature Ultrasonic Transmitter BUG-100

• Dimensions: 4.0 cm x 4.0 cm x 1.0 cm (1.6 in x 1.6 in x 0.4 in)
• Weight: 19.1 g (0.7 oz)
• Charge Power: 5V DC (USB)
• RF: 2.4 GHz ISM band (receive only)
• Construction: Milled ABS thermoplastic
• Ultrasonic Frequency: 40 kHz
• Bug Range (Recommended): 1 ft - 120 ft (0.3 - 36.5 m)
• Connectors: USB Mini B (Charge Power)

High-Bright LED Display HBD-100

• Dimensions: 7.3 cm x 3.8 cm x 2.4 cm (without antenna)
• Weight: 110 g
• Power: 7 - 20V DC
• RF: 2.4 GHz ISM band (receive only)
• Construction: Milled aluminum and acrylic (screen)
• Connectors: 2-pin LEMO DC power (ARRI Standard)

In the box:

• 1 x Ultrasonic Base Sensor UBS-100
• 1 x Handset Control Unit HCU-100
• 1 x High-Bright LED Display HBD-100
• 1 x Bug Miniature Ultrasonic Transmitter BUG-100
• 1 x AC Wall Charging Unit
• 1 x USB Charging Cable
• 3 x Cine RT Mounting Blocks
• 1 x Spare Antenna
• 4 x Spare Mounting Block Screws
• 1 x Pelican 1200 Case
