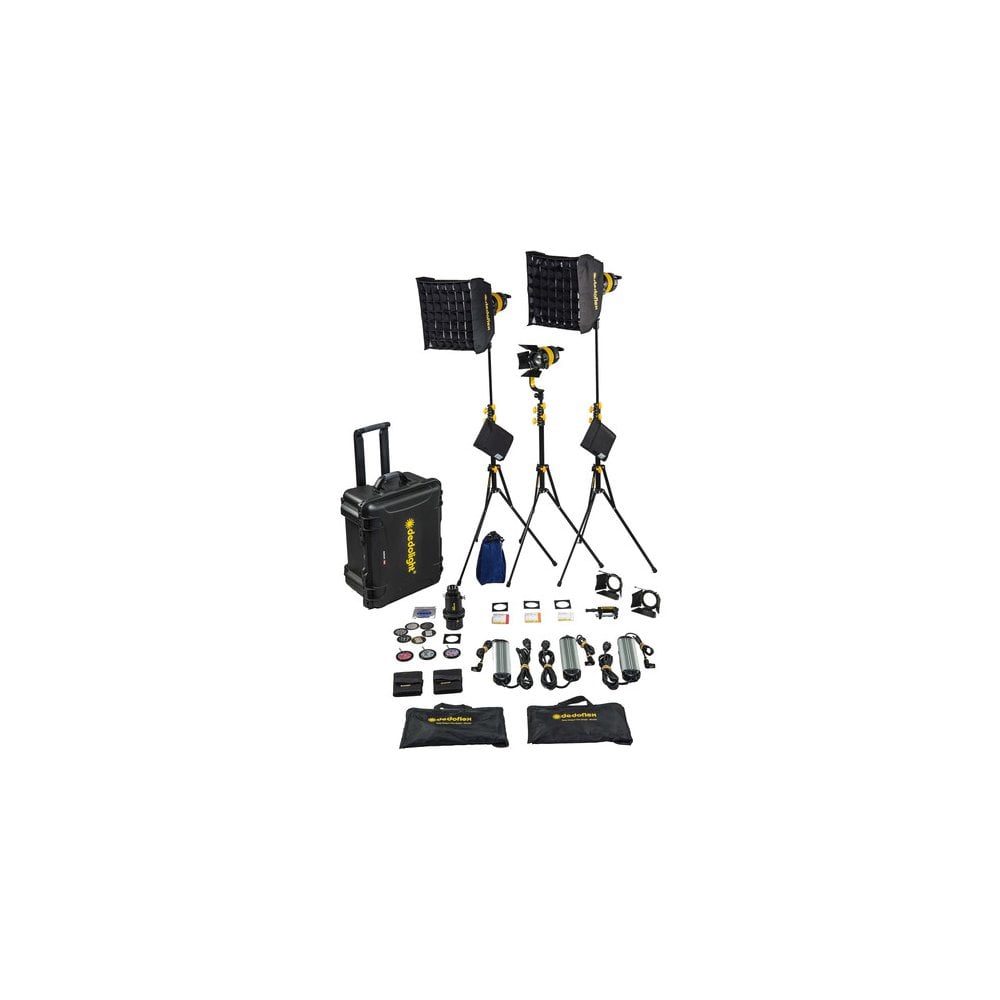

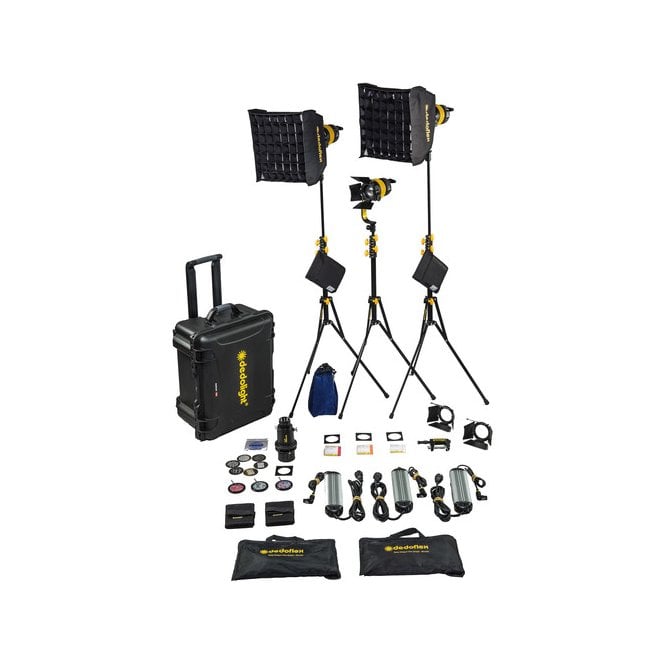

Dedolight DLED7 Turbo LED 3-Light Bi-Color Kit

Dedolight DLED7 Turbo LED 3-Light Bi-Color Kit

The Dedolight DLED7 Turbo LED 3-Light Bi-Color Kit is an all-encompassing, versatile lighting kit suitable for diverse creative applications. With three DLED7 Turbo LED heads and a variety of accessories, it’s designed to offer control, flexibility, and a broad spectrum of lighting effects.

Key Components

1. DLED7 Turbo Bi-Color Focusing LED Light Head

   • Bi-Color: Adjustable color temperature from 2700K to 6500K, allowing adaptation to mixed and changing lighting.
   • Spot-to-Flood Focusing: Covers an 8° to 60° range with a double helical focusing mechanism.
   • Photometrics at 5600K:
     • Flood (8°): 2150 lux at 1m, 86 lux at 5m
     • Medium: 3757 lux at 1m, 150 lux at 5m
     • Spot (60°): 15,400 lux at 1m, 616 lux at 5m
   • Mounting: 5/8" receptacle and 1-1/8" stud for versatile mounting options.

2. DT7-BI AC Ballast

   • Supports dimming and color tuning.
   • Universal voltage range (90-264 VAC) with a digital display for easy control.

Lighting Modifiers and Accessories

• 8-Leaf Barndoors with Gel Clips: Precise light control with small helper leaves and gel clip holders for flexible diffusion and color correction.
• Mini Softboxes with 40° Fabric Grids: Each 12 x 12" softbox includes a grid to narrow light spread and achieve softer light with directional control.
• Projection Attachment with 85mm f/2.8 Lens: Allows for focused light effects, with a spring-loaded slot for gobos, slides, and optional iris attachments.

Filtration and Color Control

• Gobo Holder with Six Gobos: M-size holder for creating shadow patterns.
• Gel Filter Holders & Sets:
  • Warm Tone Filter Set (24 Pieces): Includes amber and straw filters for warm tones.
  • Diffusion Filter Set (20 Pieces): Frost, silk, and white diffusion options for light softening.
  • Color Filter Set (36 Pieces): Medium Yellow, Daylight Blue, Salmon Pink, and other vibrant colors.

Additional Accessories

• Accessory Pouches: Keep filters, gobos, and other small accessories organized.
• Clamp: Securely attaches lights to stands, pipes, or shelves, with a pivoting 5/8" stud.
• Three 7' Light Stands: Compact, lightweight aluminum stands that fold down to 19".

Storage

• Hard Case with Wheels: Durable, travel-friendly storage with wheels and a handle for easy transport.

Light Fixture

• Item Type: LED Focusing Flood Light
• Color Temperature: 2700 to 6500K (Bi-Color)
• Color Accuracy: CRI 97
• Photometrics (at 5600K):Beam Angle: 6 to 60°
  • Flood (60°):
    • 2600 lux (242 fc) at 1 m
    • 650 lux (60 fc) at 2 m
    • 289 lux (27 fc) at 3 m
  • Spot (6°):
    • 21,000 lux (1951 fc) at 1 m
    • 5250 lux (488 fc) at 2 m
    • 2333 lux (217 fc) at 3 m
• Power Source: AC to DC Adapter or Battery (not included)
• Power Consumption: 90 W
• Cooling: Fan-cooled
• Mounting: 5/8" Receiver (via Yoke Mount)
• Dimensions: 6.3 x 5.4" (16 x 14 cm)
• Weight: 2.9 lb (1.3 kg)

Power Supply (Dedolight DT7-BI AC Ballast)

• Input Power: 90 to 264 VAC, 50 / 60 Hz
• Dimming and Color Tuning: Supports both functions with a digital display

Light Modifiers

• 8-Leaf Barndoors: Includes gel clips and helper leaves for refined light control
• Softbox (12 x 12"): Silver interior, requires speed ring for DLED4/DLED7 lights
• Projection Attachment: Includes 85mm f/2.8 lens for creating soft or hard edges; accepts optional gobos and slide holders

Filtration

• Gel Filter Sets:
  • Warm Tone Filter Set: Includes colors like Dark Bastard Amber and Golden Amber
  • Diffusion Filter Set: Includes options such as Tough Frost and Powder Frost
  • Color Filter Set: 36 colors including Medium Yellow, Daylight Blue, and Deep Pink

Stand and Clamp

• Light Stand:Clamp: Pipe clamp, 1.88" clamping range, black color, weighs 4 oz (113 g)
  • Type: General Purpose Stand
  • Max Height: 7' (2.1 m)
  • Min Height: 21" (53.3 cm)
  • Load Capacity: 3 lb (1.4 kg)
  • Closed Length: 19" (48.3 cm)
  • Weight: 2.1 lb (0.9 kg)

Packaging Information

• Light Fixture Box Dimensions: 13.25 x 11.8 x 5.35"
• Softbox Packaging: 15.906 x 6.378 x 2.598"
• General Kit Package Weight: Ranges from 0.02 lb for smaller items to 3.475 lb for larger components

In the box:

1x Dedolight DLED7 Turbo LED 3-Light Bi-Color Kit
