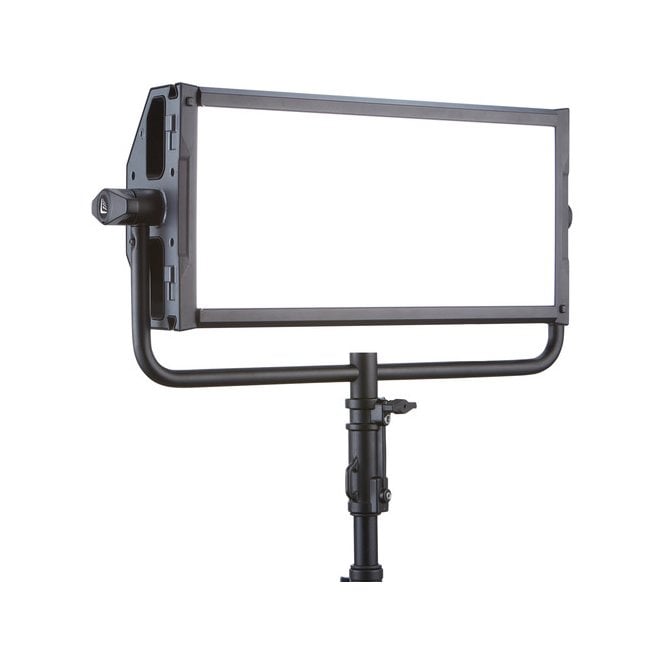

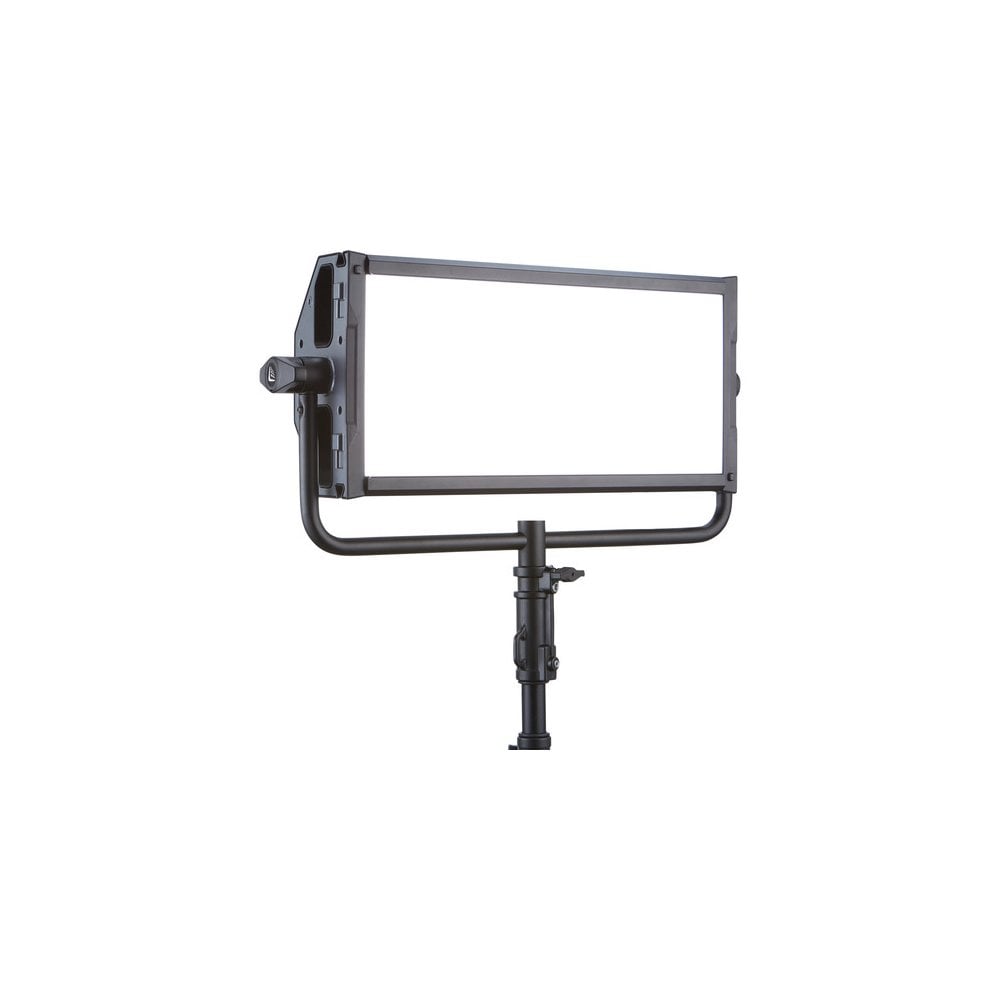

Litepanels Gemini 2x1 Soft RGB LED Light Panel (Standard Yoke, US Power Cord)

Litepanels Gemini 2x1 Soft RGB LED Light Panel

The Litepanels Gemini 2x1 Soft RGB LED Light Panel is a versatile, durable lighting solution designed for professional filmmakers and photographers. Built with an aluminum frame, this 25 x 6.5 x 12.5" panel offers advanced features, precise control, and a wide range of creative lighting options.

Key Features

Lighting Modes

1. CCT Mode:

   • Adjustable bi-color operation from 2700 to 10,000K.
   • Includes plus/minus green adjustment for fine-tuned color balance.
   • Six factory presets for common temperatures and six user-defined presets.

2. HSI Mode:

   • Full control over Hue, Saturation, and Intensity for creative lighting.

3. Gel Mode:

   • Library of popular gels for color effects.

4. Lighting Effects Mode (via firmware update):

   • Simulates effects such as TV, paparazzi, strobe, fire, lightning, fireworks, emergency lights, pulse, and party lights.

Color and Dimming Performance

• CRI/TLCI Rating: 97 for daylight and 99 for tungsten, ensuring highly accurate color rendition.
• Dimming Range: Flicker-free dimming from 100% to 0% without color shifts.
• Frame Rate Compatibility: Operates without flicker at any frame rate or shutter angle.

Control Options

• Local and Remote Control: Adjust settings directly on the unit or remotely via DMX, wireless DMX, or Bluetooth (optional modules required).
• Master/Slave Mode: Link and control multiple lights from a single master fixture.
• Firmware Updates: Add features such as DMX quick select, fan control, and Apollo WDMX compatibility.

Power and Energy Efficiency

• Power Options:Energy Efficient: Draws only 325W nominal, with no need for external ballasts.
  • Built-in 100–240 VAC power supply for global compatibility.
  • Optional V-mount or Gold mount battery plates for DC operation.

Design and Durability

• Construction: Rugged aluminum core ensures durability and optimal thermal management.
• Cooling: Ultra-quiet fan with optional silent operation mode.
• Mounting: Includes a yoke with a Junior pin for easy positioning.
• Connectivity: Durable powerCon locking connector with daisy-chaining capability.

Additional Features

• Presets:
  • Six user-programmable presets for custom setups.
  • Factory presets for quick access to common settings.
• Accessories:
  • Compatible with barndoors, honeycombs, and other light-shaping tools.

General Information

• Item Type: 1x LED Light Panel
• Included Storage Case: No
• Display: LCD
• Certifications: CE, FCC, IC, cETL
• Materials: Aluminum (Housing)
• Environmental Resistance: Dust-Resistant (IP20)

Lighting Performance

• Beam Angle: 110°

• Photometrics:

  • At 2700K:
    • 758 fc / 8154 Lux at 3.3 ft (1 m)
    • 336 fc / 3624 Lux at 4.9 ft (1.5 m)
    • 84 fc / 906 Lux at 9.84 ft (3 m)
    • 36 fc / 385 Lux at 15.09 ft (4.6 m)
  • At 6000K:
    • 902 fc / 9713 Lux at 3.3 ft (1 m)
    • 401 fc / 4317 Lux at 4.9 ft (1.5 m)
    • 100 fc / 1079 Lux at 9.84 ft (3 m)
    • 43 fc / 459 Lux at 15.09 ft (4.6 m)

• Color Temperature: Adjustable 2700 to 10,000K

• Color Modes: RGB, Daylight, Tungsten

• Color Accuracy Standard:

  • CRI 99 at 2700K and 6000K
  • TLCI 99 at 2700K and 6000K

• Dimming: Continuous, 0 to 100% flicker-free dimming

Control Options

• Wireless Remote Control:

  • Bluetooth (Adapter Required, Not Included)
  • Wireless DMX (Adapter Required, Not Included)
  • Mobile App Compatible (iOS Only, Adapter Required)

• Connectivity:

  • Inputs:
    • 1x powerCON AC Power Input
    • 1x XLR 3-Pin Battery/Power Input (28 VDC)
    • 1x XLR 5-Pin DMX Input
    • 1x RJ45 DMX Input
  • Outputs:
    • 1x powerCON AC Power Output
    • 1x XLR 5-Pin DMX Output
    • 1x RJ45 DMX Output

Power Options

• Power Source:
  • AC Power (Cable Included)
  • Battery (Optional):
    • 2x Gold Mount (Not Included)
    • 2x V-Mount (Not Included)
• Input Power:Power Consumption: 350 W
  • 28 VDC
  • 110 to 240 VAC, 50 / 60 Hz
• Included Adapter/Cable:Power Pass-Through: Yes
  • 1x USA Type-A/B to powerCON Cable (9.84 ft / 3 m)

Mounting

• Yoke Type: Manually-Operated Yoke
• Fixture Mounting: 1x 1-1/8" Stud (Via Yoke Mount)

Build and Dimensions

• Fixture Panel Dimensions: 23.75 x 11" (60.33 x 27.94 cm)
• Fixture Dimensions: 25 x 12.5 x 6.5" (63.5 x 31.8 x 16.5 cm)
• Fixture Weight: 22.27 lb (10.1 kg)

Packaging Info

• Package Weight: 29.7 lb
• Box Dimensions (LxWxH): 34.5 x 24 x 10 in

In the Box

• 1 x Gemini 2x1 Soft RGB LED Light Panel
• 1 x Standard Yoke
• 1 x US Power Cable
