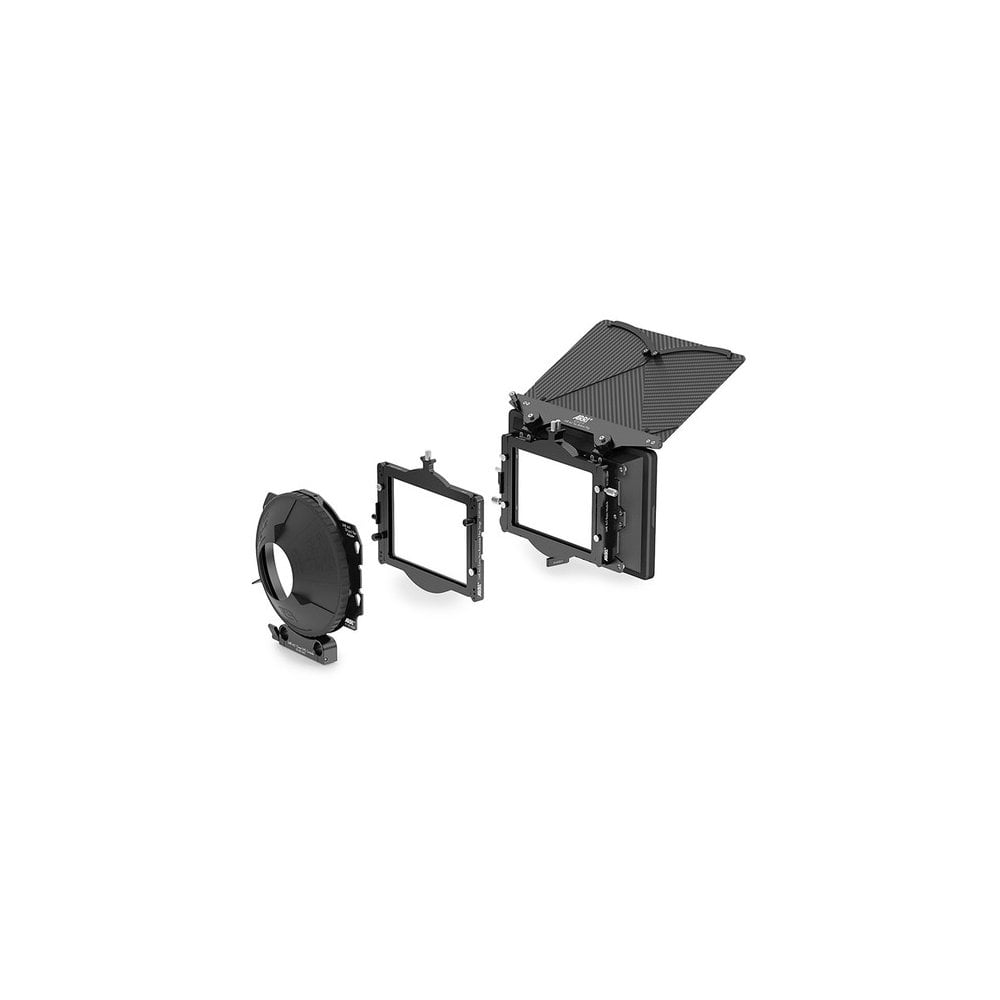

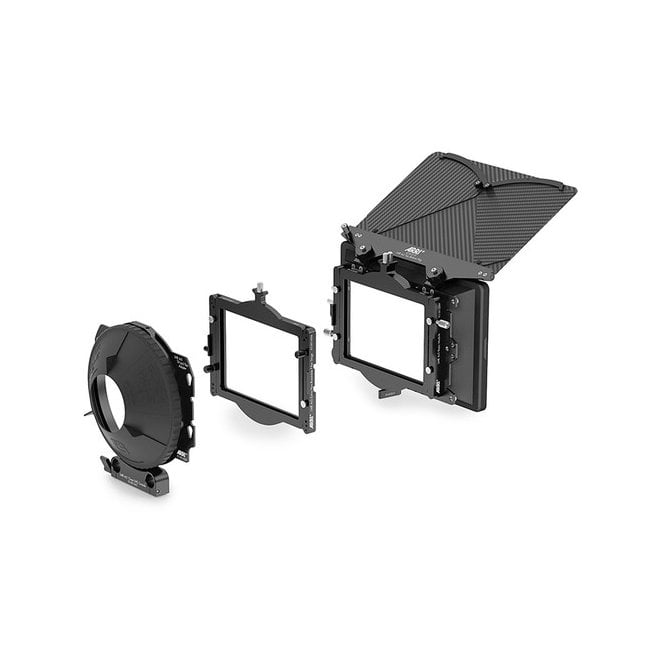

ARRI LMB 4x5 3-Stage Matte Box 15mm LWS Set

The ARRI LMB 4x5 3-Stage Matte Box 15mm LWS Set is a lightweight and versatile matte box system, designed to provide effective light control and filtration in a compact configuration suitable for various lenses and setups.

Key Components

• LMB 4x5 Matte Box: A lightweight, modular matte box designed for flexibility and ease of use.
• 15mm Lightweight Rod Support: Provides secure mounting on 15mm LWS rods. Clip-on lens adapters are available separately for additional mounting options.
• Filter Stages:
  • One 2-Filter Stage: Fixed position, supporting up to two filters.
  • One 1-Filter Stage: Fixed position, supporting one filter.
  • Three Combo Filter Trays: Accommodates both 4 x 5.65" and 4 x 4" filters for diverse filtration needs.

Additional Features

• Universal Adapter Donut: Flexible rubber donut adapter fits a wide range of lens diameters, from 62 to 143 mm, allowing compatibility with various lenses.
• Top/Bottom Carbon Fiber Flag: The flag provides extended flare protection, with slide-out wings for additional coverage. It can be positioned on either the top or bottom of the matte box, depending on shot requirements.
• Captive Screws: The sunshade includes captive screws, allowing for easy attachment and removal of the sunshade without losing parts.
• Optional Lens Adapters: Clamp-on lens adapters for specific lenses are available separately, adding further versatility to the setup.

Summary of Features

• Lightweight 15mm Rod Support: Stable support for matte box on 15mm rods.
• Two Stationary Filter Stages: Supports a total of three filters (two in the 2-filter stage and one in the 1-filter stage).
• Flexible Universal Donut: Fits lenses from 62-143mm in diameter.
• Carbon Fiber Flag: Top/bottom flag with slide-out extensions for enhanced flare control.

ARRI LMB 4x5 Matte Box Specifications

• Attachment Method:

  • Rod Ports (for mounting on rods)

• Filter Stages:

  • 1 x Fixed Stage (supports 4 x 4" / 4 x 5.65" filters)
  • 1 x Fixed 2-Filter Stage (supports two 4 x 4" / 4 x 5.65" filters)

• Lens Compatibility:

  • Universal Donut fits lenses with diameters from 62 to 143 mm

• Rod Standard:

  • 15 mm LWS with 60 mm spacing

• Flags:

  • 1 x Top Flag for flare control

Packaging Info

• Package Weight: 5.45 lb
• Box Dimensions: 20.6 x 15.5 x 9.6"

In the box:

1x ARRI LMB 4x5 3-Stage Matte Box 15mm Support Set
