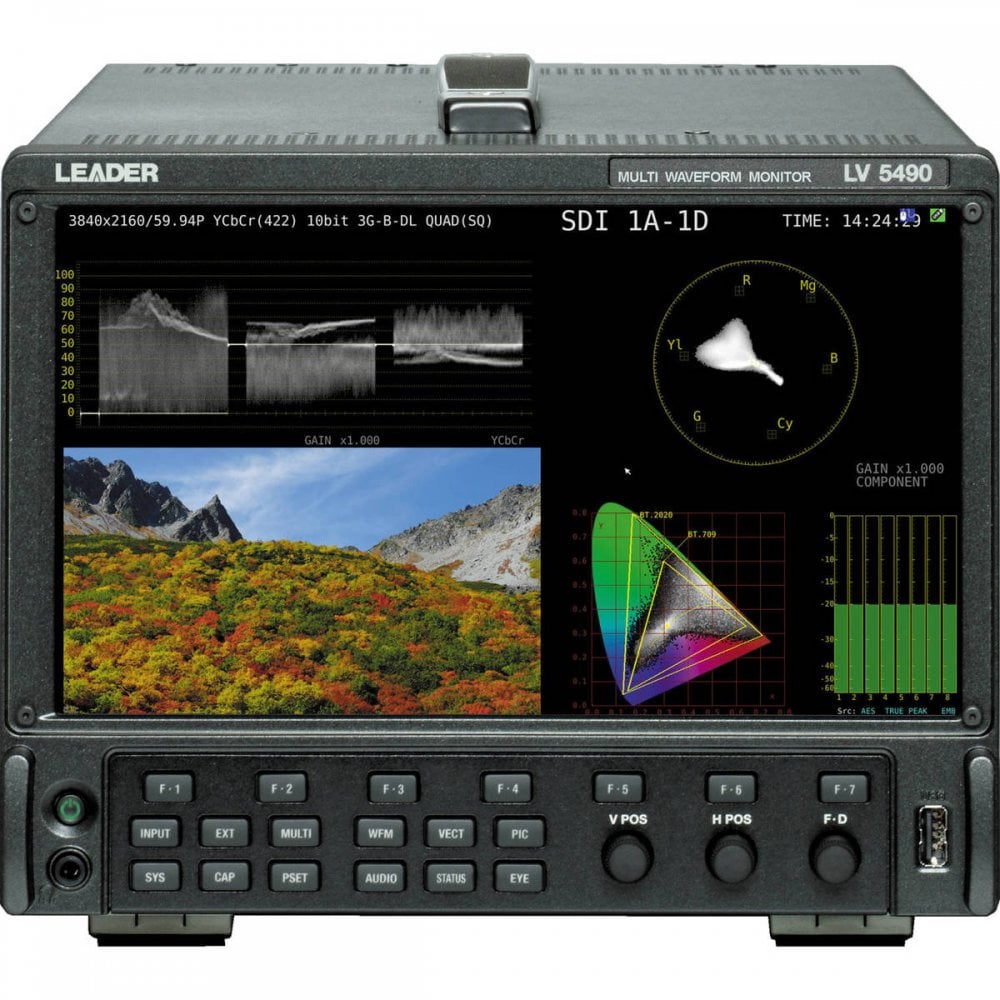

The Leader LV5490 is a versatile 4K waveform monitor allowing for multi-format monitoring with advanced features, designed to meet the needs of broadcast and production environments.
Key Features
4K Signal Monitoring: Displays up to four DCI 4K (4096 x 2160) or UHD 4K (3840 x 2160) signals with waveform monitoring.
SDI Channels: Eight 3G/HD/SD SDI channels; four are dedicated inputs with cable length measurement, and four are configurable as either inputs or outputs.
Dual and Quad Link: Supports dual-link 3G-SDI input for displaying up to four 4K signals, and quad-link 3G-SDI input for up to two 4K signals.
Display: 9" IPS display with 1920 x 1080 resolution, LED backlit, with adjustable color temperature for accurate monitoring.
Screen Capture: Allows capturing and storing images for later review; saves as bitmap files on USB memory for PC review.
Additional Connections and Options
I/O Connections: External Reference loop-through, SDI and DVI monitoring outputs, RS-422 and RS-485 RJ-45 jacks, and a 15-pin remote input.
Digital Audio Options: Digital audio SDI I/O, optional RJ-45 Ethernet jack, audio de-embedding, and display features like Lissajous, surround sound, and audio meter displays.
Optional Features:
Dolby Decode: For specialized audio applications.
Chromaticity Diagram: Meets ITU-R BT.2020 standard for color accuracy.
Eye Pattern and Jitter Measurement: Provides signal integrity analysis.
Advanced Monitoring Functions
4K Pattern Generator: Includes 75%-100% color bars, ramp patterns, and SDI re-clocked output.
Waveform and Vector Display: Can display waveform, vector, and picture either separately or in customized layouts.
Signal Data Analysis: Measures cable length, detects CRC and embedded audio errors, event logging, data dumping, and timing display.
Audio Display: Displays up to 16 audio channels per SDI signal.
Leader LV5490 Specifications
Display
Type: XGA IPS LED backlit display
Size: 9" (23 cm)
Resolution: 1920 x 1080
Connections
SDI Inputs:External Reference: 2 x EXT REF loop-through
4 x 3G/HD/SD SDI dedicated inputs
4 x 3G/HD/SD SDI configurable between input and output
Monitor Output:
1 x 3G/HD/SD SDI
1 x DVI-D
Control Ports:
2 x RS-422/485 on RJ-45
1 x 15-pin remote input
Other Ports:
1 x USB
1 x Headphone jack
Supported Resolution
Up to 4K (4096 x 2160 or 3840 x 2160)
Physical Dimensions
Size: 8.80 x 7.40 x 14.20" (22.35 x 18.79 x 36.06 cm)
