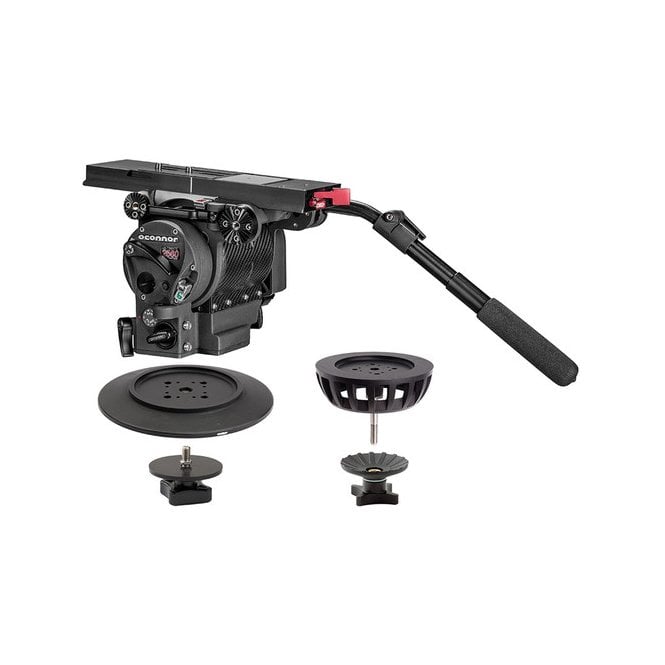

OConnor Ultimate 2560 Fluid Head Package

OConnor Ultimate 2560 Fluid Head Package Overview

The OConnor Ultimate 2560 Fluid Head Package is a robust, professional-grade fluid head tailored for digital cinema cameras. Weighing under 18 lbs, it supports camera payloads up to 66 lbs at a 6" center of gravity above the platform, making it an ideal choice for a range of setups—from portable configurations with the ARRI Alexa to fully equipped studio rigs.

Key Features:

• High Load Capacity: Supports up to 66 lbs, accommodating various digital cinema camera configurations.
• Lightweight Construction: Magnesium frame and carbon fiber cover keep the fluid head under 18 lbs.
• Dual Base Compatibility: Includes both a Mitchell base and a 150mm ball base adapter with tie-downs, offering expanded compatibility with different tripods.
• Euro-Style Quick Release: Enables rapid mounting and dismounting of large camera rigs, making setup adjustments quick and efficient.
• Cine-Style Controls: Cinema-standard positioning of brakes, rosettes, and other controls for intuitive operation.
• Sinusoidal Counterbalance System: OConnor's patented system provides accurate balance throughout the tilt range, ensuring smooth camera movement.
• Stepless Pan and Tilt Fluid Drag: Allows precise, fluid control over pan and tilt movements.
• Pan Handle with Extension: Includes a pan handle and extension for comfortable, controlled operation.

Camera Mounting:

• Type: Dual 3/8"-16 screws on quick release with sliding balance plate (OConnor 2575-120)

Head Type: Fluid Head

Drag Control: Yes

Load Capacity: 83 lbs / 37.7 kg

Weight: 16.2 lbs / 7.3 kg

Base Mount: 150 mm half ball or Mitchell flat base

Counterbalance: Continuous, with OConnor's patented sinusoidal counterbalance system for precise balance at any tilt angle

Pan & Tilt:

• Tilt Range: +90° to -90°
• Drag Control: Stepless for smooth pan and tilt motion

General:

• Material: Magnesium frame with carbon fiber cover
• Load Capacity: 83 lbs / 37.7 kg
• Weight: 16.2 lbs / 7.3 kg

Packaging Info:

• Package Weight: 36 lbs
• Box Dimensions (L x W x H): 16.6 x 15.9 x 15.9 inches

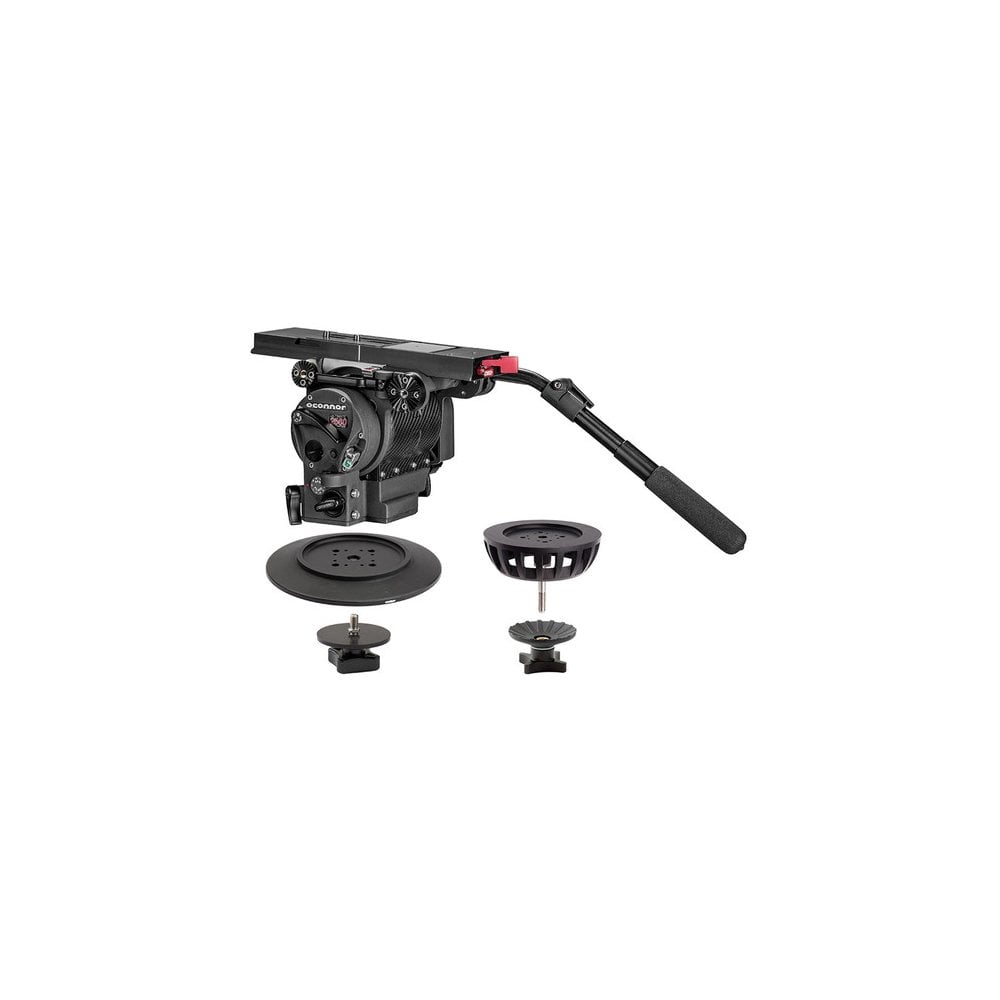

In the Box:

• Ultimate 2560 Fluid Head
• OConnor Euro-Style Quick Release Platform with Touch & Go Plate
• OConnor 2575-137 Top Half of Telescoping Pan Handle (30° Bend)
• OConnor 2575-135 Bottom Extension of Telescoping Pan Handle
• OConnor 08281 Mitchell Base
• OConnor 08402 Mitchell Base Tiedown
• OConnor 08414 150mm Ball Base Adapter
• OConnor 08417 Tiedown
