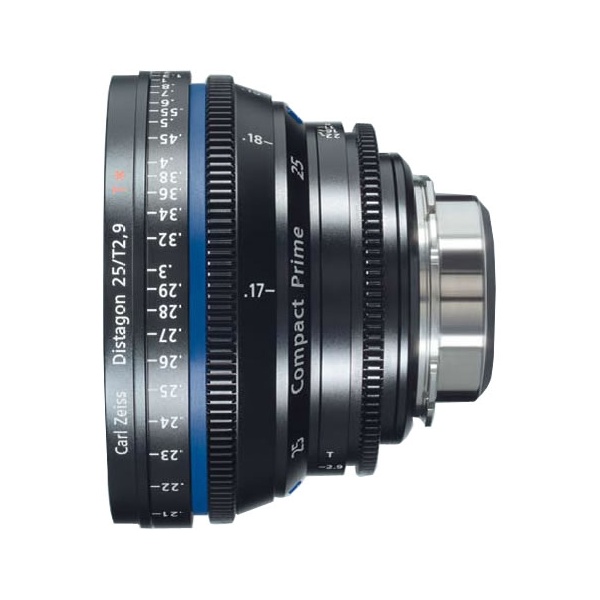

Carl Zeiss 1793-048 (1793048, 1793 048, 1793/048) Compact Prime CP.2 25mm / T2,9 PL Mount Lens with metric focus scale - P/n
The Compact Prime CP.2 lenses are the latest members of the ZEISS family of lenses for digital and film cameras. This second generation of the Compact Prime lenses now delivers even greater flexibility by introducing interchangeable mounts that allow the lenses to be used with a wide range of cameras from traditional cine to HDSLR systems.
Switching between traditional film and digital PL cine cameras and HDSLR cameras is no longer an issue. The Compact Prime CP.2 lenses’ improved functionality means improved ergonomics compared to standard SLR lenses, standard housing dimensions, standard focus and iris gear positions, a consistent front diameter, a robust construction, longer focus rotation and a manual focus, thereby providing the flexibility users demand. With precision and speed - Compact Prime CP.2 lenses are the perfect tool for Independent filmmakers, professional still photographers expanding their services or large studios using HDSLR’s as a second camera for TV and feature film productions.
FEATURES
Interchangeable mount allows a mix of HDSLR systems with traditional cine cameras
Full frame coverage (24 x 36mm) for focal lengths 21 to 85 mm
Common aperture of T2.1 for the standard lens set
No need for adapter solutions anymore
Three different mounts available (PL, EF and F mount)
High stability due to support bracket, which is included for additional lens stability
Sweet spot effect with APS-C sensors
Technical Data
Compact Prime CP.2
Aperture
Close Focus1
Length2
Front diameter
Weight
AOV3
CP.2 15 mm/T2.9
T 2.9 to T 22
0.3 m / 12''
86 mm / 3.39''
114 mm / 4.5''
0.9 kg / 2.0 lbs
79°
CP.2 18 mm/T3.6
T 3.6 to T 22
0.3 m / 12''
80 mm / 3.15''
114 mm / 4.5''
0.9 kg / 2.0 lbs
69°
CP.2 21 mm/T2.9
T 2.9 to T 22
0.24 m / 10''
80 mm / 3.15''
114 mm / 4.5''
1.0 kg / 2.2 lbs
61°
CP.2 25 mm/T2.9
T 2.9 to T 22
0.17 m / 7''
80 mm / 3.15''
114 mm / 4.5''
0.9 kg / 2.0 lbs
53°
CP.2 25 mm/T2.1
T 2.1 to T 22
0.26 m / 10''
80 mm / 3.15''
114 mm / 4.5''
0.9 kg / 2.0 lbs
53°
CP.2 28 mm/T2.1
T 2.1 to T 22
0.24 m / 10''
80 mm / 3.15''
114 mm / 4.5''
1.0 kg / 2.2 lbs
48°
CP.2 35 mm/T2.1
T 2.1 to T 22
0.3 m / 12''
80 mm / 3.15''
114 mm / 4.5''
1.0 kg / 2.2 lbs
39°
CP.2 50 mm/T2.1
T 2.1 to T 22
0.45 m / 18''
80 mm / 3.15''
114 mm / 4.5''
0.9 kg / 2.0 lbs
28°
CP.2 85 mm/T2.1
T 2.1 to T 22
1 m / 3'3''
80 mm / 3.15''
114 mm / 4.5''
0.9 kg / 2.0 lbs
17°
CP.2 100 mm/T2.1 CF
T 2.1 to T 22
0.7 m / 2'6''
132 mm / 5.19''
114 mm / 4.5''
1.5 kg / 3.3 lbs
14°
CP.2 135 mm/T2.1
T 2.1 to T 22
1 m / 3'3''
149 mm / 5.86''
114 mm / 4.5''
1.6 kg / 3.5 lbs
11°
CP.2 50 mm/T2.1 Macro
T 2.1 to T 22
0.24 m / 10''
132 mm / 5.19''
134 mm / 5.3''
1.4 kg /3.0 lbs
28°
Â
1Close focus distance is measured from the image plane 2Front to PL mount flange 3Horizontal angle of view for an ANSI Super 35 Silent camera aperture (aspect ratio 1:1.33,  dimensions 24.9 mm x 18.7 mm / 0.98“ x 0.74“)
