Pag 9966LD light D-Tap (150mm)

code: 9966LD
  • £329.83
  • RRP: £411.00
Item out of Stock | Usually dispatched within 24 hours

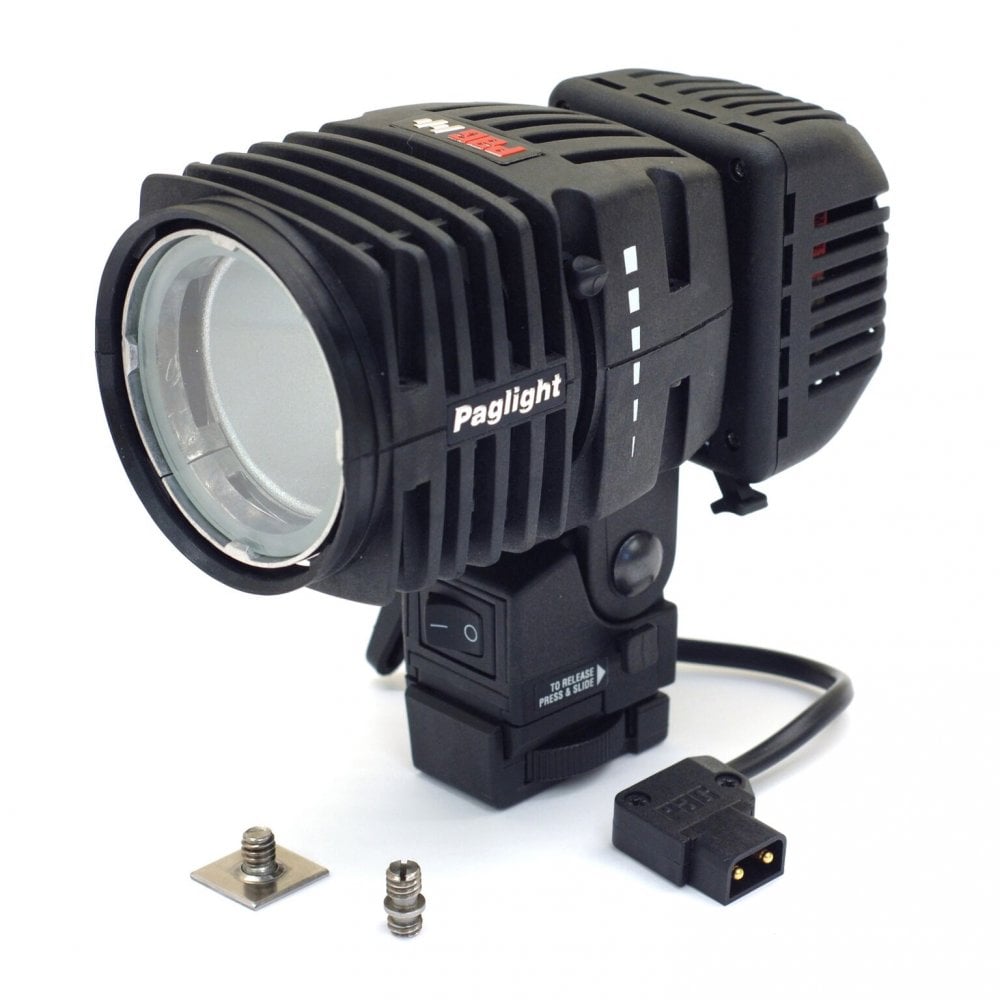

PAG 9966LD (9966 LD 9966-LD 9966/LD) Paglight Standard Halogen / D-Tap (150mm)


  • Tungsten halogen news interview light
  • Soft, even spectral distribution
  • Fully focusable from spot to flood
  • Cool-running design
  • Rugged yet lightweight impact resistant construction
  • Includes Standard halogen lamp holder (Sony camera has Softstart function for use with Li-Ion batteries)
  • 20W or 35W lamps required (sold separately)
  • This is the recommended model for Sony cameras powered by Li-Ion batteries
  • Patented interchangeable lamp unit design also accepts LED and HMI arc lamp units - one light does it all
  • Hot-shoe Power Base with D-Tap connector (lead length 150mm) for use with the light output on Sony cameras
  •  Includes ¼€ Stud Adaptor and Camera Shoe Plate
  • A Rotatable Accessory Kit that has a filter to convert halogen to daylight colour temperature is sold separately
  • Reflector 45mm dia.
  • 70mm wide x 103mm long x 115mm high

Paglight is the ultimate TV News camera top-light.

Paglight has a revolutionary patented design which allows a range of professional lighting technologies to be used with one lamp head. Interchangeable tungsten halogen, LED or HMI arc lighting modules, plug into the back of the reflector housing. They can be hot-swapped quickly and safely, in a matter of seconds. Paglight is the only broadcast light with this feature, providing you with the correct lighting technology for any professional situation.

This model is supplied with a Standard tungsten halogen lamp holder and is it is recommended that 20W or 35W long-life lamps are used when powering the light using Li-Ion batteries.

Paglight has an output that is soft and even. The lamp head incorporates a spot to flood feature for additional control, a feature not commonly found in camera top-lights.

The light is designed to be cool-running at all times and easy to handle.

The lamp body has a multi-directional mounting and may be adjusted vertically and horizontally. The desired position can be maintained by a locking lever situated on the side of the light base.

Paglight is supplied with a detachable hot-shoe Power Base that enables you to quickly attach the light to the camera, and remove it after shooting, leaving the power connection in place. This model incorporates a Power Base that has a cable length of 150mm, terminated with a D-Tap plug, for connection to the output provided on a Sony camera.

Paglight can be mounted to the camera using the ¼Ã¢€ stud adaptor or the camera shoe plate supplied with the light.


View More Details



  • Voltage: Nominal 12V to 14.8V battery supply.
  • Maximum Power Rating: 100W lamp with 13.2V battery.
  • Spot and Flood Angles:

Flood 62°.
Spot 22.6°.

  • Dimensions:

Height: 115mm (4.5”).
Width: 70mm (2.7”).
Depth: 103mm (4”).
Without accessory kit, plug-in lamp unit or power base.

Weight: 233g (8.2oz) without accessory kit, plug-in lamp unit or power base.

  • Reflector size: 45mm (1.8”) dia.

LED Dimmer Unit:

  • Input Voltage Range: 10V to 20V DC.
  • Power Consumption: 11W.
  • Output: 900 lux at 2m (spot), 175 lux at 2m (flood).
  • Colour Temperature: Daylight match (5600°K to 6000°K approx.).
  • Dimensions:

Height: 75mm (3”).
Width: 59mm (2.3”).
Depth: 124mm (4.9”).
With lamp protector.

Weight: 143g (5oz) without lamp protector.

Power Base:

  • Connector: 2-pin D-Tap type.
  • Lead Length: 150mm (5.9”).
