Arri lite 750 Plus MAN Blue

ARRI Arrilite 750 Plus MAN Blue(L0.0034721)

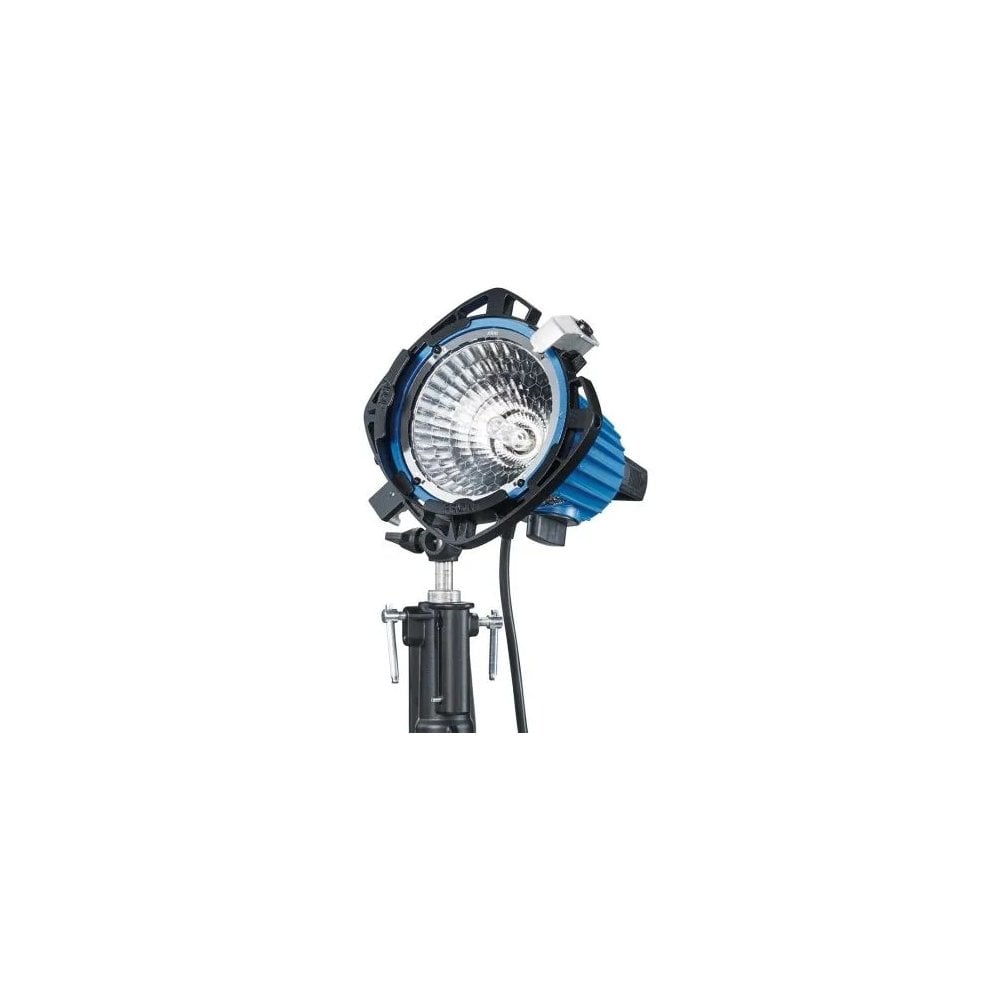

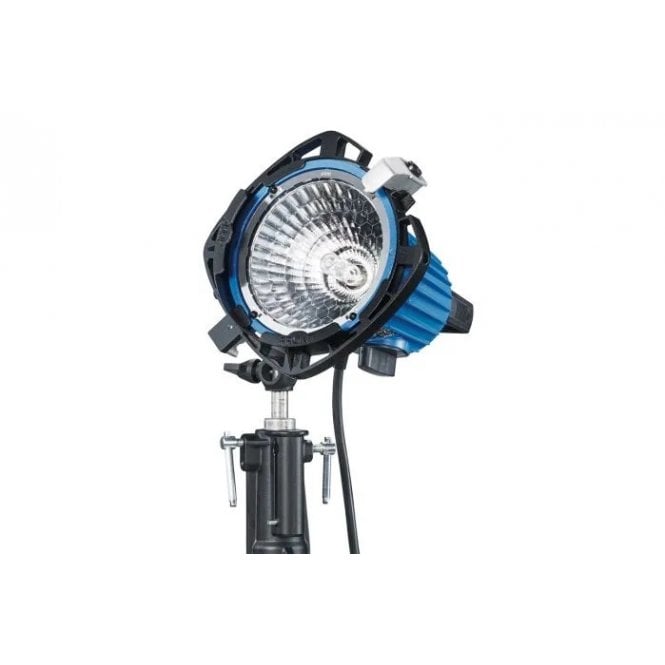

The ARRILITE 750 Plus is a new and improved incarnation of ARRI’s traditional, open-faced light, the ARRILITE 800/1000. By optimizing the ARRIMAX reflector for usage with an HPL* 750 W lamp, the ARRILITE 750 Plus offers 21 % higher light efficiency than the previous ARRILITE 800 W, while the ARRIMAX optical system improves distribution of the light.

A detachable and fully rotatable accessory holder accommodates scrims and barndoors, and incorporates fittings that permit the Chimera Video Pro Plus S to be fitted directly, without an additional speedring.

The one-arm stirrup allows for plenty of pan-and-tilt options and a heat-proof handle at the rear of the lamphead enables easy maneuvering. No tools are required for changing bulbs as the housing consists simply of two detachable parts that open and close through bayonet cap locks.

The smaller and lighter aluminum housing of the ARRILITE 750 Plus makes it an ideal lamphead for lighting kits and therefore also suitable for electronic newsgathering, field production and fast turnaround location use.

Lamphead Type Open Face with parabolic facetted reflector, 750 W

Reflector MAX reflector made of high purity aluminium

Lamp Type HPL** 750 W, 575 W, 375 W; GKV*** 600 W, FKR 650 W, HX 800 W

Power Consumption 800 W, 750 W, 650 W, 600 W, 575 W, 375 W

Voltage Range 100 to 240 V

Lamp Base G9.5

Dimming yes, 0 to 100 % via external dimming system

Correlated Color Temperature 3,200 K

Beam Angle 21° to 73°

Weight in kg net* approx. 2 kg

Mounting Socket 16 mm / 5/8" (0.6")

In the Box

ARRI Arrilite 750 Plus MAN Blue
