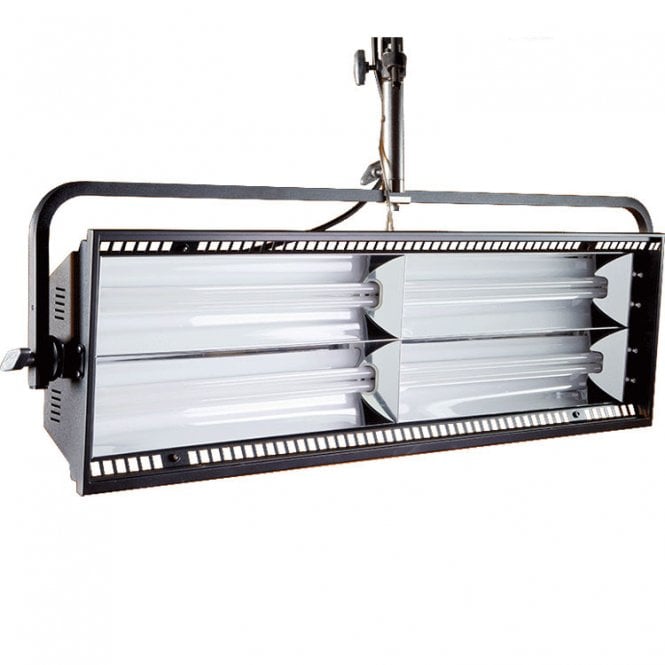

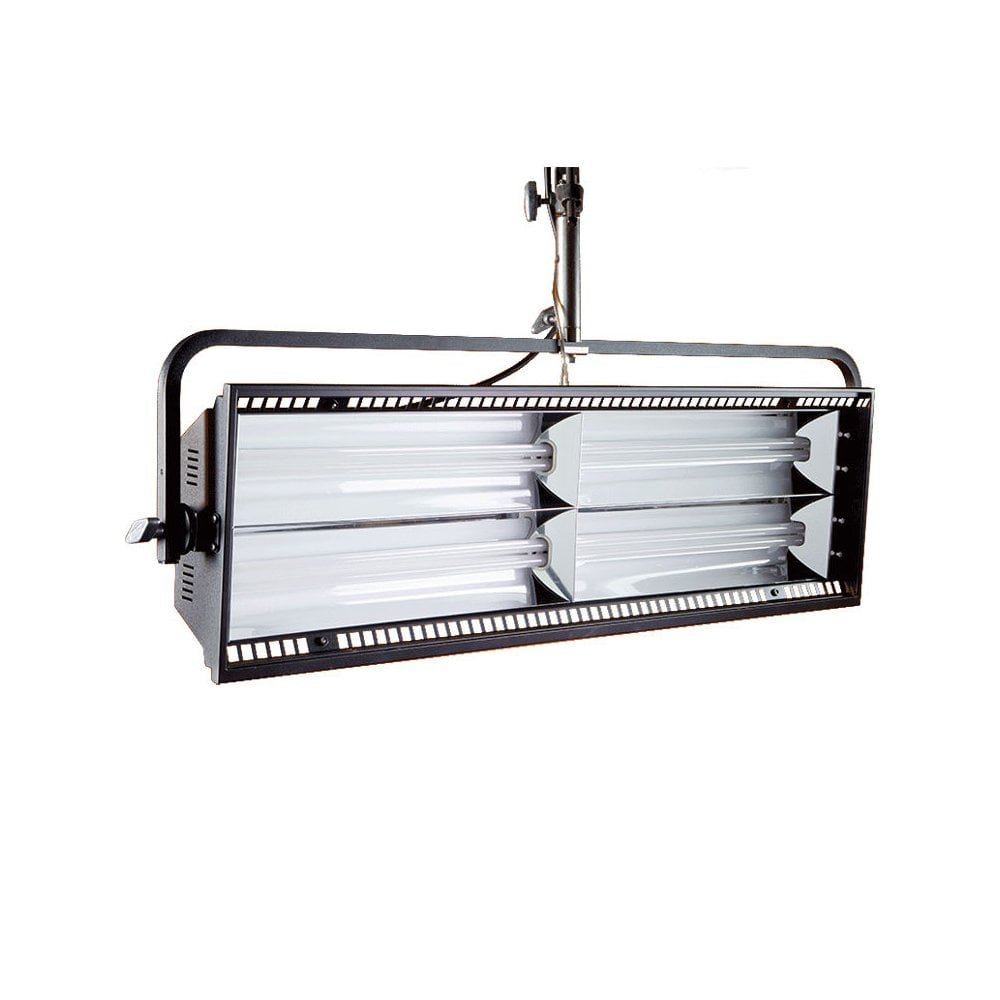

Kino Flo ParaZip 415 Dmx, 230vac

Kino Flo ParaZip 415 Dmx, 230vac(ZIP-415-230U)

Made for the TV broadcast industry, the Yoke Mount with Euro plug version of the Kino Flo ParaZip 415 is a 4 lamp fixture that casts a wide soft beam of flattering light thanks to a parabolic reflector, that's dimmable from 5-100% manually or remotely via DMX. The design of the reflector is such that it efficiently projects a beam of soft light a distance of 16' - ideal for studios. The beam can be further controlled by the included 90° honeycomb grid (louver). The ParaZip is designed to use 21" 55W True Match Compact Fluorescent lamps available in both 3200 and 5500K that render colors faithfully down to the subtlest of hues.

Thanks to its long lamp life, low heat, and low electrical draw the ParaZip is a smart "green" choice too. Not only is it cheaper to run than traditional tungsten lights but low heat means low air-conditioning costs and a higher degree of comfort for the talent. Besides the 90° louver the ParaZip comes with a filter holder for gels and diffusion materials.

This version of the ParaZip has a yoke mount. Separate purchase of an MTP-I40 or MTP-I80 Baby or Junior pin adapter allows stand or overhead mounting. It also comes with a Euro plug AC cable; however, the built-in ballast is capable of running on 100-240 VAC mains power for worldwide use with a simple plug adapter.

Lamp Socket

4 x 4-Pin 2G11 Sockets Designed for 21" 55W Twin Tube Compact Fluorescent Lamps

DMX Connectors

1 x DMX512 Input via 5-Pin XLR

1 x DMX512 Output via 5-Pin XLR

Photometric Data

Footcandles

906 fc @ 2' (0.61 m) 159 fc @ 6' (1.83 m)

61 fc @ 10' (3.05 m)

33 fc @ 14' (4.23 m)

17 fc @ 20' (6.01 m)

Lux

12,100 lux @ 1.64' (0.5 m)

2,440 lux @ 4.92' (1.5 m)

962 lux @ 8.20' (2.5 m)

513 lux @ 11.48' (3.5 m)

261 lux @ 16.40' (5 m)

Dimming

5-100%

Power

Ballast

Built-in

Input Voltage

100 - 240 VAC, 50/60 Hz (165 W)

Power Draw

1.4 A at 120 VAC 0.7 A at 230 VAC

Output Frequency

80 kHz

Plug

Euro Plug

General

Mounting

Yoke Mount

Dimensions

50 x 16 x 6.5" (127 x 40.5 x 16.5 cm)

Weight

20 lb (9.0 kg)

Packaging Info

Package Weight

23 lb

Box Dimensions (LxWxH)

54.5 x 27.5 x 20.5"

In the Box

Kino Flo ParaZip 415 Fluorescent Fixture (Yoke Mount, Euro Plug)

Gel Frame

Kino Flo 90° ParaZip 415 Louver
