Kino Flo KIT-FT44U FreeStyle T44 LED DMX 1-Light Kit with Travel Case

Kino Flo KIT-FT44U (FT44U, KIT_FT44U, KIT/FT44U, KIT-FT44U) FreeStyle T44 LED DMX 1-Light Kit with Travel Case

The pictured Kino Flo FreeStyle T44 , originally $4,040.00 drops from $3,434.00 to $3,051.50 at Adorama. Also checkout other products: Kino Flo FreeStyle T44 LED Fixture, Kino Flo FreeStyle T44 LED 1-Light Kit, Mount with Baby Receiver & Soft Case and a Kino Flo FreeStyle T44 Gaffer LED DMX 2-Light Kit with Shipping Case, Universal and FreeShipping.

Kino Flo Lighting Systems' True Match FreeStyle LED tubes are specially designed for operation in FreeStyle T44 fixture for film production or stage design lighting. The FreeStyle LED tubes display Kino Flo's True Match white light and RGBWW color management system found in Kino Flo's LED lighting fixtures. The tubes is 4ft (1.2m). On camera, FreeStyle LED tubes photograph with the same softness, the same subtle color reproduction as Kino Flo's award-winning T12 high-output lamps.

In addition to the >95 photo rendering index, cinematographers will see the difference the 310 deg. LED tube makes when operated in a fixture or out of the fixture as a remote "sabre" of light. Paired with the FreeStyle fixture and light intensifying reflector, the tube projects soft light forward at a 100 deg. beam angle at about the same light levels you'd get from a 1000W tungsten softlight.

FreeStyle LED

• Kelvin presets

• Dial-in color temperature control between 2500K-9900K

• Green/Magenta Control

• Hue angle and Saturation adjustments

• RGB control

• CIE xy

• FX Control

• Camera Profiles LUTs

• Color Space

• Works with Apps with predetermined RGB presets or color wheels

• Can use preset buttons to store custom Kelvin settings

• Light levels do not change when selecting Kelvin settings

• No color shift while dimming

• Color-correct with high color rendering index (CRI 95)

• Universal input 100VAC-240VAC or 24VDC

• Energy efficient, draws 1.25A, 120VAC and 6.25A, 24VDC

• Flicker-free, quiet operation

• Full range onboard and DMX dimming

• DMX wireless link (Lumen Radio)

• DMX Auto Terminate

FreeStyle T44 LED Design

• Remote fixture with built-in barndoors

• Fixture includes removable 90 deg. Honeycomb Louver

• Removable Center Mount

• KinoGrip Center Mount

• Lightweight, slim profile

• Mounts to stand, light enough to be hand-held

• FreeStyle Tubes

The White menu features Dimming, tunable Kelvin range from 2700K tungsten to 6500K daylight and Green/Magenta control channels. The Green/Magenta control can be scaled from 0- to 100, where 25 = 1/4 correction, 50 = 1/2 correction and 100 = full correction. In the Gels/Hue menu, the Kelvin range is extended to 2500K Kelvin to 9900K daylight and a fourth channel is called Gel. The Gel channel includes Kino Flo presets such as blue & green screen, sodium vapor, mercury vapor as well as over 100 well-known lighting gels. The gel function can be applied to any Kelvin temperature and by pushing the control knob in/out, the gel will be applied or removed.

A fifth channel called Hue Angle (Hue) and sixth channel Saturation (Sat) are also included in the gel menu. These two channels behave similar to a traditional color wheel, where white light is in the center and Hue Angle determines the color along a 360-degree range and Saturation determines how much color is applied. With the Hue Angle and Saturation it is possible to create over

2 million color combinations!

The RGB color menu gives individual control of red, green and blue LED's. The RGB mode is a great way to work with apps with predetermined RGB presets or color wheels. RGB menu is also a great feature to dial in specific gel RGB values or when controlling colors from a DMX desk. The FX (Effects) menu introduced on June 1, 2018 provides access to popular effects such as Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse and Scroll. When on the desired effect, there are several pre-sets as well as control parameters that can be altered. For example, in the Lightning effect there is a "Storm" and "Frankenstein" preset, but it is possible to change Rate to provide additional variation.

True Match 4.0 Firmware update in September 2019 includes groundbreaking features: CIE xy, Camera Profiles LUTs and Color Space selection. The CIE xy determines the color displayed by its X and Y space coordinates. For example, with a handheld color meter like the Sekonic C-800, users can obtain a CIE xy reading from any light source and input the CIE xy coordinates into the Kino Flo LED fixture

to match colors closely.

Camera Profiles LUTs available for the following cinema cameras and more to follow: Panavision DXL, Sony Venice, Arri Alexa, Panasonic Varicam. Kino Flo's True Match 4.0 firmware balances their LED lights to the cameras rather than the other way around. The Kino Flo designed tungsten and daylight LED emitters harmonize with the camera sensors even as the color temperature settings are adjusted.

The Color Space defines the RGB color space (white point and RGB primary colors) as a means of matching color points between manufacturing. Defining the color space takes the guesswork out of post-production workflow and color grading. Included in the 4.0 firmware are: rec 709/sRGB, P3 D65, rec 2020,and ESTA E1.54.

LED-140X Controller

The Freestyle controller (LED-140X), includes standard DMX in/out ports for cable as well as wireless DMX connectivity (Lumen Radio). The controller features universal AC voltage input 100-240vac (1.25 Amps at 120vac) as well as a 3-Pin XLR for 24vdc operation (6.25A). The FreeStyle 140 LED DMX controller firmware is updatable from a PC using the Mini B USB data port.

FreeStyle T44 Fixture

The FreeStyle T44 Fixture houses the tubes and is comprised of built-in barndoors, a Louver, Reflector and tube Harness. The Louver and Reflector are held in place with Hook & Loop fasteners. There is a strain relief on the tube Harness to ensure the connectors don't pull off the lamps during operation. To get the harness away from the fixture, turn the 1/4 turn fastener and rotate counter-clockwise to release.

Case

The Travel case (KAS-FT44C) is well suited for location transport. The rugged construction ensures that the system is well protected. The travel case holds one FreeStyle T44 LED system, an additional louver and a medium duty stand.

Light Fixture

• Beam Angle: 100°
• Color Temperature: 2500 to 9900K
• Color Accuracy Standard: CRI 95
• Cooling System: Passive
• Dimming: Yes, 0 to 100%
• Display: None
• Photometrics: 55 fc / 591.8 lux at 8' / 2.44 m
• Fixture Dimensions: 52.0 x 13.0 x 6.5" / 132.1 x 33.0 x 16.5 cm
• Fixture Weight: 11.02 lb / 5 kg

Connectors

• Battery Plate: None
• Power Input Connector: IEC
• DMX Connector: 3-Pin XLR

Mounting

• Yoke Mount: None
• Fixture Mount: None
• Accessory Mount: None

Remote Operation

• Remote Control Type: DMX

Power

• AC Input Power: 100 to 240 VAC, 50 / 60 Hz
• DC Input Power: 18 to 36 VDC
• Power Source: AC Adapter, External Battery

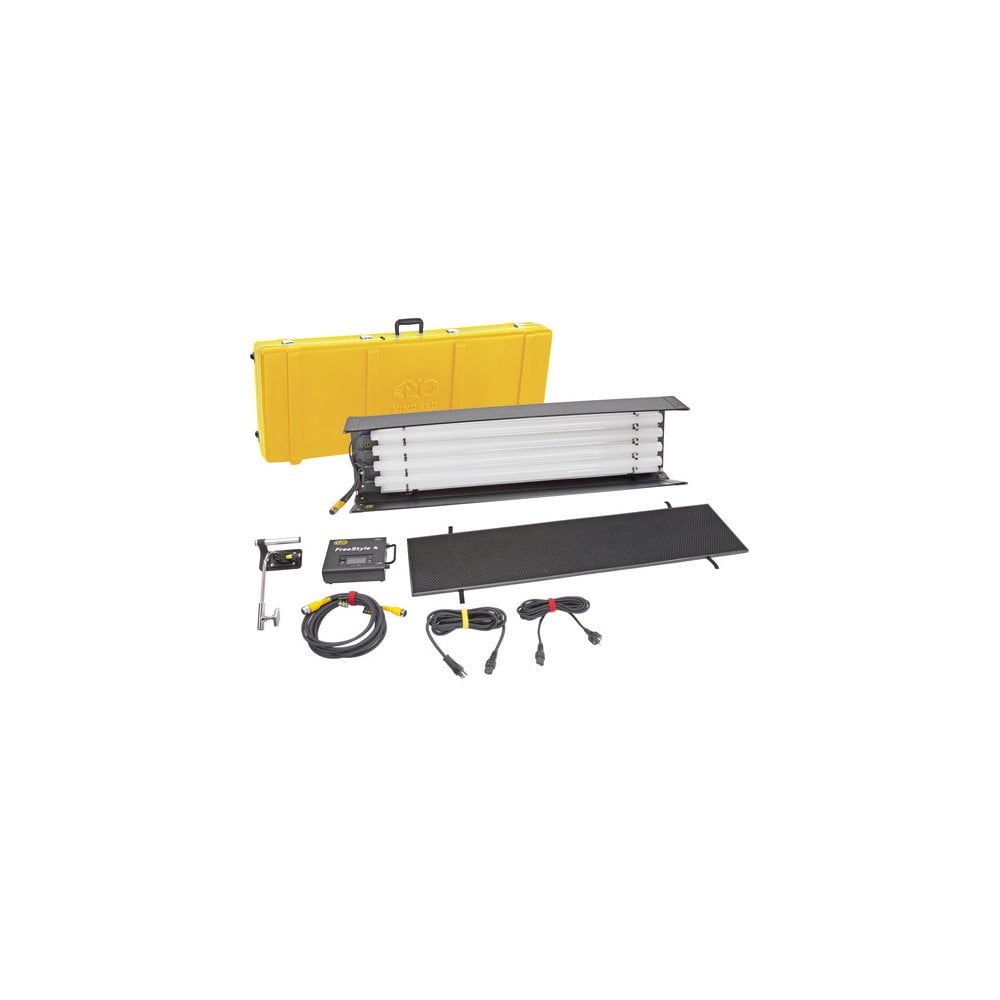

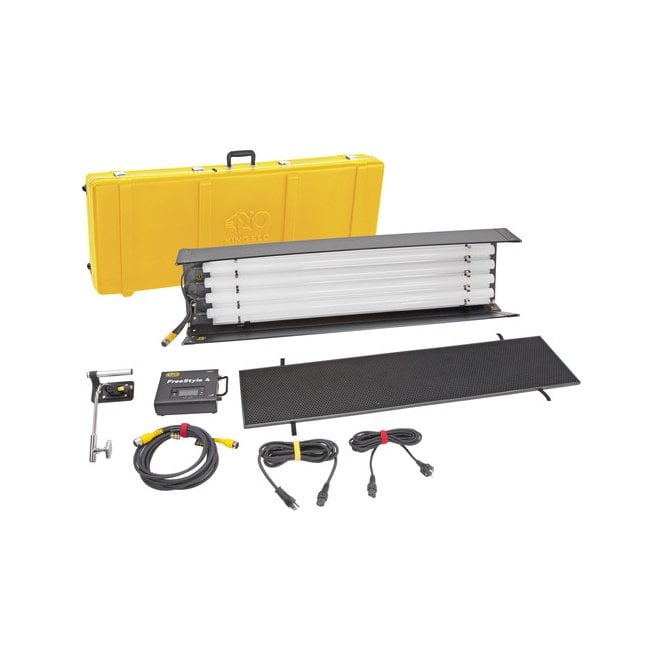

In The Box:

• Kino Flo CFX-F484 FreeStyle T44 LED Fixture
• 4x FS-48 FreeStyle 4' LED Tube
• LED-140X FreeStyle 140 LED DMX Controller
• MTP-BG41 16mm Mount with Baby Receiver
• X12-25 25' Extension Cable
• KAS-FT44C Travel Case
