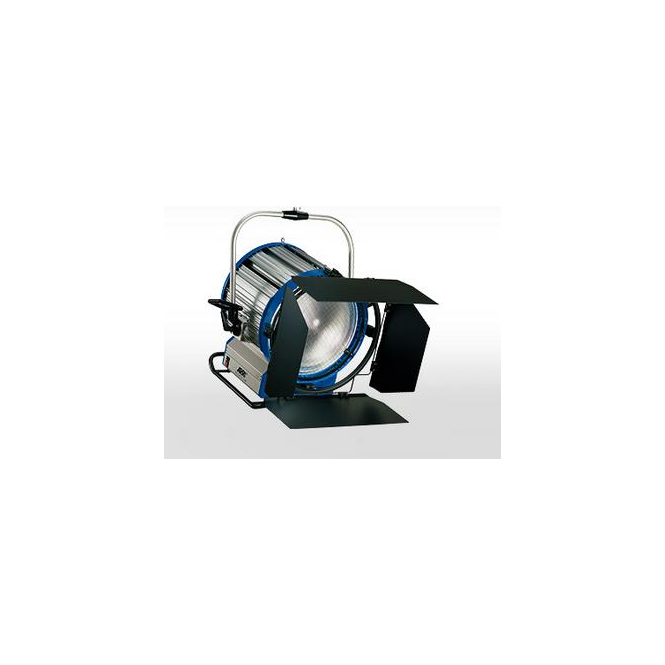

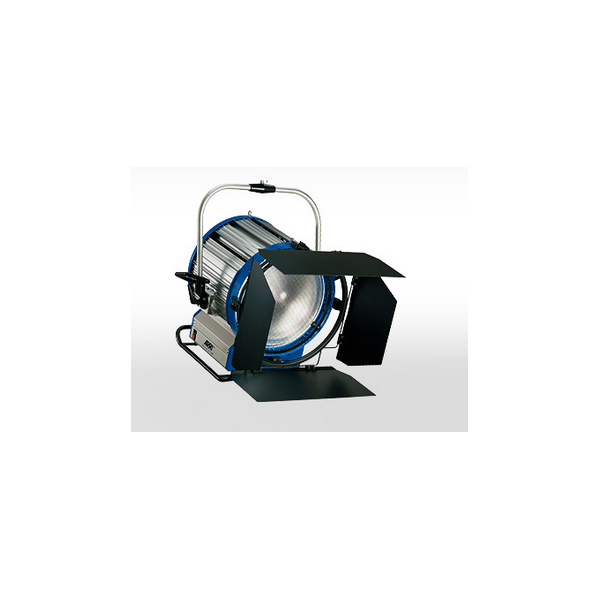

Where a lightweight Fresnel spotlight using daylight characteristics with compact size and high efficiency are needed, ARRI Daylight Fresnels are the preferred choice. ARRI's elegant modular construction, using corrosion-resistant aluminium extrusions and lightweight die castings, offers great structural strength and weather resistance. Together with ARRI flicker-free Electronic Ballasts, this rugged HMI Fresnel is ideal for all types of location lighting.
Features:
Large, high efficiency wide-angle lenses
Corrosion-resistant aluminium construction
Extremely even light distribution
Focus knob on front and rear
Easy service access
Specification:
Lamphead Type:
Fresnel, 18000 W
Reflector Type:
Spherical specular high purity aluminum
Lamp Type:
Metal Halide 18000 W/DE Metal Halide 12000 W/DE
Power Consumption:
18000 W / 12000 W
Voltage Range:
225 V / 160 V
Lamp Base:
S30
Dimmability:
Yes, 50 - 100% via ARRI Ballast Unit
Cable Options:
VEAM
Correlated Color Temperature:
6000 K
Beam Angle:
15°- 50°
Product Weight:
69,5 kg / 153.2 lbs.
Shipping Weight:
114,0 kg / 251.3 lbs. (incl. pallet)
Product Size (HxWxL):
1058 x 1040 x 825 mm / 41.7" x 40.9" x 32.5"
Shipping Size (HxWxL):
1135 x 1170 x 1050 mm / 44.7" x 46.1" x 41.3"
Lens Diameter:
625 mm / 24.61"
Accessory Diameter:
740 mm / 29.13"
Barndoor Size:
740 mm / 29.13"
Mounting:
Spigot 28 mm / 1 1/8" (1.1")
Protection Class:
I/IP 23
Certifications:
CE, CB, GS, cNRTL
code:
