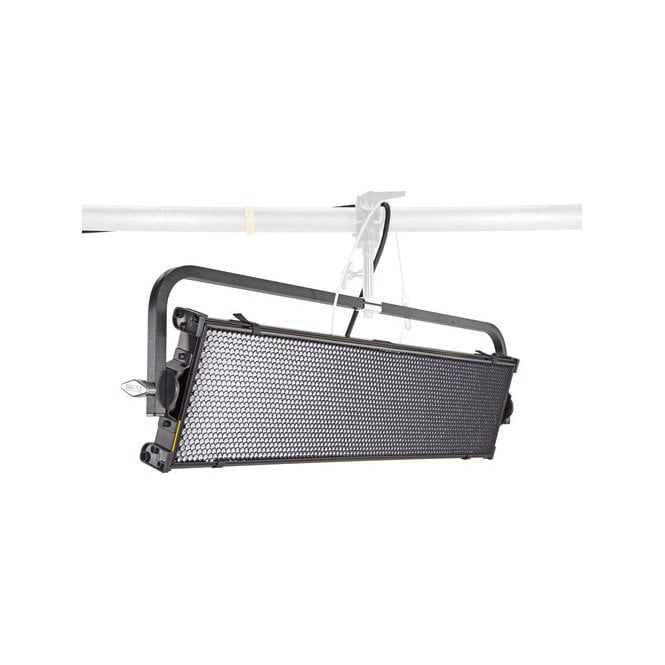

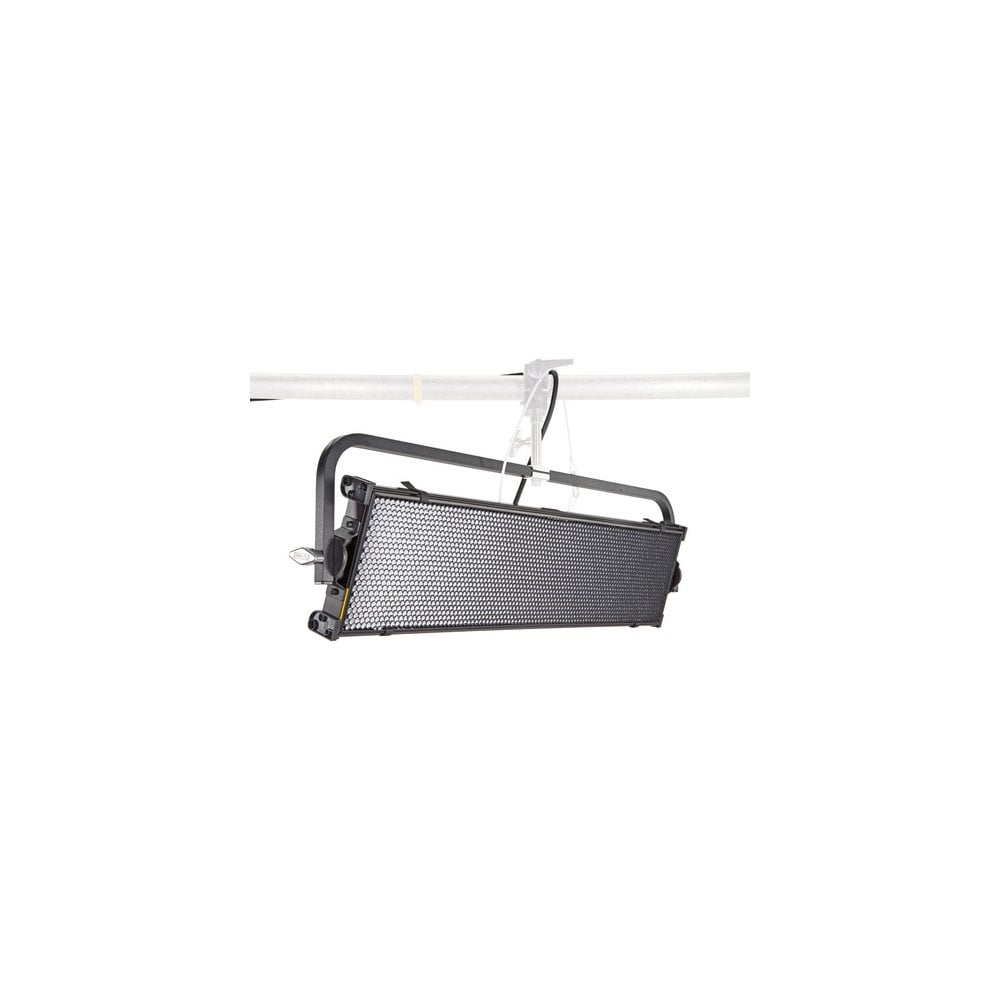

Kino Flo DIV-L31XYU Diva-Lite 31 LED DMX Panel

code: DIV-L31XYU
  • £2,560.00
  • RRP: £2,560.00
Item Available | Usually dispatched within 24 hours
Loading...

Features:

  • 42 x 12 x 4.5"
  • Variable Color Temperature: 2700-6500K
  • Extended Range: 2500-9900K
  • CRI: 95, Multiple Color Presets

Kino Flo DIV-L31XYU (L31XYU, DIVL31XYU, DIV_L31XYU, DIV/L31XYU) Diva-Lite 31 LED DMX Panel

Flexibility and comprehensive control options are key to the production of the Yoke Mount Diva-Lite 31 LED DMX Panel from Kino Flo. The 42 x 12 x 4.5" panel uses three menus with features that can be controlled on the light via traditional wired DMX or by Lumen Radio wireless DMX with separate purchase of a Lumen transmitter. The White menu allows control of 1-100% dimming, color control from 2700-6500K, and Green/Magenta control.

There are two Color menus. The first offers an extended color range from 2500-9900K and includes a channel called "Gel" that offers multiple presets for light conditions such as mercury-vapor and 100 often used gel filters. There are also channels for Hue Angle and Saturation that work together by selecting a specific color and determining the intensity of it. The second color menu provides RGB (Red, Green, Blue) control to permit a user-selected combination to obtain any color in the visible spectrum. The Diva-Lite 31 is ready for worldwide use thanks to its 100-240 VAC power supply. The light comes with a 90-degree honeycomb grid to tighten its light beam and limit spill light. A 60-degree grid is available as an option. Both 120U and 230U power cords are included for maximum flexibility. This version of the Diva-Lite 31 has a Yoke Mount that allows the fixture to be stand mounted or hung overhead.

Precise Color Control

Kelvin presets

Dial-in color temperature control between 2700-6500K

Extended color palette from 2500-9900K

Green/magenta control

Hue angle and saturation adjustments

RGB control

Works with apps with predetermined RGB presets or color wheels

Can use preset buttons to store custom Kelvin settings

Light levels do not change when selecting Kelvin settings

No color shift while dimming (100-1%)

Color-correct with high color rendering index (CRI 95)

Control

Full range onboard and DMX dimming

Built-in DMX wireless link (Lumen Radio)

DMX auto terminate

Efficient Universal Power Supply, Low Draw

Universal input 100-240 VAC or 24 VDC

Energy efficient, low energy draw

Flicker-free, quiet operation

Light Modifiers and Construction

Fixture includes removable 90° honeycomb louver

60° honeycomb louver also available separately



Slim profile

View More Details

Light Fixture

  • Color Temperature: 2500 to 9900K
  • Color Accuracy Standard: CRI 95
  • Cooling System: Passive
  • Dimming: Yes, 1 to 100% (Continuous)

Photometrics:

  • 161 fc / 1732.4 lux at 4' / 1.22 m
  • 43 fc / 462.7 lux at 8' / 2.44 m
  • 20 fc / 215.2 lux at 16' / 4.88 m
  • Fixture Dimensions: 42.0 x 12.0 x 4.5" / 106.7 x 30.5 x 11.4 cm (Including Yoke)
  • Fixture Weight: 14.4 lb / 6.53 kg (Including Yoke)

Connectors

  • Battery Plate: None
  • Power Input Connector: IEC

Mounting

  • Fixture Mount: None
  • Accessory Mount: None

Yoke

  • Yoke Type: Hanging

Remote Operation

  • Remote Control Type: DMX
  • Number of DMX Channel Modes: 3

Power

  • AC Input Power: 100 to 240 VAC, 50 / 60 Hz
  • Power Source: AC Adapter
  • Max Power Consumption: 150 W
View More Details

In The Box:

  • Kino Flo Diva-Lite 31 LED DMX Panel (Yoke Mount)
  • 120U Power Cord
  • 230U Power Cord
  • Kino Flo 90-Degree Honeycomb Louver for Celeb 850 LED DMX
View More Details
