Kino Flo Diva-Lite 31 LED DMX Center Mount Kit with Travel Case

Kino Flo KIT-DL31XU (DL31XU, KIT_DL31XU, KIT/DL31XU, KITDL31XU) Diva-Lite 31 LED DMX Center Mount Kit with Travel Case

Kino Flo has created the Diva-Lite 31 LED DMX Center Mount Kit with Travel Case for image-makers who need to take studio quality lighting on the road. The kit includes a variable color Diva-Lite 31 LED DMX Panel with hue, saturation, and RGB control. A 90-degree grid is included to control the beam spread and a hard travel case is provided for storage and transport

Kino Flo Diva-Lite 31 LED DMX Panel (Center Mount)

Flexibility and comprehensive control options are key to the production of the Center Mount Diva-Lite 31 LED DMX Panel from Kino Flo. The 37.5 x 9.5 x 4.5" panel uses three menus with features that can be controlled on the light via traditional wired DMX or by Lumen Radio wireless DMX with separate purchase of a Lumen transmitter. The White menu allows control of 1-100% dimming, color control from 2700-6500K, and Green/Magenta control.

There are two Color menus. The first offers an extended color range from 2500-9900K and includes a channel called "Gel" that offers multiple presets for light conditions such as mercury-vapor and 100 often used gel filters. There are also channels for Hue Angle and Saturation that work together by selecting a specific color and determining the intensity of it. The second color menu provides RGB (Red, Green, Blue) control to permit a user-selected combination to obtain any color in the visible spectrum. The Diva-Lite 31 is ready for worldwide use thanks to its 100-240 VAC power supply. The light comes with a 90-degree honeycomb grid to tighten its light beam and limit spill light. A 60-degree grid is available as an option. Both 120U and 230U power cords are included for maximum flexibility. This version of the Diva-Lite 31 has a Center Mount that allows the fixture to spin 360 degrees to produce a wide range of desired angles.

Precise Color Control

Kelvin presets

Dial-in color temperature control between 2700-6500K

Extended color palette from 2500-9900K

Green/magenta control

Hue angle and saturation adjustments

RGB control

Works with apps with predetermined RGB presets or color wheels

Can use preset buttons to store custom Kelvin settings

Light levels do not change when selecting Kelvin settings

No color shift while dimming (100-1%)

Color-correct with high color rendering index (CRI 95)

Control

Full range onboard and DMX dimming

Built-in DMX wireless link (Lumen Radio)

DMX auto terminate

Efficient Universal Power Supply, Low Draw

Universal input 100-240 VAC or 24 VDC

Energy efficient, low energy draw

Flicker-free, quiet operation

Light Modifiers and Construction

Fixture includes removable 90° honeycomb louver

60° honeycomb louver also available separately

Slim profile

Kino Flo Wheeled FreeStyle/GT 31 Travel Case (Yellow)

Store, transport, and protect your Kino Flo FreeStyle/GT 31 LED and stand with the yellow Wheeled Travel Case from Kino Flo. The case features latches, built-in wheels, and a top handle.

Item Type 1 x LED Light Panel

Included Light Modifier 1 x Grid/Louver

Included Filters Soft Diffusion (Built-In)

Photometrics 239 fc / 2578 Lux at 3.3' / 1 m*

161 fc / 1732 Lux at 4' / 1.22 m

43 fc / 463 Lux at 8' / 2.44 m

20 fc / 215 Lux at 16' / 4.88 m

*Standardized Measurement Calculated Internally Based on Closest Distance

Color Temperature 2500 to 9900K

Color Modes RGB

Color Accuracy Standard CRI 95

Cooling System Passive

Dimming Yes, Built-In Dimmer

1 to 100% (Continuous)

Front Accessory Mount Proprietary

Connectivity

Wireless Remote Control Type Wireless DMX

Wireless CRMX

Max DMX Control Channels 3

Power & I/O

Power Source AC Power (Cable Included)

Battery (Included)

Inputs/Outputs Light Fixture

To Power Supply/Controller: 1 x Built-In Cable with Unspecified Power/DMX Input

Power Supply/Controller

To Light Fixture: 1 x Unspecified Power/DMX Output

1 x XLR 5-Pin DMX Input

1 x XLR 5-Pin DMX Output

1 x XLR 3-Pin Power Input

1 x IEC Power Input

AC Input Power 100 to 240 VAC, 50 / 60 Hz at 1.3 A

DC Input Power 24 VDC

Included Adapter / Cable 1 x Edison Plug to IEC Cable

Inline Switch No

Power Pass-Thru No

Power Consumption 150 W

Mounting

Fixture Mounting 1 x Lollipop Receiver

Included Adapter 1 x Lollipop Mount: 5/8" Receiver to Lollipop Ball

General

Dimensions 37.5 x 9.5 x 4.5" / 95.2 x 24.1 x 11.4 cm (Fixture with Yoke)

Weight 13.9 lb / 6.3 kg (Fixture with Mount)

Packaging Info

Package Weight 19.6 lb

Box Dimensions (LxWxH) 42 x 14.5 x 8"

Kino Flo Wheeled FreeStyle/GT 31 Travel Case (Yellow) Specs

Exterior

Closure Type Latch

Carry and Transport Options Top Handle

Casters 2

Material of Construction Plastic

Exterior Dimensions (W x H x D) 45.5 x 16.5 x 9" / 115.6 x 42 x 23 cm

Weight 19.2 lb / 8.7 kg

Packaging Info

Package Weight 22.1 lb

Box Dimensions (LxWxH) 47 x 17 x 10"

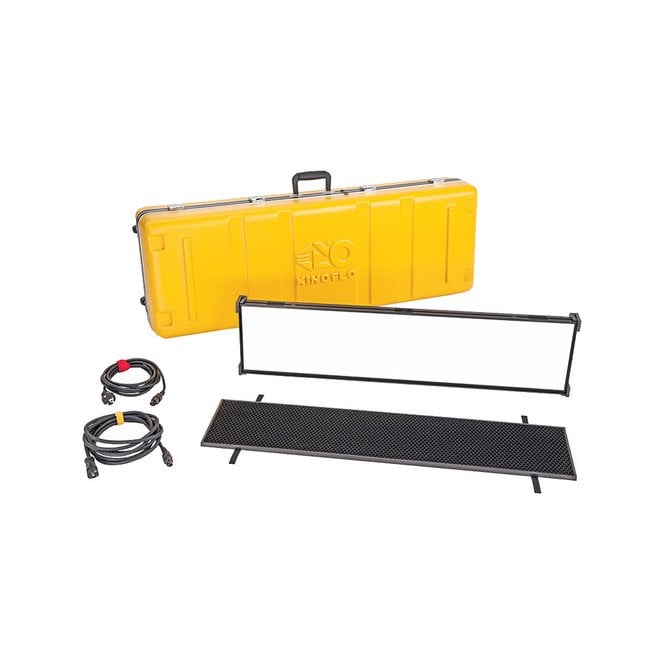

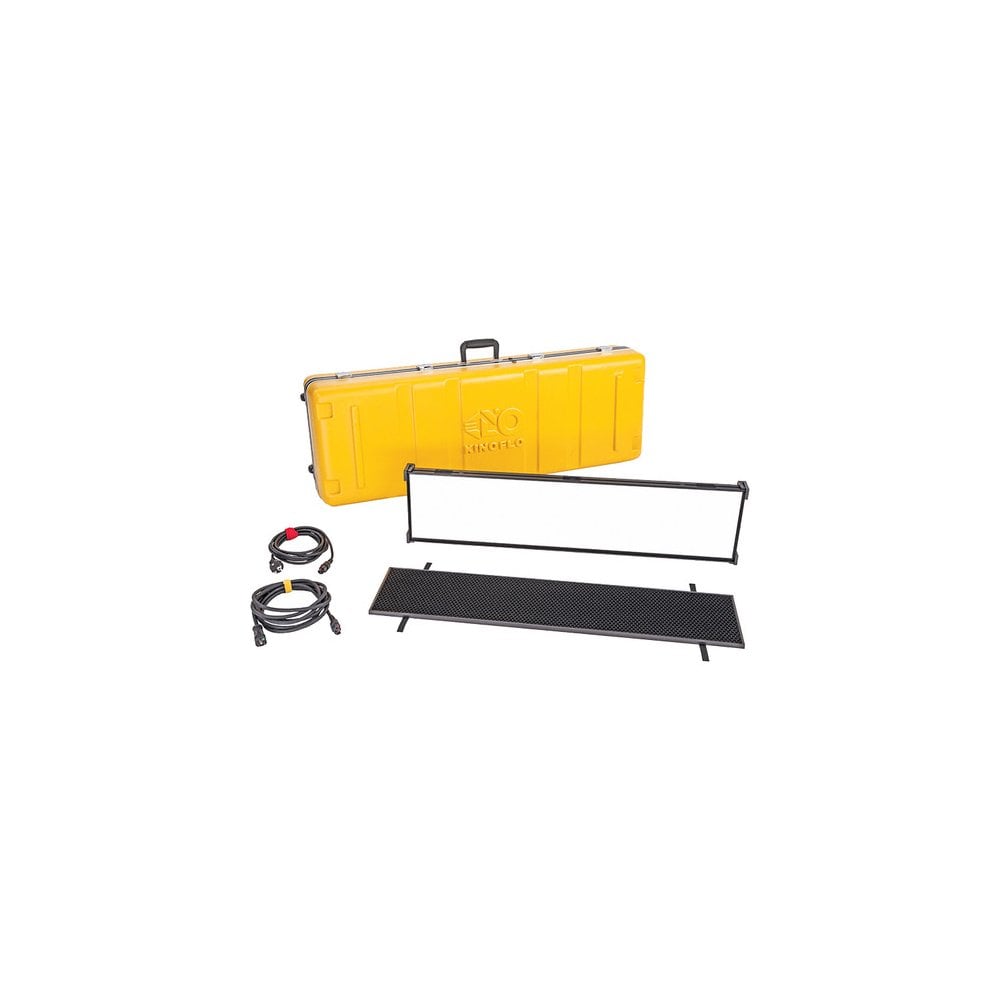

In The Box:

• Kino Flo DIV-L31XCU Diva-Lite 31 LED DMX Fixture
• Centre Mount
• KAS-DL31-C Travel Case
• MTP-LBC 41 Lollipop with Baby Receiver Curve (16mm)
• 90 deg. Honeycomb Louver
