Kino Flo Diva-Lite 20 Led Dmx Kit

Kino Flo Diva-Lite 20 Led Dmx Kit(KIT-DL20XBU)

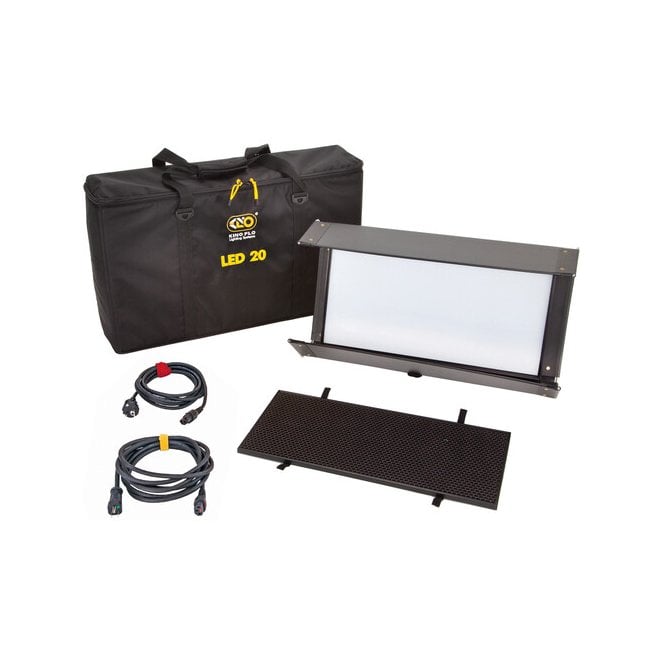

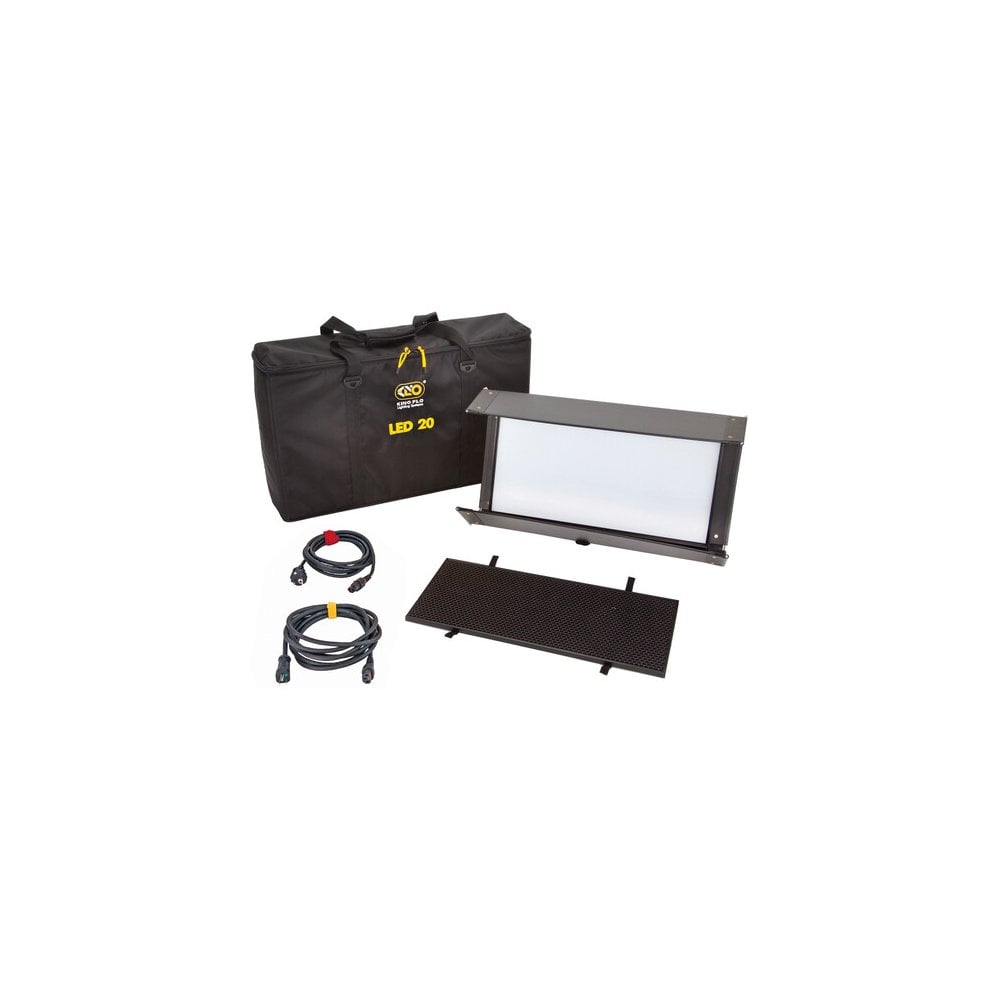

Kino Flo has put together this Diva-Lite 20 LED DMX Kit with Soft Case for image makers who require flexibility in color temperature and worldwide power compatibility. The kit includes the 25 x 13 x 6" Diva-Lite 20, with a 100-240 VAC power supply and color temperature that's variable from 2700 to 6500K. Also included is a padded carry case for storage and transport.

Kino Flo Diva-Lite LED 20 DMX

The Diva-Lite LED 20 DMX from Kino Flo combines a popular, time-tested form factor with the latest in LED technology. The light offers a high CRI of 95 and variable color temperature from 2700 to 6500K with magenta/green hue control to match the spectral curves on different cameras and other light sources on the set. Flicker-free, full range dimming without color shift is also offered. The 25 x 13 x 6" Diva-Lite 20 offers manual onboard or DMX512 control of all of these functions. In fact, the fixture has a built-in Lumen Radio receiver for wireless DMX control. The Diva-Lite LED 20 DMX's 100-240 VAC make it ready for worldwide use. Alternatively, it can run on pro batteries when mains power is unavailable. The light comes with a 90-degree honeycomb grid and a lollipop mount with a 5/8" receiver.

Item Type 1 x LED Light Panel

Included Light Modifier 2 x Barndoor Leaf (Built-In)

1 x Grid/Louver

Included Storage Case None

Lumens Not Specified by Manufacturer

Photometrics 224 fc / 2409 Lux at 3.3' / 1 m*

59 fc / 634 Lux at 6.6' / 2 m

15 fc / 164 Lux at 13.1' / 4 m

10 fc / 106 Lux at 16.4' / 5 m

*Standardized Measurement Supplied by the Manufacturer

Color Temperature 2700 to 9000K

Color Modes RGB, Daylight, Tungsten

Color Accuracy Standard CRI 95

Cooling System None

Dimming Yes, Built-In Dimmer

1 to 100%

Built-In Flash No

Umbrella Mount No

Connectivity

Wireless Remote Control Type Wireless DMX (LumenRadio)

Mobile App Compatible No

*As of November, 2022: Check with manufacturer for the most up-to-date compatibility

Power & I/O

Power Source AC Power (Cable Included)

Battery (Not Included)

Inputs/Outputs 1 x IEC AC Power Input

1 x XLR 3-Pin AC Power/ Input (18 to 36 VDC)

1 x XLR 5-Pin DMX Input

1 x XLR 5-Pin DMX Output

AC Input Power 100 to 240 VAC, 50 / 60 Hz at 1.3 A

DC Input Power 18 to 36 VDC

Included Adapter / Cable 1 x Edison Plug to IEC Cable

Inline Switch No

Power Pass-Thru No

Power Consumption 150 W (Maximum)

Mounting

Fixture Mounting Support Mount

Lollipop Receiver

Included Adapter 1 x Lollipop Mount: 5/8" Receiver

Environmental

Operating Temperature 14.0 to 104.0°F / -10.0 to 40.0°C

General

Display Yes

Dimensions 25 x 13 x 6" / 63.5 x 33 x 15 cm

Weight 14.5 lb / 6.5 kg

Packaging Info

Package Weight 20.5 lb

Box Dimensions (LxWxH) 27.4 x 15.3 x 7.9"

In the Box

Kino Flo Diva-Lite LED 20 DMX

Kino Flo Louver for Diva-Lite 20 (90°)

Kino Flo MTP-LBC 41 Lollipop with Baby Receiver Curve (16mm)

Gel Frame

Kino Flo Soft Case for Select 20 Fixture and Accessories (Black)
