Kino Flo FreeStyle 21 LED DMX Kit, Univ with Soft Case

Kino Flo KIT-F21BU (KIT_F21BU, KITF21BU, KIT/F21BU, KIT F21BU) FreeStyle 21 LED DMX Kit, Univ with Soft Case.

TrueMatch 3.0 transforms Kino Flo LED's into Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse and Scroll effects simulators with the press of a button. Each special effects mode comes with a choice of FX types. Lightning, for example, has "Storm" and "Frankenstein". The Storm effect is modelled on the rate and amplitude of thunderstorm strikes, and Frankenstein displays brighter, more cinematic light flashes. There is also rate control, and a cue feature using the power button.

FreeStyle 21 LED DMX:

Kino Flo’s new FreeStyle 41, 31 & 21 LED’s come with The Celeb 250 has four Menu options, the white Menu, the Gel Menu, RGB Menu and the special effect Menu. Those who prefer to work with white light only can use the "white menu" that gives the user access to Dimming, Kelvin and Green/Magenta control channels. Kelvin range is from 2700K tungsten to 6500K daylight. In the Gel Menu, the Kelvin range travels from 2500K tungsten to 9900K daylight, and Kino Flo has set up a fourth channel called Gel. The Gel channel includes Kino Flo presets such as blue & green screen, sodium vapour, mercury vapour and over 100 well-known lighting gels.

In addition, there is also a fifth channel called Hue Angle and sixth channel, Saturation. These two channels behave like a traditional colour wheel, where you have white light in the centre, and the Hue angle determines the colour along a 360-degree range, and Saturation determines how much colour is applied. The second colour Menu provides individual red, green, blue (RGB) control. The RGB Menu is a great way to work with apps with predetermined RGB presets or colour wheels. The newly introduced Special Effects Menu gives full access to Kino Flo designed effects like Fire, TV, Police, Paparazzi and many more.

In addition, the user can fine tune these effects to his needs and safe them on the preset buttonsFor additional versatility, the FreeStyle LED panel can be easily removed from the housing and mounted onto a stand or handheld with the new KinoGrip. Kino Flo's new FreeStyle LED’s also come with standard DMX and wireless DMX (Lumen Radio®), 24VDC input, and universal voltage input 100-240VAC (0.65 Amps at 230U). Kino Flo also recently added new SnapBag Softbox and SnapGrid accessories.

Item Type 1 x LED Light Panel

Included Light Modifier 1 x Grid/Louver

Included Filters Soft Diffusion (Built-In)

Photometrics 165 fc / 1778 Lux at 3.3' / 1 m*

661 fc / 7113 Lux at 1.6' / 0.5 m

104 fc / 1121 Lux at 4.9' / 1.5 m

59 fc / 634 Lux at 6.6' / 2 m

38 fc / 412 Lux at 8.2' / 2.5 m

27 fc / 288 Lux at 9.8' / 3 m

20 fc / 212 Lux at 11.5' / 3.5 m

15 fc / 164 Lux at 13.1' / 4 m

12 fc / 131 Lux at 14.8' / 4.5 m

10 fc / 106 Lux at 16.4' / 5 m

*Standardized Measurement Supplied by the Manufacturer

Color Temperature 2500 to 9900K

Color Modes RGB

Color Accuracy Standard CRI 96

TLCI 96

Dimming Yes, Built-In Dimmer

0 to 100% (Continuous)

Front Accessory Mount Proprietary

Power & I/O

Power Source AC Power (Cable Not Included) *Requires Power Supply/Controller (Not Included)

Battery (Not Included) *Requires Power Supply/Controller (Not Included)

Inputs/Outputs Light Fixture

To Power Supply/Controller: 1 x Built-In Cable with Unspecified Power/DMX Input

Power Supply/Controller

To Light Fixture: 1 x Unspecified Power/DMX Output

1 x XLR 5-Pin DMX Input

1 x XLR 5-Pin DMX Output

1 x XLR 3-Pin Power Input

1 x IEC Power Input

AC Input Power 100 to 240 VAC, 50 / 60 Hz

Inline Switch No

Power Pass-Thru No

Power Consumption 150 W

Mounting

Fixture Mounting 1 x Lollipop Receiver

Included Adapter 1 x Lollipop Mount: 5/8" Receiver to Lollipop Ball

General

Dimensions 23 x 11.5" / 58.4 x 29.2 cm (Fixture Panel)

26.5 x 13 x 3.5" / 67.3 x 33 x 8.9 cm (Fixture)

Weight 7 lb / 3.2 kg

11.5 lb / 5.2 kg (Fixture with Mount)

Kino Flo LED Controller For Kino Flo Select 20 And 30 Fixtures Specs

Power VAC: 100 to 240 V @ 50/60 Hz, 150 W

VDC: 18 to 36 V, 150 W

1.3 A @ 120 VAC, 7.0 A at 24 VDC

Color Temperature 2700 to 6500K in White Menu

2500 to 9900K in Color Menu

Dimming 100 - 1%

Dimensions 15 x 4.5 x 3.0" (38 x 11.5 x 8.0 cm)

Weight 4.5 lb (2.0 kg)

Packaging Info

Package Weight 4.95 lb

Box Dimensions (LxWxH) 16.9 x 7.1 x 3.9"

Kino Flo KinoGrip K41 Twist-On Mount With 5/8" Baby Receiver Specs

Mount 5/8" / 16 mm Baby Receiver

Packaging Info

Package Weight 2.15 lb

Box Dimensions (LxWxH) 12.2 x 5.6 x 3.1"

Kino Flo Extension Cable 150 For Select LED System (25') Specs

Packaging Info

Package Weight 2.15 lb

Box Dimensions (LxWxH) 11.6 x 9.58 x 1.18"

Kino Flo Soft Case For Select 20 Fixture And Accessories (Black) Specs

Exterior

Closure Type Zipper

Carry and Transport Options Top Handle

Material of Construction Nylon

Exterior Dimensions (W x H x D) 31 x 7.5 x 18" / 79 x 19 x 46 cm

Weight 5 lb / 2.3 kg

Packaging Info

Package Weight 7.5 lb

Box Dimensions (LxWxH) 30.12 x 17.17 x 7.78"

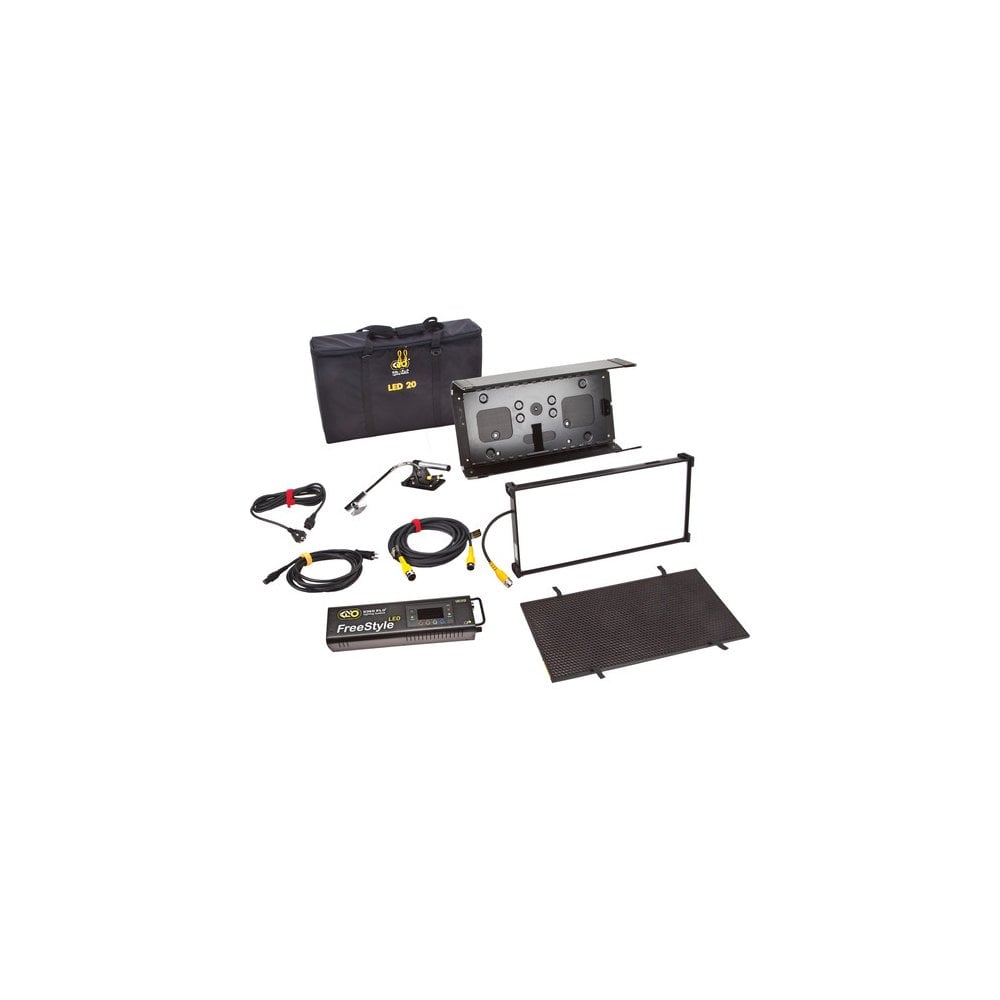

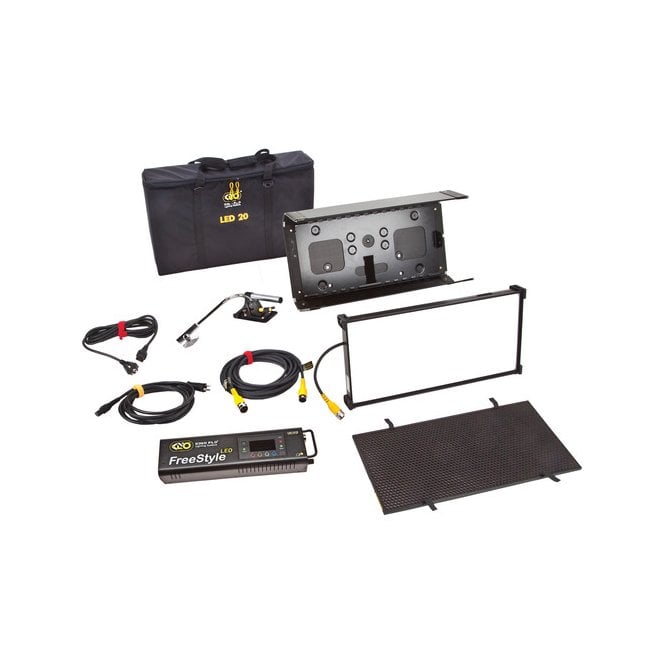

In the Box

Kino Flo FreeStyle 21 LED Fixture

90-Degree Louver (Grid)

Kino Flo LED Controller for Kino Flo Select 20 and 30 Fixtures

Kino Flo KinoGrip K41 Twist-On Mount with 5/8" Baby Receiver

Kino Flo Extension Cable 150 for Select LED System (25')

Kino Flo Soft Case for Select 20 Fixture and Accessories (Black)
