Kino Flo FreeStyle 41 LED DMX System, Univ

Kino Flo FreeStyle 41 LED DMX System, Univ(SYS-F41U)

Kino Flo’s FreeStyle 41 LED's come with  four Menu options, the white Menu, the Gel Menu, RGB Menu and the special effect Menu. Those who prefer to work with white light only can use the "white menu" that gives the user access to Dimming, Kelvin and Green/Magenta control channels. Kelvin range is from 2700K tungsten to 6500K daylight.

In the Gel Menu, the Kelvin range travels from 2500K tungsten to 9900K daylight, and Kino Flo has set up a fourth channel called Gel. The Gel channel includes Kino Flo presets such as blue & green screen, sodium vapor, mercury vapor and over 100 well-known lighting gels. In addition, there is also a fifth channel called Hue Angle and sixth channel, Saturation. These two channels behave like a traditional colour wheel, where you have white light in the center, and the Hue angle determines the colour along a 360-degree range, and Saturation determines how much colour is applied. The second colour Menu provides individual red, green, blue (RGB) control. The RGB Menu is a great way to work with apps with predetermined RGB presets or colour wheels.

The Special Effects Menu gives full access to Kino Flo designed effects like Fire, TV, Police, Paparazzi and many more. In addition, the user can fine tune these effects to his needs and safe them on the preset buttons

For additional versatility, the FreeStyle LED panel can be easily removed from the housing and mounted onto a stand or handheld with the Kino Flo KinoGrip.

Kino Flo's FreeStyle LED’s also come with standard DMX and wireless DMX (Lumen Radio®), 24VDC input, and universal voltage input 100-240VAC (0.65 Amps at 230U).

Item Type 1 x LED Light Panel

Included Light Modifier 1 x Barndoors (Built-In)

1 x Grid/Louver

Included Filters Soft Diffusion (Built-In)

Photometrics 228 fc / 2450 Lux at 3.3' / 1 m*

635 fc / 6840 Lux at 1.6' / 0.5 m

112 fc / 1210 Lux at 4.9' / 1.5 m

66 fc / 712 Lux at 6.6' / 2 m

43 fc / 462 Lux at 8.2' / 2.5 m

30 fc / 325 Lux at 9.8' / 3 m

23 fc / 242 Lux at 11.5' / 3.5 m

18 fc / 189 Lux at 13.1' / 4 m

14 fc / 153 Lux at 14.8' / 4.5 m

11 fc / 123 Lux at 16.4' / 5 m

*Standardized Measurement Supplied by the Manufacturer

Color Temperature 2500 to 9900K

Color Modes RGB

Color Accuracy Standard CRI 96

TLCI 96

Dimming Yes, Built-In Dimmer

0 to 100% (Continuous)

Front Accessory Mount Proprietary

Connectivity

Wireless Remote Control Type Wireless DMX *Adapter Required (Not Included)

Power & I/O

Power Source AC Power (Cable Not Included) *Requires Power Supply/Controller (Not Included)

Battery (Not Included) *Requires Power Supply/Controller (Not Included)

Inputs/Outputs Light Fixture

To Power Supply/Controller: 1 x Built-In Cable with Unspecified DMX/Power Input

Power Supply/Controller

To Light Fixture: 1 x Unspecified DMX/Power Output

1 x XLR 5-Pin DMX Input

1 x XLR 5-Pin DMX Output

1 x XLR 3-Pin Power Input

1 x IEC Power Input

AC Input Power 100 to 240 VAC, 50 / 60 Hz

Inline Switch No

Power Pass-Thru No

Power Consumption 150 W

Mounting

Fixture Mounting 1 x Lollipop Receiver

Included Adapter 1 x Lollipop Mount: 5/8" Receiver to Lollipop Ball

General

Dimensions 49.5 x 7.5" / 125.7 x 19.1 cm (Fixture Panel)

52.5 x 9 x 4" / 133.3 x 22.9 x 10.2 cm (Fixture)

Weight 10 lb / 4.5 kg

16 lb / 7.3 kg (Fixture with Mount)

Packaging Info

Package Weight 15.95 lb

Box Dimensions (LxWxH) 53 x 9 x 3.5"

Kino Flo LED Controller For Kino Flo Select 20 And 30 Fixtures Specs

Power VAC: 100 to 240 V @ 50/60 Hz, 150 W

VDC: 18 to 36 V, 150 W

1.3 A @ 120 VAC, 7.0 A at 24 VDC

Color Temperature 2700 to 6500K in White Menu

2500 to 9900K in Color Menu

Dimming 100 - 1%

Dimensions 15 x 4.5 x 3.0" (38 x 11.5 x 8.0 cm)

Weight 4.5 lb (2.0 kg)

Packaging Info

Package Weight 4.95 lb

Box Dimensions (LxWxH) 16.9 x 7.1 x 3.9"

Kino Flo KinoGrip K41 Twist-On Mount With 5/8" Baby Receiver Specs

Mount 5/8" / 16 mm Baby Receiver

Packaging Info

Package Weight 2.15 lb

Box Dimensions (LxWxH) 12.2 x 5.6 x 3.1"

Kino Flo Extension Cable 150 For Select LED System (25') Specs

Packaging Info

Package Weight 2.15 lb

Box Dimensions (LxWxH) 11.6 x 9.58 x 1.18"

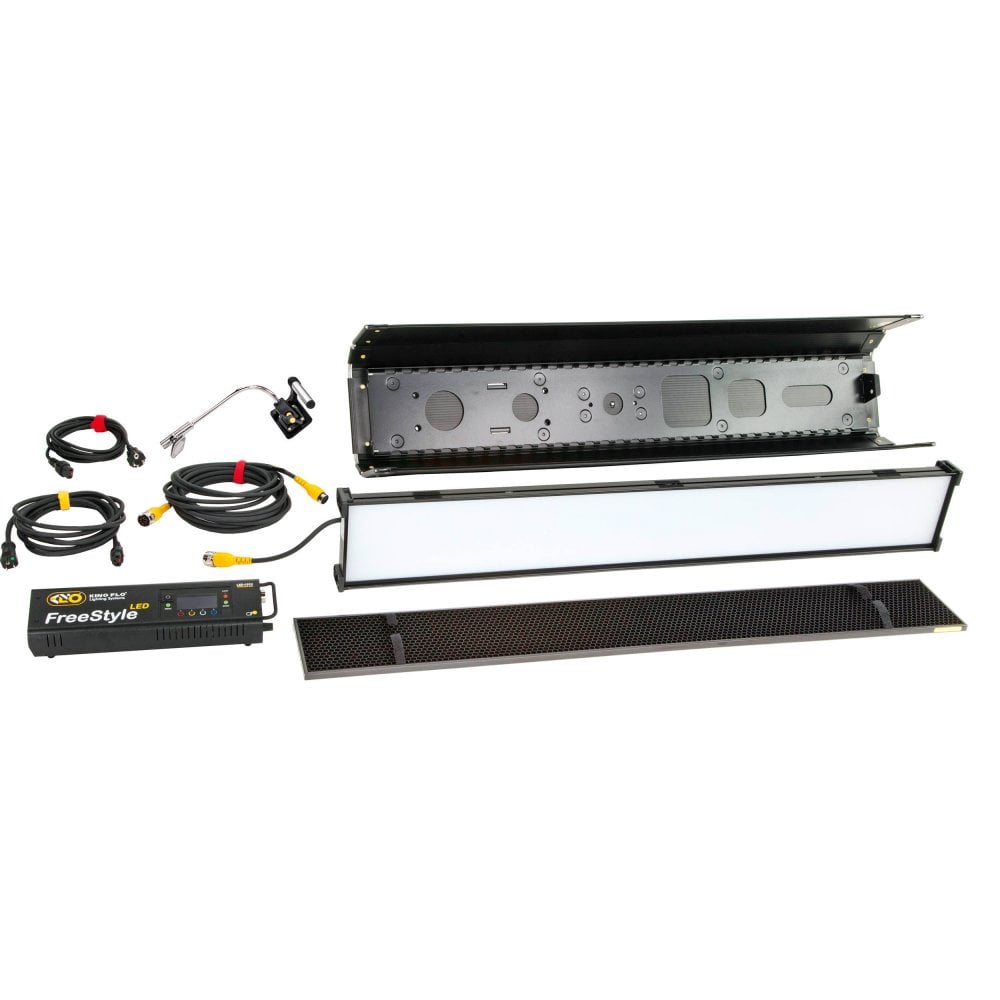

In the Box

1x FreeStyle 41 LED Fixture

1x Select 150 LED DMX Controller

1x MTP-BG41 Mount w/ Baby Receiver (16mm)

1x Extension, 25ft
