Kino Flo Image L40 Led Dmx Yoke Mount Kit

code: KIT-IML40U

£3,779.21
Secure yours with a deposit of
RRP: £4,799.00
|
|

Status | Usually dispatched within 24 hours

Add to Compare

Kelvin presets

Dial-in color temperature control between 2700K-6500K

Extended color palette from 2500K-9900K

Green/Magenta Control

Hue angle and Saturation adjustments

RGB Control

FX Control

Works with Apps with predetermined RGB presets or color wheels

Can use preset buttons to store custom Kelvin settings

Light levels do not change when selecting Kelvin settings

No color shift while dimming

Color-correct with high color rendering index (CRI 95)

Universal input 100VAC-240VAC

Energy efficient, draws 2A, 120VAC

Flicker-free, quiet operation

Full range onboard and DMX dimming

DMX wireless link (Lumen Radio®)

DMX Auto Terminate

Metal Alloy fixture includes removable Gel Frame, Louver and cardholders

Slim profile

Mounts to stand or can hang easily from a grid

Traditional Yoke Mount with two position setting, Pole-Op

Description
Specification
Included In Box
Reviews
(0)

Kino Flo Image L40 Led Dmx Yoke Mount Kit(KIT-IML40U)

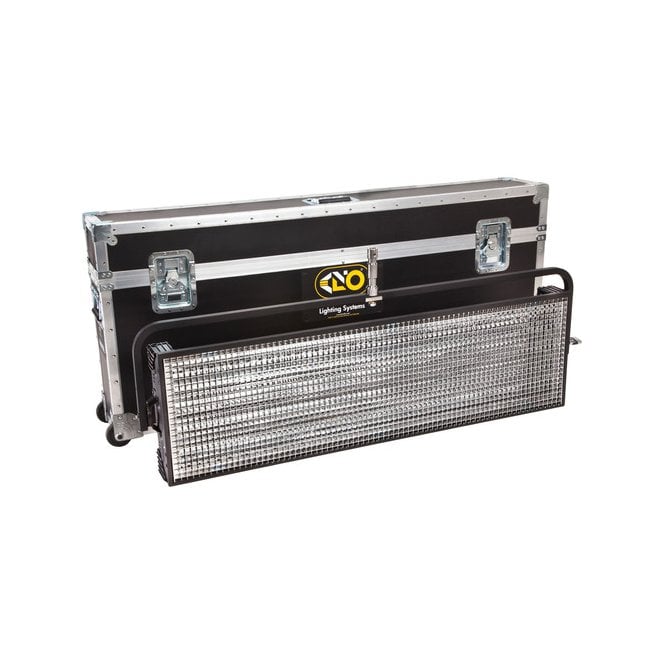

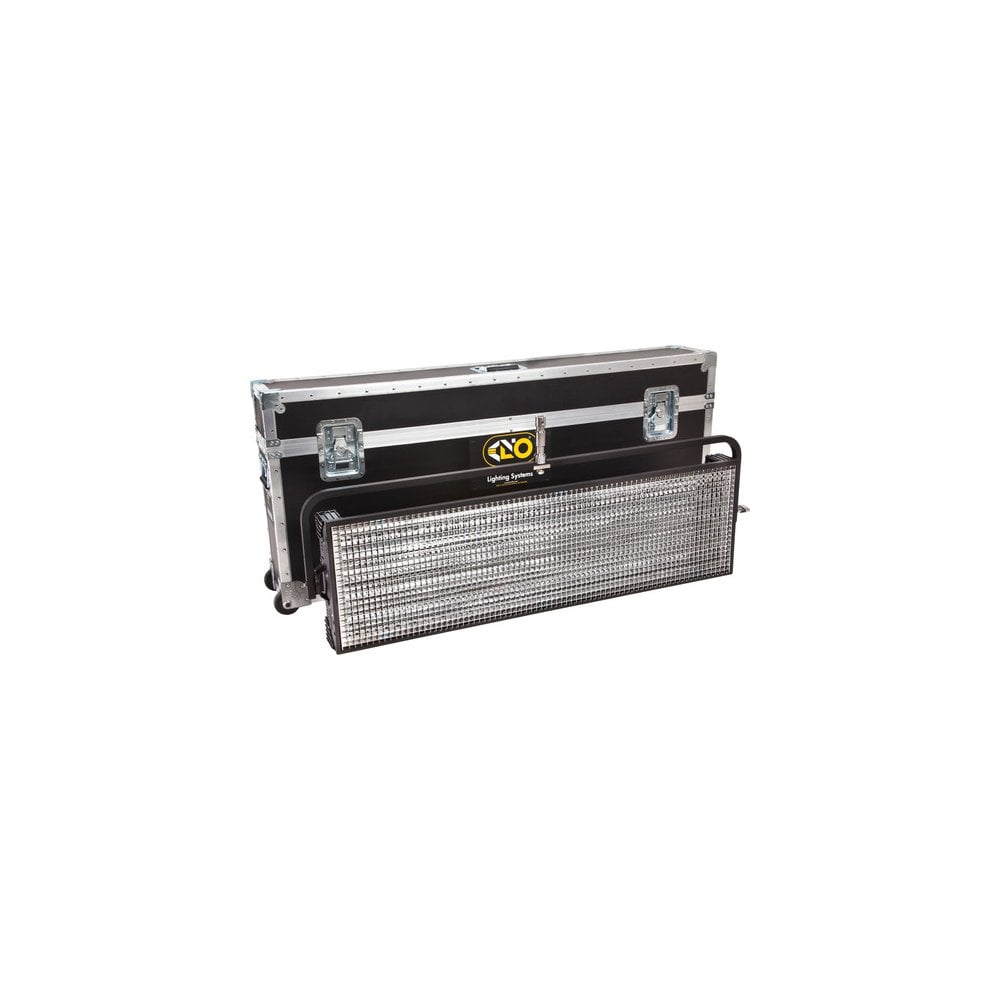

The Image L40 DMX LED Kit with Yoke Mount was put together by Kino Flo for image-makers who need to take precise lighting gear with sophisticated color control on location. The kit includes a 54 x 17 x 6.5" Image L40 DMX LED Panel with a louver (grid) and filter frame. A Junior pin is provided for stand mounting or hanging. A hard 58 x 25.5 x 9.5" wheeled shipping case with recessed latches and handles is included for storage and transport.

Kino Flo Image L40 DMX LED Panel with Yoke Mount

Flexibility and extensive control options are key to the production of the Image L40 DMX LED Panel with Yoke Mount from Kino Flo. The 54 x 6.5 x 17" panel employs four menus with several channels that have features that can be controlled on the light via traditional wired DMX or by Lumen Radio wireless DMX. The White menu allows control of 1 to 100% dimming, color control from 2700 to 6500K, and Green/Magenta control. There are two color menus. In the Gels/Hue menu, the Kelvin range is extended to 2500 to 9900K.

Among the channels is one called Gel that offers multiple presets for light conditions, such as mercury-vapor, and 100 often-used gel filters. A channel called Hue Angle (Hue) and another called Saturation (Sat) are also included in the Gel menu and function together like a 360-degree color wheel making over two million color combinations available.

The second color menu provides RGB (Red, Green, Blue) control, permitting a user-selected combination to obtain any color in the visible spectrum. The RGB menu also allows you to dial in specific gel RGB values or control colors from a DMX console. Finally, there's an FX menu that creates effects such as Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse, and Scroll. Within each effect there are presets that vary the parameters or change the rate of the chosen effect.

The Image L40 is ready for worldwide use thanks to its 100 to 240 VAC power supply. The light comes with a 90-degree honeycomb grid to tighten its beam angle and limit spill light, providing directional control for selective lighting. This version of the light has a Yoke Mount. The yoke has a hole to accept industry-standard hardware such as a pin or receiver.

Benefits

Kelvin presets

Dial-in color temperature control between 2700 and 6500K

Extended color palette from 2500 to 9900K

Green/magenta control

Hue angle and saturation adjustments

RGB control

FX control

Works with apps with predetermined RGB presets or color wheels

Can use preset buttons to store custom Kelvin settings

Light levels do not change when selecting Kelvin settings

No color shift while dimming

Color-correct with a high CRI/TLCI rating

Universal power input: 100 to 240 VAC

Energy efficient, draws 2A at 120 VAC

Flicker-free, quiet operation

Full range onboard and DMX dimming

DMX wireless link: Lumen Radio

DMX auto terminate

Metal alloy fixture includes removable gel frame, louver, and cardholders

Slim 6.5" profile

Mounts to stand or can hang easily from a grid

Kino Flo Junior Pin Assembly for Image 80, 40, 20

Kino Flo Image 80/40/20 Junior Pin assembly. Allows straight-ahead mounting of the fixture to a Junior 1-1/8" female receptor. Includes metric threaded screws and a Junior (1-1/8") pin.

Kino Flo Shipping Case for 1- Image 40, 45 Fixture

Kino Flo Shipping Case for 1- Image 40, 45 Fixture provides ample room for a fixture, cables, and some accessories.

Item Type 1 x LED Light Panel

Photometrics 519 fc / 5590 Lux at 3.3' / 1 m*

39 fc / 420 Lux at 12' / 3.65 m

*Standardized Measurement Calculated Internally Based on Closest Distance

Color Temperature 2500 to 9900K

Color Modes RGB

Color Accuracy Standard CRI 95

TLCI 98

Dimming Yes, Built-In Dimmer

1 to 100% (Continuous)

Expected Lamp Life 50,000 Hours

Front Accessory Mount Proprietary

Connectivity

Wireless Remote Control Type Wireless DMX

Wireless CRMX

Power & I/O

Power Source AC Power (Cable Included)

Inputs/Outputs 1 x IEC Power Input

1 x XLR 5-Pin DMX Input

1 x XLR 5-Pin DMX Output

AC Input Power 100 to 240 VAC, 50 / 60 Hz

Included Adapter / Cable 1 x Edison Plug to IEC Cable

Inline Switch No

Power Pass-Thru No

Power Consumption 200 W

Mounting

Yoke Type Manually-Operated Yoke

Fixture Mounting 1 x 1-1/8" Stud (Via Yoke Mount)

General

Display LCD

Materials Aluminum (Housing)

Dimensions 54 x 17 x 6.5" / 137.2 x 43.2 x 16.5 cm (Fixture)

Weight 25 lb / 11.34 kg (Fixture with Yoke)

Packaging Info

Package Weight 33.6 lb

Box Dimensions (LxWxH) 56.5 x 20.5 x 10.5"

Kino Flo Junior Pin Assembly For Image 80, 40, 20 Specs

Packaging Info

Package Weight 1.205 lb

Box Dimensions (LxWxH) 8.2 x 2.25 x 2.05"

Kino Flo Shipping Case For 1- Image 40, 45 Fixture Specs

Exterior

Closure Type Hasp

Carry and Transport Options None

Material of Construction Metal, Wood

Exterior Dimensions (W x H x D) 56.5 x 10.2 x 23.2" / 143.5 x 26 x 59 cm

Weight 29 lb / 13 kg

Packaging Info

Package Weight 33.5 lb

Box Dimensions (LxWxH) 58 x 26 x 9.2"

In the Box

Kino Flo Image L40 DMX LED Panel with Yoke Mount

Kino Flo Gel Frame for Image 40

Kino Flo Egg Crate Louver for Image 40 (Silver)

Set of Card Holders

Yoke Mount

Kino Flo Honeycomb Louver for Celeb 400 and 450 DMX LED Lights - 90 Degrees

Kino Flo Junior Pin Assembly for Image 80, 40, 20

Kino Flo Shipping Case for 1- Image 40, 45 Fixture
