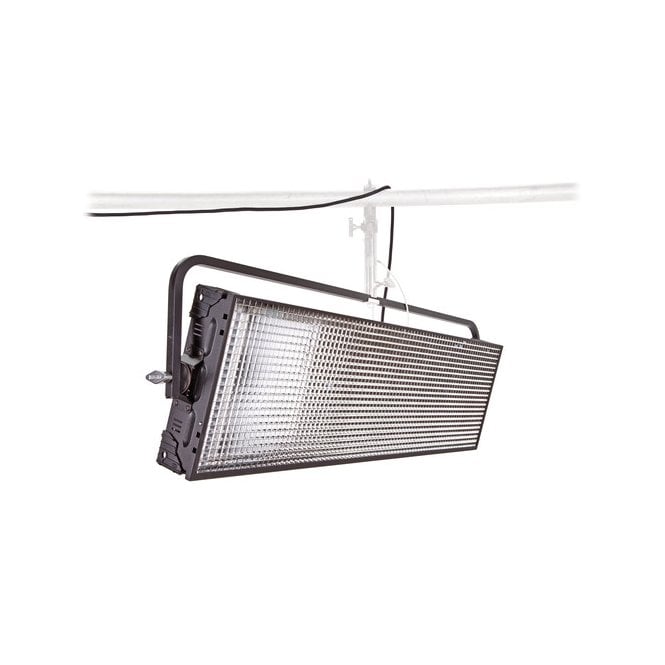

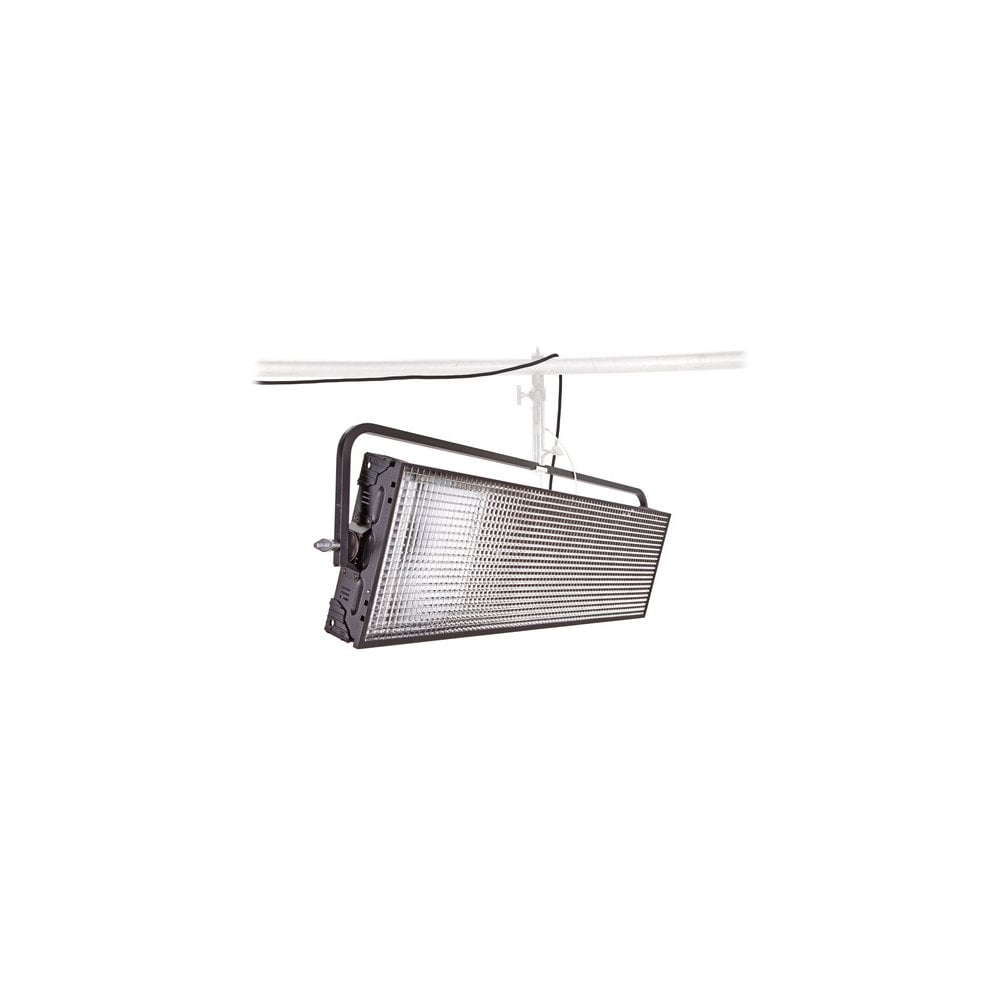

Kino Flo Image L40 Led Dmx Yoke Mount

Kino Flo Image L40 Led Dmx Yoke Mount(IMG-L40U)

The Image L40LED joins Kino Flo’s family line of LED soft lights. The Image L40 measures 54” x 17” (137cm x 43cm). Light output is 55FC at 10ft (604 LUX at 3M) but only uses 2.0A (120VAC).

The Image L40 LED’s “All in One” design includes standard DMX in/out ports for cable as well as wireless DMX connectivity (Lumen Radio®). Additional specifications include universal voltage input 100-240vac.

The Image L40 LED’s come complete with removable gel frame and louver and are available in Yoke mount and Pole-Op models.

Kino Flo’s Image L40 LED's include 4 menu options, one white, two colors and FX menu. The White menu features include Dimming, Kelvin and Green/Magenta control channels. Dimming range is from .02 to 100 percent without introducing any flicker and can be adjusted in coarse or fine mode by pressing the control knob in/out. The Kelvin range is tunable from 2700K tungsten to 6500K daylight. The Green/Magenta control can be scaled from 0 to 100, where 25 = ¼ correction, 50 = ½ correction and 100 = full correction.

In the Gels/Hue menu, the Kelvin range is extended to 2500K Kelvin to 9900K daylight and a fourth channel is called Gel.The Gel channel includes Kino Flo presets such as blue & green screen, sodium vapor, mercury vapor as well as over 100 well-known lighting gels. The gel function can be applied to any Kelvin temperature and by pushing the control knob in/out, the gel will be applied or removed. A fifth channel called Hue Angle (Hue) and sixth channel Saturation (Sat) are also included in the gel menu. These two channels behave similar to a traditional color wheel, where white light is in the center and Hue Angle determines the color along a 360-degree range and Saturation determines how much color is applied. With the Hue Angle and Saturation it is possible to create over 2 million color combinations.

The RGB color menu gives individual control of red, green and blue LED’s. The RGB mode is a great way to work with apps withpredetermined RGB presets or color wheels. RGB menu is also a great feature to dial in specific gel RGB values or when controlling colors from a DMX desk.

The FX (Effects) menu introduced on June 1, 2018 provides access to popular effects such as Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse and Scroll. When on the desired effect, there are several pre-sets as well as control parameters that can be altered. For example, in the Lightning effect there is a “Storm” and “Frankenstein” preset, but it is possible to change Rate to provide additional variation.

Input Voltage VAC 100~240VAC

50/60Hz, 200W

Amperage VAC 2A (120V)

1A (230V)

Kelvin Range 2500~9900

Dimming Range 100%~1%

Dimensions 137 X 16.5 x 43cm/ 54 x 6.5 x 17"

Weight 11.5kg/ 25lb

In the Box

Kino Flo Image L40 DMX LED Panel with Yoke Mount

Kino Flo Gel Frame for Image 40

Kino Flo Egg Crate Louver for Image 40 (Silver)

Set of Card Holders

Yoke Mount
