Kino Flo KinoFlo FreeStyle T44 DMX System, Univ

KinoFlo FreeStyle T44 DMX System, Univ(SYS-FT44U)

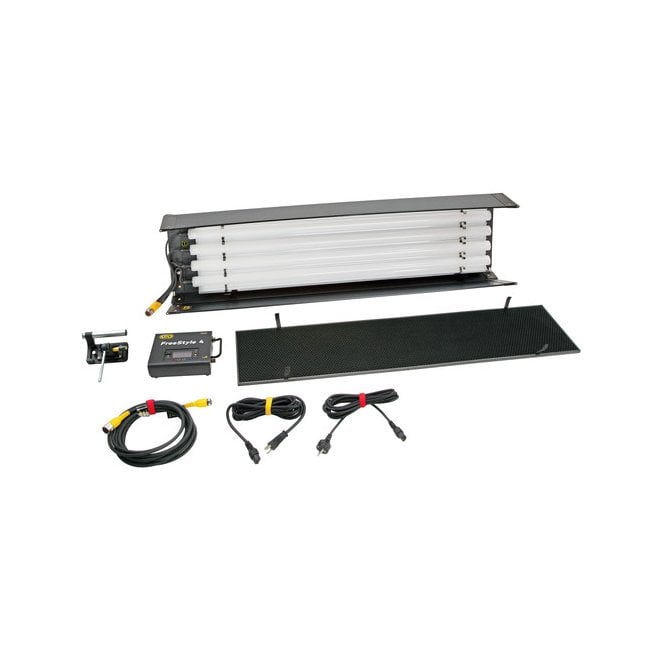

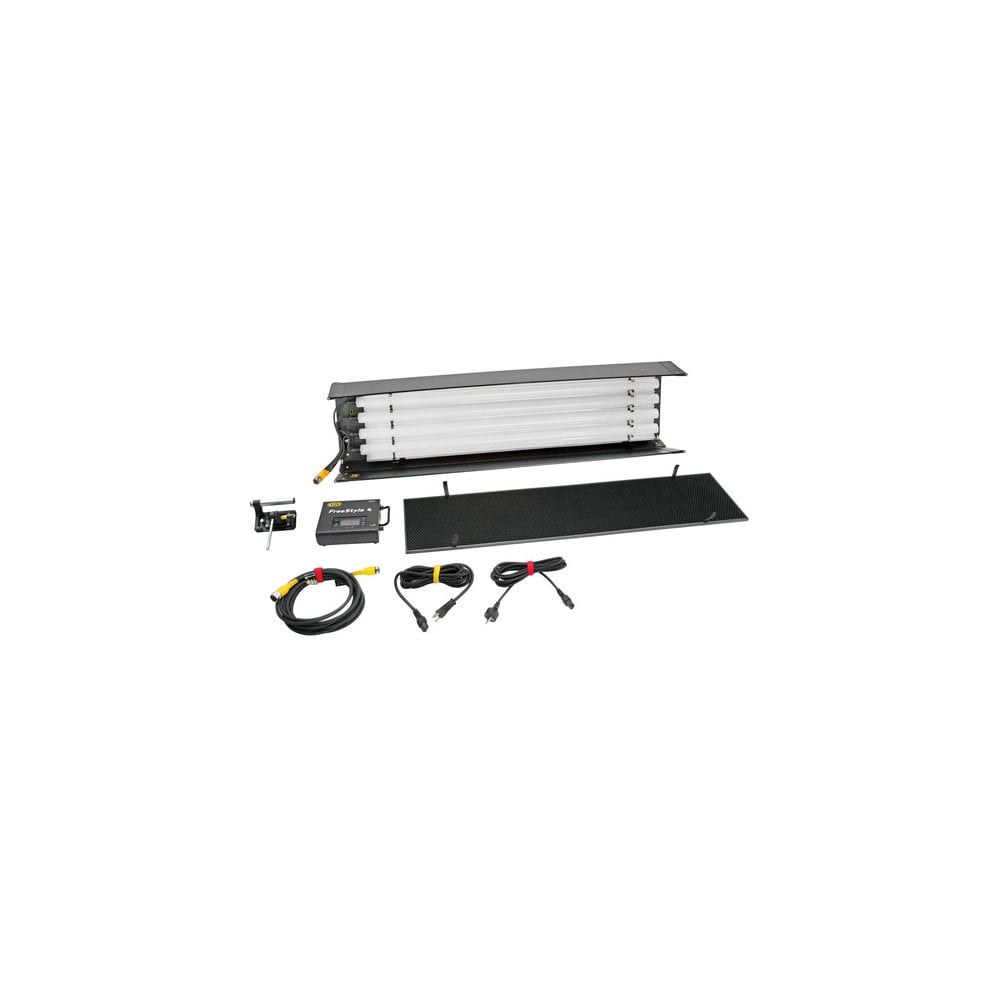

Kino Flo has put together this FreeStyle T44 LED LED DMX System Universal for image-makers who require a flexible, multi-featured setup that can be taken on the road. The kit includes the T44 fixture with built-in barndoors, a 90-degree grid, four LED tubes, twist mount with a 3/8" pin, 25' extension cable, and the 140 LED DMX Controller.

Kino Flo FreeStyle T44 LED Fixture

The FreeStyle T44 LED Fixture from Kino Flo is an LED lamp head that is part of a system or kit that is powered the separately-purchased, required LED 140X DMX Controller. The fixture measures 52 x 13 x 3.5" w/ 6.5" barndoors and weighs 11 lb - light enough to hand hold. It comes with a 90-degree removable louver (grid). The fixture runs on 100 to 240 VAC current through its optional controller and requires separately purchased LED tubes.

The FreeStyle 144 requires a head cable and controller for use. The controller offers an extensive 6-channel array of control features and use options. It has two menus for color and a "White Menu" for Dimming, Kelvin Temperature, and Green/Magenta adjustments. Using one of the color menus expands the Kelvin range from a warm 2500 to an ice-blue 9900K. The second color menu allows you to work with RGB, a real convenience when employing color wheels or RGB presets. The fourth channel (named the Gel channel) has presets for over 100 well-known temperature-modifying gels including blue/green screen, sodium vapor, and mercury vapor.

A fifth channel allows for Hue adjustments along a 360-degree range like a color wheel, while the 6th Saturation channel controls the intensity of the chosen color. The controller has onboard DMX for making adjustments remotely from a console and also is compatible with Lumen Radio wireless DMX. The controller runs on 100 to 240 VAC current for worldwide use. But can also run on "block" batteries when mains power is unavailable.

Benefits Using Separately Purchased LED Controller

Kelvin presets

Dial-in color temperature control between 2700-6500K

Extended color palette from 2500-9900K

Green/Magenta Control

Hue angle and Saturation adjustments

RGB control

Works with Apps with predetermined RGB presets or color wheels

Can use preset buttons to store custom Kelvin settings

Light levels do not change when selecting Kelvin settings

No color shift while dimming

Color-correct with high color rendering index (CRI 95)

Universal input 100-240 VAC or 24 VDC

Energy efficient, low electrical draw

Flicker-free, dead quiet operation

Full range onboard and DMX dimming

DMX wireless link (Lumen Radio)

DMX Auto Terminate

Remote fixture with built-in barndoors

Removable LED panel

Fixture includes removable 90° Honeycomb Louver

Honeycomb louver also available in 60° as accessory

Lightweight, slim profile

Light enough to be handheld

Separately purchased Controller mounts onto fixture or operates remotely with extension cable

Kino Flo LED Tube for Freestyle T44 Fixture (4')

Specially designed for the fixture, the 4' LED Tube for Freestyle T44 Fixture from Kino Flo conforms to Kino's True Match white light and RGBW management system. It displays a soft, subtle light quality and accurate color rendition that earns it a CRI of 95. When used in the fixture with the reflector in a group of four, the output is similar to a 1000W tungsten soft light.

Kino Flo FreeStyle 140 LED DMX Controller for FreeStyle T44 Bulbs, (120 VAC Cord)

This Kino Flo FreeStyle 140 LED DMX Controller for FreeStyle T44 Bulbs comes with a power cord for running on 120 VAC while controlling and powering up to four T44 LED tubes. The controller features four modes that provide near total control of the output of the LED tubes (LED tubes not included). In white mode, the unit drives LED tubes output light with a color temperature range between 2700 to 6500K. It also enables dimming and green/magenta adjustment. Gels/Hue expands the color temperature range to 2500 to 9900K while providing access to background keying presets and over 100 lighting gel looks.

RGB mode provides access to the individual red, green, and blue LED luminaries for precise control. FX Mode provides customizable presets. The integrated display screen shows dim, Kelvin, green/magenta shift, and the DMX Channel. Four built-in buttons default to four Kelvin presets, but you can customize the settings of the buttons. The built-in control knob lets you set dimming, Kelvin, green/magenta levels and DMX address. The controller supports both wired and wireless DMX, and it accepts worldwide power inputs as well as 18 to 36 VDC.

Menus

White: dimming, tunable Kelvin range from 2700K tungsten to 6500K daylight; Green/Magenta controls

Gels/Hue: extended Kelvin color range from 2500-9900K and provides access to Kino Flo presets such as blue & green screen, sodium vapor, mercury vapor as well as over 100 well-known lighting gels

RGB: provides access to individual red, green, and blue control. Works with Apps with predetermined RGB presets or color wheels

FX: custom presets like Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse, and Scroll with control parameters that can be altered. For example, Lightning effect has a "Storm" and "Frankenstein" preset, but can change the Rate to provide additional variation

The controller can dim your LED tubes from 100% brightness down to 1%

The controller comes with a Lumen Radio Wireless 120 VAC power cord, but can run off of 100 to 240 VAC at 50/60 Hz. You can also power the controller vie a 24 VDC battery with 3-pin XLR connector.

Kino Flo KinoGrip MTP-KG41 Mount with 3/8" Pin

The KinoGrip MTP-KG41 Mount with 3/8" Pin from Kino Flo is a twist-on ball and socket mount with a 3/8" pin for attachment to a grip head. The mount has an integrated handle should you wish to hand hold the light fixture.

Kino Flo Extension Cable 150 for Select LED System (25')

The 25' Extension Cable 150 for Select LED System from Kino Flo provides extra distance between the Select LED head and its ballast. Up to 2 extensions can be joined for a total of 50'.

Item Type 1 x LED Light Bank/Frame Fixture with 4 Light Tubes

Photometrics 299 fc / 3225 Lux at 3.3' / 1 m*

55 fc / 592 Lux at 8' / 2.44 m

*Standardized Measurement Calculated Internally Based on Closest Distance

Color Accuracy Standard CRI 95

Cooling System Passive

Dimming Yes, Built-In Dimmer

0 to 100%

Beam Angle 100°

Front Accessory Mount Proprietary

Power & I/O

Power Source AC Power (Cable Not Included) *Requires Power Supply/Controller (Not Included)

Battery (Not Included) *Requires Power Supply/Controller (Not Included)

AC Input Power 100 to 240 VAC, 50 / 60 Hz

Inline Switch No

Power Pass-Thru No

General

Display None

Dimensions 52 x 13 x 6.5" / 132.1 x 33 x 16.5 cm (Fixture)

Weight 11.02 lb / 5 kg

Packaging Info

Package Weight 7.9 lb

Box Dimensions (LxWxH) 52.5 x 12.5 x 3.75"

Kino Flo LED Tube For Freestyle T44 Fixture (4') Specs

General

Length 4.0' / 1.2 m

CRI 95

Color Temperature 2500 to 9900K

Packaging Info

Package Weight 1.2 lb

Box Dimensions (LxWxH) 4 x 2 x 2"

Kino Flo FreeStyle 140 LED DMX Controller For FreeStyle T44 Bulbs, (120 VAC Cord) Specs

General

Connections Power

AC Input: IEC Connector

DC Input: 3-Pin XLR

DMX In & Out: 5-Pin XLR (Male & Female)

USB: Mini-B

Dimming Range 100 to 1% Brightness

Power Voltage

AC: 120 to 240 VAC, 50/60 Hz

DC: 18 to 36 VDC, 150 W

Draw

AC: 1.25 A @ 120 VAC

DC: 6.25 A @ 24 VDC

Fuse

3.15 A/250 V

Dimensions 9.5 x 4.5 x 2.5" / 24.13 x 11.43 x 6.35 cm

Weight 4.5 lb / 2.04 kg

Packaging Info

Package Weight 4.72 lb

Box Dimensions (LxWxH) 12.5 x 10 x 3"

Kino Flo KinoGrip MTP-KG41 Mount With 3/8" Pin Specs

Diameter Pin: 0.375' / 9.5 mm

Packaging Info

Package Weight 1.75 lb

Box Dimensions (LxWxH) 12.2 x 5.6 x 3.1"

Kino Flo Extension Cable 150 For Select LED System (25') Specs

Packaging Info

Package Weight 2.15 lb

Box Dimensions (LxWxH) 11.6 x 9.58 x 1.18"

In the Box

1x FreeStyle/4 4ft Fixture

1x Louver 90°

1x FreeStyle 140X LED DMX Controller

1x MTP-KG41 Mount

1x 25ft Head Extension

4xFreeStyle 4ft LED Tube
