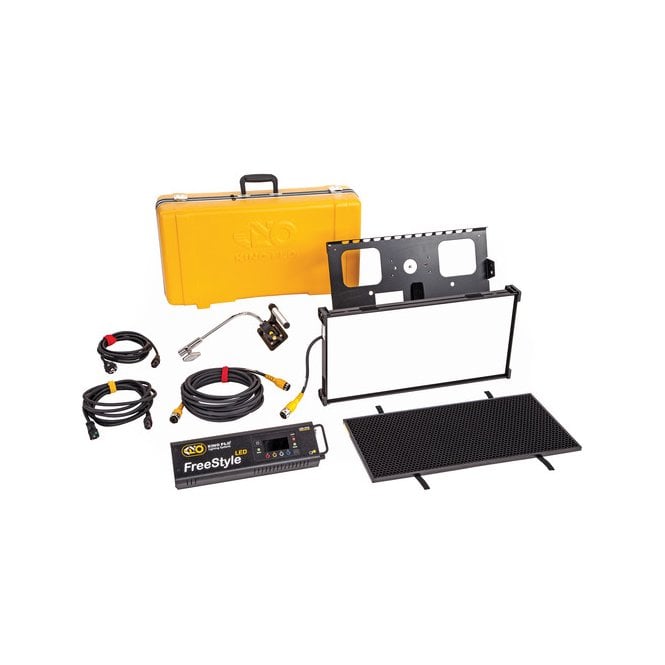

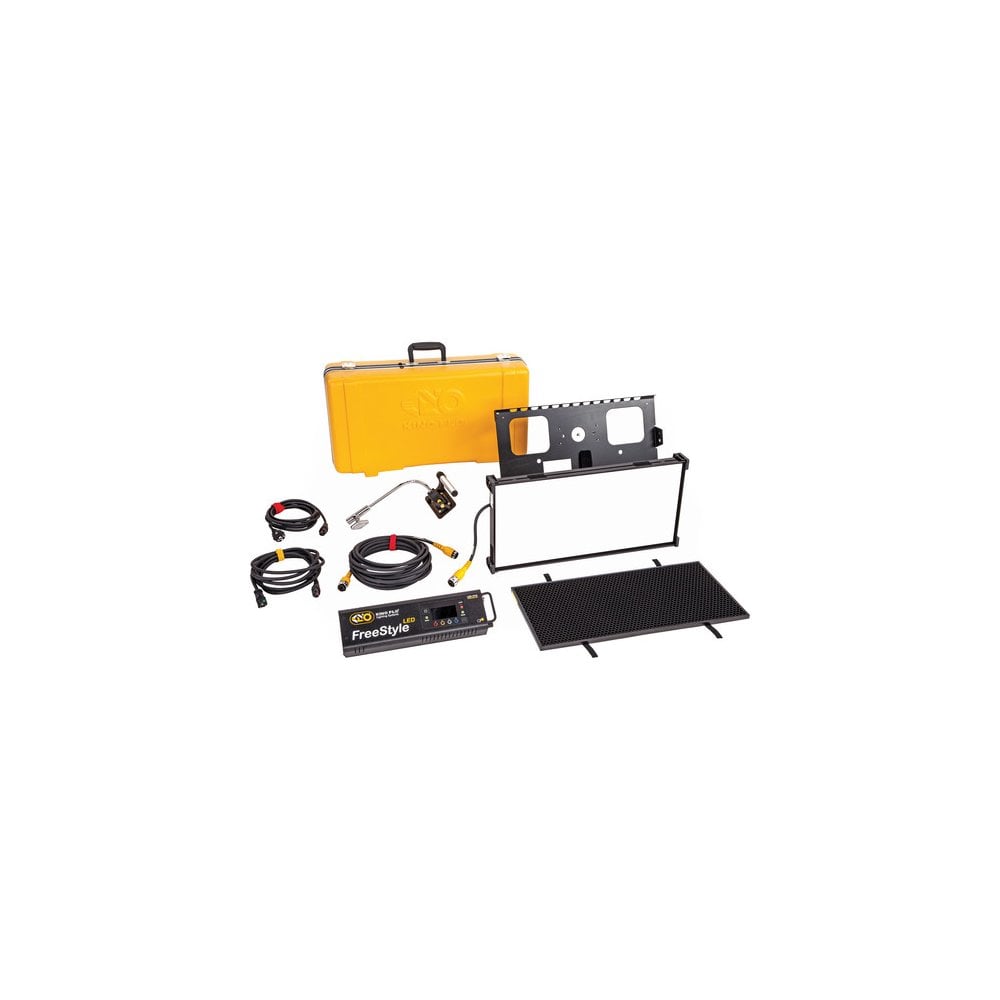

Kino Flo KIT-F21TU Free Style GT 21 LED DMX Kit, Univ with Travel Case

Kino Flo KIT-F21TU (KIT_F21TU, KITF21TU, KIT F21TU, KIT/F21TU) Free Style GT 21 LED DMX Kit, Univ with Travel Case.

Designed for the image-maker who travels extensively, the FreeStyle/GT 21 LED DMX Kit with Travel Case from Kino Flo contains everything you'll need to get up and running with this versatile fixture that offers complete color adjustment and extensive control features. The kit includes the FreeStyle/GT 21 fixture with LED Controller, a Gaffer Tray, and a 90-Degree Louver (grid) to narrow the fixture's beam for selective lighting. A KinoGrip mount with a 5/8" receiver and a 25' head cable are also included and it all fits in the provided hard, wheeled travel case.

Kino Flo FreeStyle 21 LED Panel:

• The 23.5 x 11.5 x 2.5" FreeStyle 21 LED Panel from Kino Flo is a light source capable of advanced color adjustments and wired or wireless control. This listing is for the panel only without the fixture shell. It requires the separate purchase of a mount and a FreeStyle DMX controller, and a 100-240 VAC power supply is available for worldwide use.

The following description illustrates the capabilities of the panel when used with the optional controller for use:

• The FreeStyle 21 uses three menus with features that can be controlled on the light via traditional wired DMX or by Lumen Radio wireless DMX with the separate purchase of a Lumen transmitter. The White menu allows control of 0-100% dimming, color control from 2700-6500K, and Green/Magenta control. There are two Color menus. The first offers an extended color range from 2500-9900K and includes a channel called "Gel" that offers multiple presets for light conditions such as mercury-vapor and 100 often-used gel filters. There are also channels for Hue and Saturation that work together by selecting a specific color and determining the intensity of it. The second color menu provides RGB (Red, Green, Blue) control to permit a user-selected combination to obtain any color in the visible spectrum.

Benefits Using Separately Purchased LED Controller:

• Kelvin presets
• Dial-in color temperature control between 2700-6500K
• Extended color palette from 2500-9900K
• Green/Magenta Control
• Hue and Saturation adjustments
• RGB control
• Works with Apps with predetermined RGB presets or color wheels
• Light levels do not change when selecting Kelvin settings
• No color shift while dimming
• Color-correct with high color rendering index (CRI 95)
• 100-240 VAC or 24 VDC
• Energy efficient, low electrical draw
• Flicker-free, dead quiet operation
• Lightweight, slim profile
• Mounts on stand, light enough to be handheld
• Separately purchased controller mounts onto fixture or operates remotely with extension cable

Kino Flo Gaffer Tray for FreeStyle 21 LED Panel:

• The Gaffer Tray for FreeStyle 21 LED Panel from Kino Flo replaces the light's standard barndoor housing and accepts the removable LED panel to create a smaller profile fixture. The Gaffer Tray has a built-in mating plate for attachment of a center mount. The controller can also be mounted to the Gaffer Tray.

Kino Flo Louver for Diva-Lite 20 (90°):

• The 90° Louver for Diva-Lite 20 from Kino Flo is a plastic honeycomb grid that fits onto the front of the fixture. It narrows the light's beam spread while limiting spill light and adding directional control.

Kino Flo LED Controller for Kino Flo Select 20 and 30 Fixtures:

• The LED Controller for Kino Flo Select 20 and 30 Fixtures from Kino Flo is a detachable controller for the Select 20 or Select 30 LED heads. The controller can be mounted on the back of the lamp head or used remotely up to 25' away with an optional extension cable. It enables the fixture to produce a consistent light level across the variable 2700 to 6500K color temperature range in the White Menu and 2500 to 9900K in the Color Menu. The White Menu has Dimming, Kelvin and Green/Magenta adjustment channels. The Color Menu gives you access to Gel, Hue Angle and Saturation channels. The Gel channel includes presets such as blue and green screen, sodium vapor, mercury vapor and over 100 well-known lighting gels. Hue Angle and Saturation channels act like a traditional color wheel with a 360-degree color range and choice of color intensity. The detachable controller has a display screen for menu navigation and information display, as well as physical buttons for navigation and settings.
• This hard-wired DMX controller is augmented by wireless DMX, which is provided by Lumen Radio. It can accept worldwide AC power and can also be powered by DC via a 3-pin XLR connector.

Benefits:

• Tunable Kelvin 2500K to 9900K in Color Menu
• Tunable Kelvin 2700K to 6500K in White Menu
• Dimming without color shift
• Green/Magenta control
• Kino Flo presets and Gel presets
• Dial-in color using Hue angle and Saturation control
• Universal input 100-240 VAC and 18-36 VDC
• Manual and DMX dimming with Auto Terminate
• DMX wireless (Lumen Radio)
• Flicker-free, dead-quiet operation
• Kino Flo Diva-Lite LED Clamshell Case for Diva-Lite 21 LED and Stand (Yellow)
• Store, transport, and protect your Kino Flo Diva-Lite 21 LED and stand with the yellow Diva-Lite LED Clamshell Case from Kino Flo. The case features latches and a top handle.

Kino Flo Extension Cable 150 for Select LED System (25'):

• The 25' Extension Cable 150 for Select LED System from Kino Flo provides extra distance between the Select LED head and its ballast. Up to 2 extensions can be joined for a total of 50'.

• Color Temperature: 2500 to 9900K
• Color Accuracy Standard: CRI 95
• Cooling System: Passive
• Dimming: Yes, 1 to 100% (Continuous)
• Photometrics: 154 fc / 1657 lux at 4' / 1.22 m, 40 fc / 430.4 lux at 8' / 2.44 m, 18 fc / 193.7 lux at 12' / 3.66 m
• Fixture Dimensions: 23.5 x 11.5 x 2.5" / 59.7 x 29.2 x 6.3 cm
• Fixture Weight: 7 lb / 3.18 kg
• Battery Plate: None
• Fixture Mount: None
• Accessory Mount: None
• Remote Control Type : DMX
• Number of DMX Channel Modes: 6
• AC Input Power: 00 to 240 VAC, 50 / 60 Hz
• Power Source: AC Adapter, External Battery
• Size: Approx. 23.5 x 2.5 x 11.5" (60 x 6.5 x 29 cm)
• Material: Plastic
• Beam Angle: 90°
• Power: VAC: 100 to 240 V @ 50/60 Hz, 150 W, VDC: 18 to 36 V, 150 W
• 1.3 A @ 120 VAC, 7.0 A at 24 VDC
• Color Temperature: 2700 to 6500K in White Menu, 2500 to 9900K in Color Menu
• Dimming: 100 - 1%
• Dimensions: 15 x 4.5 x 3.0" (38 x 11.5 x 8.0 cm)
• Weight: 4.5 lb (2.0 kg)
• Closure Type: Latch
• Carry and Transport Options: Top Handle
• Material of Construction: Plastic
• Exterior Dimensions (W x H x D): 28.5 x 16 x 8.5" / 72.4 x 40.6 x 21.6 cm
• Weight: 10.3 lb / 4.7 kg.

In The Box

• Kino Flo FreeStyle 21 LED Panel
• Kino Flo Gaffer Tray for FreeStyle 21 LED Panel
• Kino Flo Louver for Diva-Lite 20 (90°).
