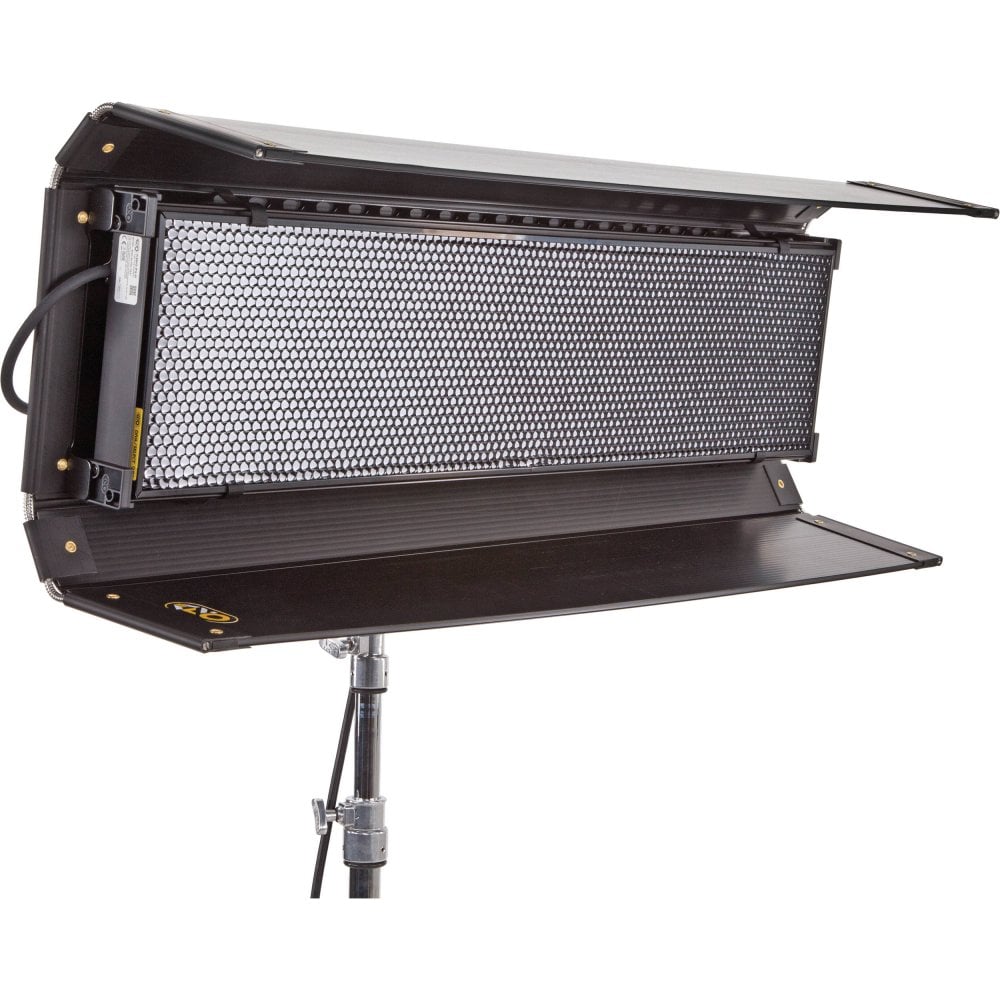

Kino Flo PAN-F31 FreeStyle 31 LED Panel

Kino Flo PAN-F31 (PAN_F31, PAN/F31, PAN F31, PANF31) FreeStyle 31 LED Panel.

The 37.5 x 9.5 x 2.5" FreeStyle 31 LED Panel from Kino Flo is a light source capable of advanced color adjustments and wired or wireless control. This listing is for the panel only without the fixture shell. It requires the separate purchase of a mount and a FreeStyle DMX controller, and a 100-240 VAC power supply is available for worldwide use.

The following description illustrates the capabilities of the panel when used with the optional controller for use:

The FreeStyle 31 uses three menus with features that can be controlled on the light via traditional wired DMX or by Lumen Radio wireless DMX with the separate purchase of a Lumen transmitter. The White menu allows control of 0-100% dimming, color control from 2700-6500K, and Green/Magenta control. There are two Color menus. The first offers an extended color range from 2500-9900K and includes a channel called "Gel" that offers multiple presets for light conditions such as mercury-vapor and 100 often-used gel filters. There are also channels for Hue and Saturation that work together by selecting a specific color and determining the intensity of it. The second color menu provides RGB (Red, Green, Blue) control to permit a user-selected combination to obtain any color in the visible spectrum.

Benefits Using Separately Purchased LED Controller:

• Kelvin presets
• Dial-in color temperature control between 2700-6500K
• Extended color palette from 2500-9900K
• Green/Magenta Control
• Hue and Saturation adjustments
• RGB control
• Works with Apps with predetermined RGB presets or color wheels
• Light levels do not change when selecting Kelvin settings
• No color shift while dimming
• Color-correct with high color rendering index (CRI 95)
• 100-240 VAC or 24 VDC
• Energy efficient, low electrical draw
• Flicker-free, dead quiet operation
• Lightweight, slim profile
• Mounts on stand, light enough to be handheld
• Separately purchased controller mounts onto fixture or operates remotely with extension cable.

• Color Temperature: 2500 to 9900K
• Color Accuracy Standard: CRI 95
• Cooling System: Passive
• Dimming: Yes, 1 to 100% (Continuous)
• Photometrics: 161 fc / 1732.4 lux at 4' / 1.22 m, 43 fc / 462.7 lux at 8' / 2.44 m, 20 fc / 215.2 lux at 12' / 3.66 m
• Fixture Dimensions: 37.5 x 9.5 x 2.5" / 95.2 x 24.1 x 6.3 cm
• Fixture Weight: 8.6 lb / 3.90 kg
• Battery Plate: None
• Fixture Mount: None
• Accessory Mount: None
• Remote Control Type: DMX
• Number of DMX Channel Modes: 6
• AC Input Power: 100 to 240 VAC, 50 / 60 Hz
• Power Source: AC Adapter, External Battery

In The Box

• Kino Flo PAN-F31 FreeStyle 31 LED Panel.
