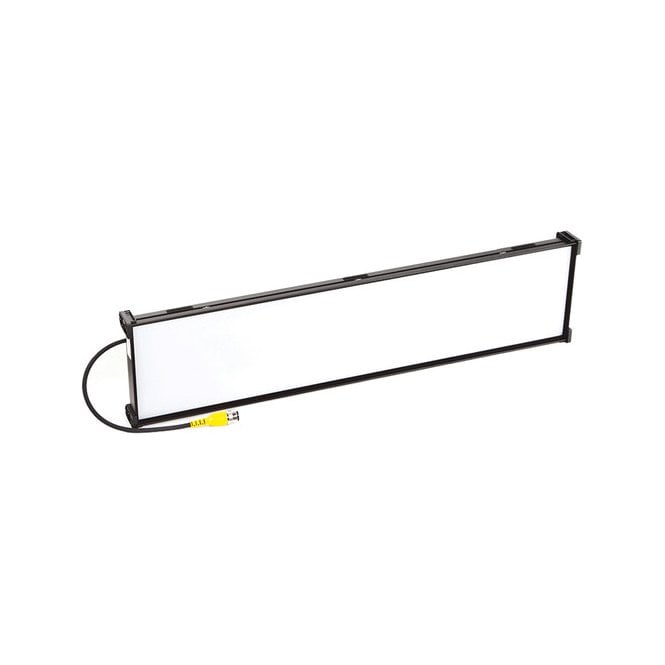

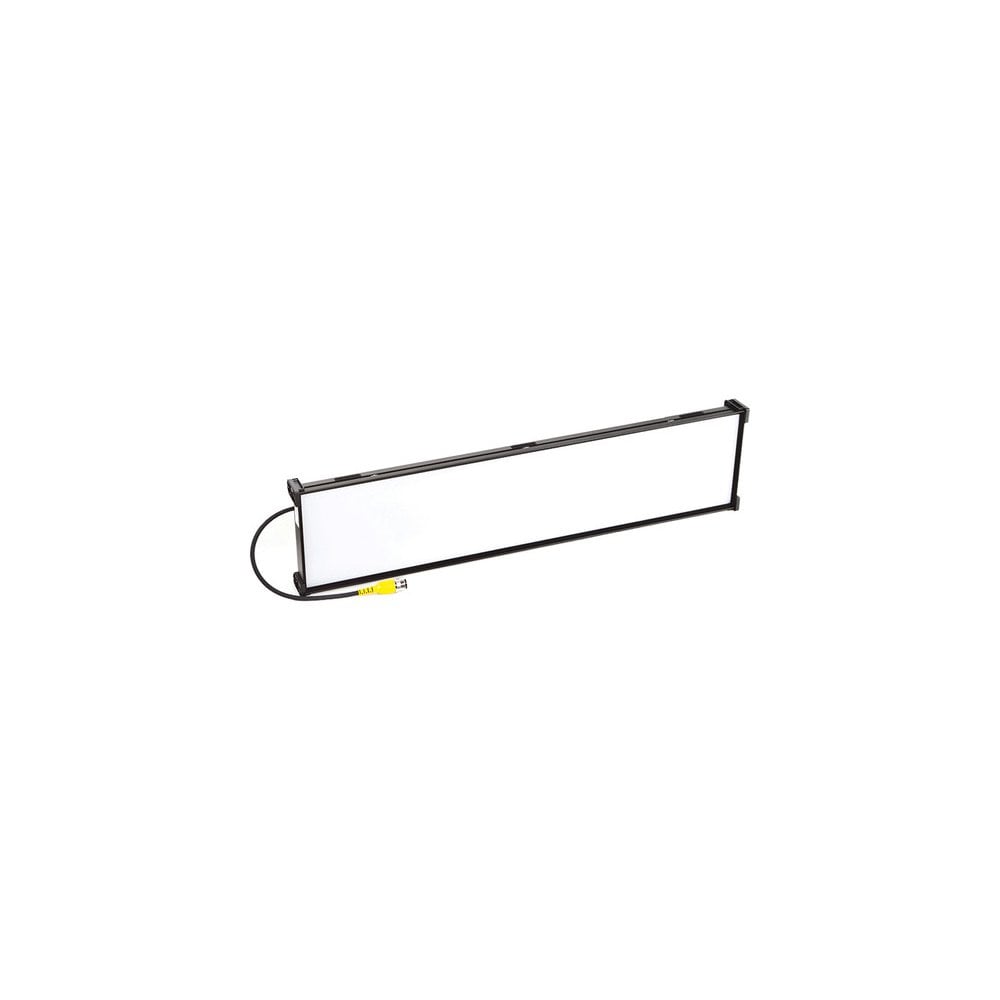

Kino Flo PAN-F41 FreeStyle 41 LED Panel

code: PAN-F41
  • £1,574.00
  • RRP: £1,574.00
Item Available | Usually dispatched within 24 hours


  • Measures 49.5 x 7.5 x 2.5"
  • Requires Optional Controller for Use
  • Variable Color Temperature: 2700-6500K
  • Extended Range: 2500-9900K.

Kino Flo PAN-F41 (PAN_F41, PAN/F41, PANF41, PAN F41) FreeStyle 41 LED Panel.

The 49.5 x 7.5 x 2.5" FreeStyle 41 LED Panel from Kino Flo is a light source capable of advanced color adjustments and wired or wireless control. This listing is for the panel only without the fixture shell. It requires the separate purchase of a mount and a FreeStyle DMX controller, and a 100-240 VAC power supply is available for worldwide use.

The following description illustrates the capabilities of the panel when used with the optional controller for use:

The FreeStyle 41 uses three menus with features that can be controlled on the light via traditional wired DMX or by Lumen Radio wireless DMX with the separate purchase of a Lumen transmitter. The White menu allows control of 0-100% dimming, color control from 2700-6500K, and Green/Magenta control. There are two Color menus. The first offers an extended color range from 2500-9900K and includes a channel called "Gel" that offers multiple presets for light conditions such as mercury-vapor and 100 often-used gel filters. There are also channels for Hue and Saturation that work together by selecting a specific color and determining the intensity of it. The second color menu provides RGB (Red, Green, Blue) control to permit a user-selected combination to obtain any color in the visible spectrum.

Benefits Using Separately Purchased LED Controller

  • Kelvin presets
  • Dial-in color temperature control between 2700-6500K
  • Extended color palette from 2500-9900K
  • Green/Magenta Control
  • Hue and Saturation adjustments
  • RGB control
  • Works with Apps with predetermined RGB presets or color wheels
  • Light levels do not change when selecting Kelvin settings
  • No color shift while dimming
  • Color-correct with high color rendering index (CRI 95)
  • 100-240 VAC or 24 VDC
  • Energy efficient, low electrical draw
  • Flicker-free, dead quiet operation
  • Lightweight, slim profile
  • Mounts on stand, light enough to be handheld
  • Separately purchased controller mounts onto fixture or operates remotely with extension cable.
View More Details
  • Color Temperature: 2500 to 9900K
  • Color Accuracy Standard: CRI 95
  • Cooling System: Passive
  • Dimming: Yes, 1 to 100% (Continuous)
  • Photometrics: 161 fc / 1732.4 lux at 4' / 1.22 m, 45 fc / 484.2 lux at 8' / 2.44 m, 21 fc / 226 lux at 12' / 3.66 m
  • Fixture Dimensions: 49.5 x 7.5 x 2.5" / 125.7 x 19.1 x 6.3 cm
  • Fixture Weight: 9.6 lb / 4.35 kg
  • Battery Plate: None
  • Fixture Mount: None
  • Accessory Mount: None
  • Remote Control Type: DMX
  • Number of DMX Channel Modes: 6
  • AC Input Power: 100 to 240 VAC, 50 / 60 Hz
  • Power Source: AC Adapter, External Battery.
View More Details

In The Box

  • Kino Flo PAN-F41 FreeStyle 41 LED Panel.
View More Details
Be the first to review Kino Flo PAN-F41 FreeStyle 41 LED Panel. Write a review ›
