Kino Flo SYS-F31U FreeStyle 31 LED DMX System, Univ

code: SYS-F31U
  • £3,736.21
  • RRP: £4,333.00
Status   |   Usually dispatched within 24 hours


  • Remote fixture w/ built-in Barndoors
  • Removable LED panel with centre mount and molded corner mounts
  • Fixture includes removable 90° Honeycomb Louver
  • Dial-in colour temperature control between 2500K-9900K
  • Kelvin presets
  • Green/Magenta Control
  • Kino Flo Colour presets (such as Sodium Vapour, Blue and Green Screen and more.)
  • Over 100 well-known lighting gels
  • Vibrant Colour Selection (RGB+WW Colour Gamut)
  • Special Effect Mode for Fire, TV, Police, Lightning, Paparazzi and more
  • Full colour control through Hue Angle and Saturation control
  • Preset buttons can be used to store custom Kelvin and colour settings
  • Colour-correct with high colour rendering index (CRI 95)
  • No colour shift while dimming
  • Light levels do not change when selecting Kelvin settings
  • Flicker-free, dead quiet operation
  • Full range onboard and DMX dimming
  • DMX wireless link (Lumen Radio)
  • DMX Auto Terminate
  • Universal input 100VAC-240VAC or 24VDC
  • Energy efficient, draws 0.65A, 230VAC and 7A, 24VDC
  • Mounts to stand, light enough to be hand-held or taped to a wall
  • Removable centre mount
  • CE approved.

Kino Flo SYS-F31U (SYSF31U, SYS_F31U, SYS F31U, SYS/F31U) FreeStyle 31 LED DMX System, Univ.

TrueMatch 3.0 transforms Kino Flo LED's into Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse and Scroll effects simulators with the press of a button. Each special effects mode comes with a choice of FX types. Lightning, for example, has "Storm" and "Frankenstein". The Storm effect is modelled on the rate and amplitude of thunderstorm strikes, and Frankenstein displays brighter, more cinematic light flashes. There is also rate control, and a cue feature using the power button.

FreeStyle 31 LED DMX:

Kino Flo’s new FreeStyle 41, 31 & 21 LED’s come with four Menu options, the white Menu, the Gel Menu, RGB Menu and the special effect Menu. Those who prefer to work with white light only can use the "white menu" that gives the user access to Dimming, Kelvin and Green/Magenta control channels. Kelvin range is from 2700K tungsten to 6500K daylight. In the Gel Menu, the Kelvin range travels from 2500K tungsten to 9900K daylight, and Kino Flo has set up a fourth channel called Gel. The Gel channel includes Kino Flo presets such as blue & green screen, sodium vapour, mercury vapour and over 100 well-known lighting gels.

In addition, there is also a fifth channel called Hue Angle and sixth channel, Saturation. These two channels behave like a traditional colour wheel, where you have white light in the centre, and the Hue angle determines the colour along a 360-degree range, and Saturation determines how much colour is applied. The second colour Menu provides individual red, green, blue (RGB) control. The RGB Menu is a great way to work with apps with predetermined RGB presets or colour wheels.

The newly introduced Special Effects Menu gives full access to Kino Flo designed effects like Fire, TV, Police, Paparazzi and many more. In addition, the user can fine tune these effects to their needs and safe them on the preset buttons. For additional versatility, the FreeStyle LED panel can be easily removed from the housing and mounted onto a stand or handheld with the new KinoGrip. Kino Flo's new FreeStyle LED’s also come with standard DMX and wireless DMX (Lumen Radio®), 24VDC input, and universal voltage input 100-240VAC (0.65 Amps at 230U). Kino Flo also recently added new SnapBag Softbox and SnapGrid accessories.

  • Kelvin Range: 2700-6500, 2500-9900
  • Dimming Range: 100%~1%
  • Dimensions: 103 x 9 x 28cm w/ 16.5cm barndoors (40.5 x 3.5 x 11" w/ 6.5" barndoors)
  • Weight: 7kg (15 lb)
  • Input Voltage VAC: 240~100VAC, 50/60Hz, 150W
  • Amps VAC: 0.65A
  • Input Voltage VDC: 18~36VDC, 150W
  • Amps 24VDC: 7.0A
  • Kelvin Range: 2700-6500, 2500-9900
  • Dimming Range: 100%~1%
  • Dimensions: 38 x 11.5 x 8cm (15 x 4.5 x 3”)
  • Weight: 2kg (4.5 lb).

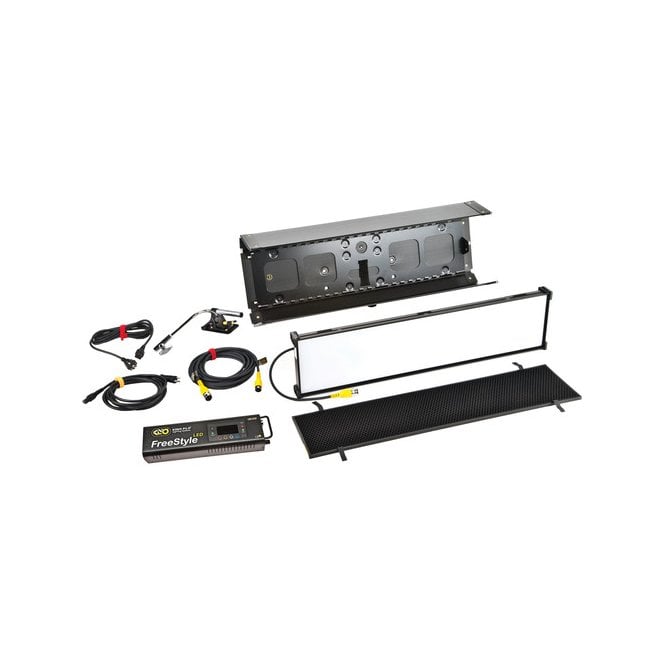

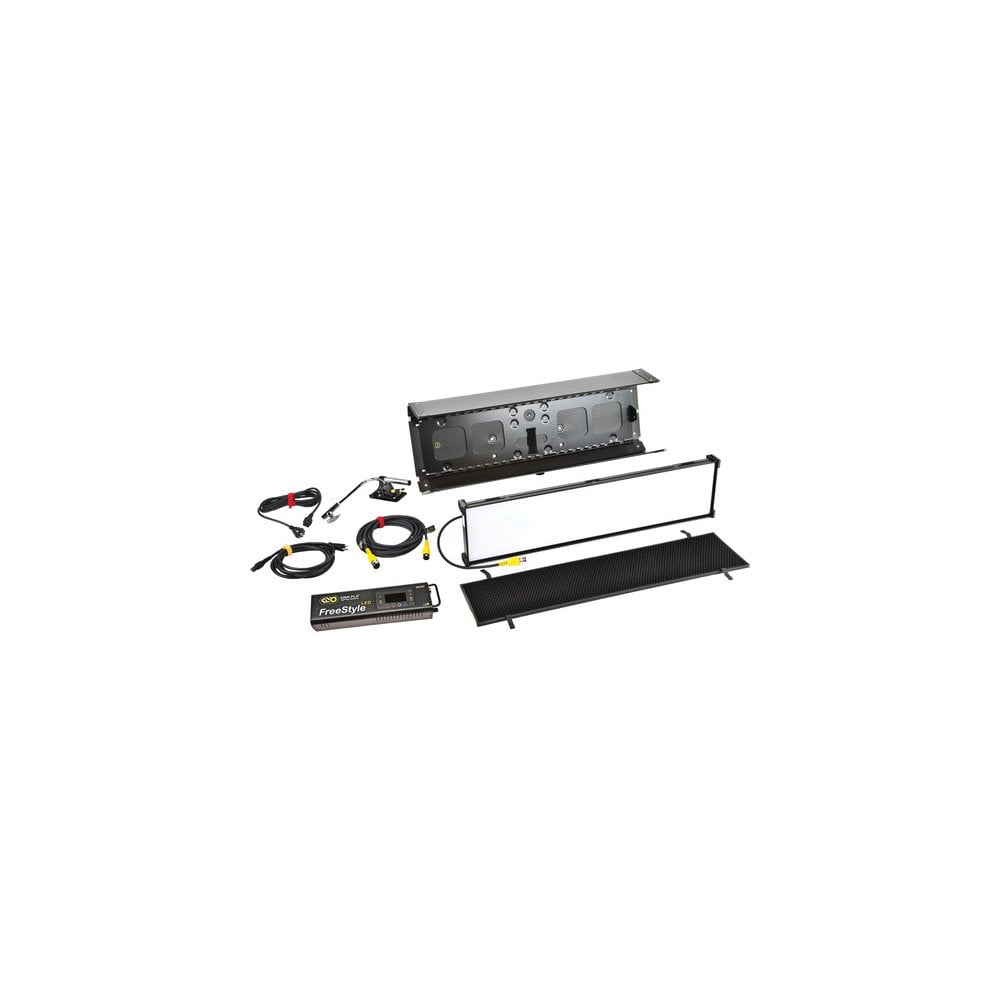

In The Box

  • 1x FreeStyle 31 LED Fixture
  • 1x Select 151 LED DMX Controller
  • 1x MTP-BG41 Mount w/ Baby Receiver (16mm)
  • 1x Extension, 25ft.
