Kino Flo KIT-DL30XU Diva-Lite 30 LED DMX Kit

Kino Flo KIT-DL30XU (DL30XU, KIT_DL30XU, KIT/DL30XU, KITDL30XU) Diva-Lite 30 LED DMX Kit

TrueMatch 3.0 transforms Kino Flo LED's into Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse and Scroll effects simulators with the press of a button. Each special effects mode comes with a choice of FX types. Lightning, for example, has "Storm" and "Frankenstein". The Storm effect is modelled on the rate and amplitude of thunderstorm strikes, and Frankenstein displays brighter, more cinematic light flashes. There is also rate control, and a cue feature using the power button.

The Diva-Lite® LED’s blend Kino Flo’s popular fixture with its tunable LED family line. The Diva-Lite LED lights feature dial-in variable colour temperature control from 2500K to 9900K, full-range dimming, programmable presets and DMX wireless capability. As with the Celeb and Select LED’s, the Diva-Lite LED’s soft white light doesn’t flicker or shift colour temperature when dimmed. Light levels are consistent throughout the Kelvin range.

The Diva-Lite LED’s feature a Green/Magenta control to match the spectral curves of the most popular cameras and other light sources on set. With built-in DMX and Lumen Radio® receivers, the Diva-Lite LED’s can be controlled by DMX and/or DMX wireless. The Diva-Lite LED’s run on universal input from 100-240VAC or 24VDC with as little as 0.65A, 230VAC (Diva-Lite LED 30). With its versatility and unique features, the Diva-Lite LED is the perfect imaging tool for use in any studio production or on location.

The new firmware upgrade includes four Mode options, the White Mode, the Gel Mode, RGB Mode and the special effect Mode. Users who prefer to work with clean white light can use the "white Mode". Tjis Mode will give you access to Dimming, Kelvin and Green/Magenta control channels. Kelvin range is from 2700K tungsten to 6500K daylight.In the Gel Mode, the Kelvin range travels from 2500K tungsten to 9900K daylight, and Kino Flo has set up a fourth channel called Gel. The Gel channel includes Kino Flo presets such as blue & green screen, sodium vapour, mercury vapour and over 100 well-known lighting gels. In addition, there is also a fifth channel for Hue Angle control and a sixth channel for Saturation. These two channels behave like a traditional colour wheel, where you have white light in the center and the Hue angle determines the colour along a 360-degree range. Saturation determines how much colour is applied. The second colour Mode provides individual red, green and blue (RGB) control. The RGB Mode is a great way to work with apps with predetermined RGB presets or colour wheels.The newly introduced Special Effects Mode gives full access to Kino Flo designed effects like Fire, TV, Police, Paparazzi and many more. In addition you can fine tune these effects to your needs and safe them on the preset buttons.

Item Type 1 x LED Light Panel

Included Light Modifier 1 x Grid/Louver

Included Filters Soft Diffusion (Built-In)

Included Storage Case None

Lumens Not Specified by Manufacturer

Photometrics 229 fc / 2470 Lux at 3.3' / 1 m

28 fc / 312 Lux at 9.8' / 3 m

10 fc / 117 Lux at 16.4' / 5 m

Color Temperature 2500 to 9900K

Color Modes RGB, Daylight, Tungsten

Color Accuracy Standard CRI 95

Cooling System None

Dimming Yes, Built-In Dimmer

1 to 100%

Built-In Flash No

Umbrella Mount No

Front Accessory Mount Proprietary

Connectivity

Wireless Remote Control Type Wireless DMX

Power & I/O

Power Source AC Power (Cable Included) *Requires Power Supply/Controller (Included)

Battery (Not Included) *Requires Power Supply/Controller (Included)

Inputs/Outputs Light Fixture

To Power Supply/Controller: 1 x Built-In Cable with Unspecified Power/DMX Input

Power Supply/Controller

To Light Fixture: 1 x Unspecified Power/DMX Output

1 x XLR 5-Pin DMX Input

1 x XLR 5-Pin DMX Output

1 x XLR 3-Pin Power Input

1 x IEC Power Input

AC Input Power 100 to 240 VAC, 50 / 60 Hz at 1.3 A

DC Input Power 24 VDC

Included Adapter / Cable 1 x Edison Plug to IEC Cable

Inline Switch No

Power Pass-Thru No

Power Consumption 150 W

Mounting

Fixture Mounting 1 x Lollipop Receiver

Included Adapter 1 x Lollipop Mount: 5/8" Receiver to Lollipop Ball

General

Display None

Materials Aluminum, Polymer (Housing)

Dimensions 39 x 10.5 x 6" / 99.1 x 26.7 x 15.2 cm (Fixture)

Weight 17 lb / 7.71 kg

Packaging Info

Package Weight 25 lb

Box Dimensions (LxWxH) 43 x 13.5 x 7.25"

Kino Flo Flight Case For Diva 30 Fixture And Acces

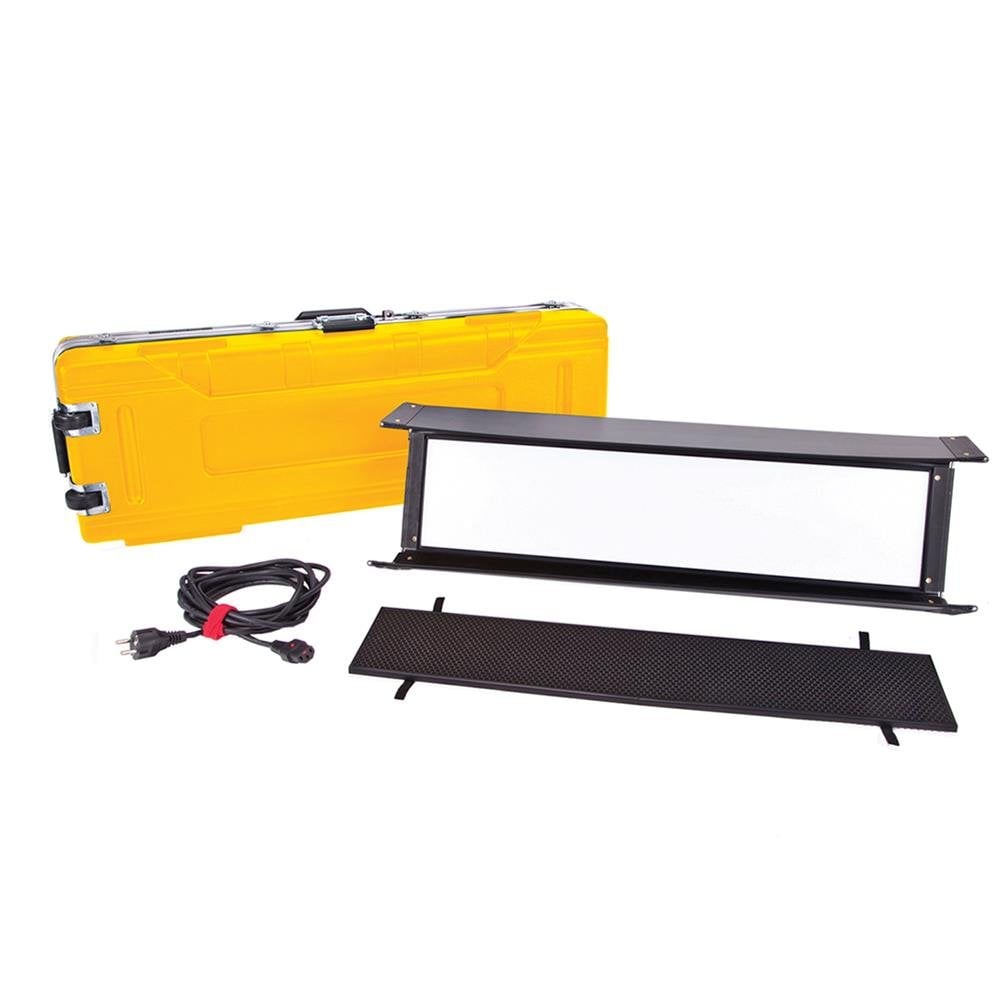

In the Box

Kino Flo Diva-Lite LED 30 DMX

Kino Flo Louver for Diva-Lite 30 (90°)

Kino Flo MTP-LBC 41 Lollipop with Baby Receiver Curve (16mm)

Gel Frame

Kino Flo Flight Case for Diva 30 Fixture and Accessories (Yellow)
