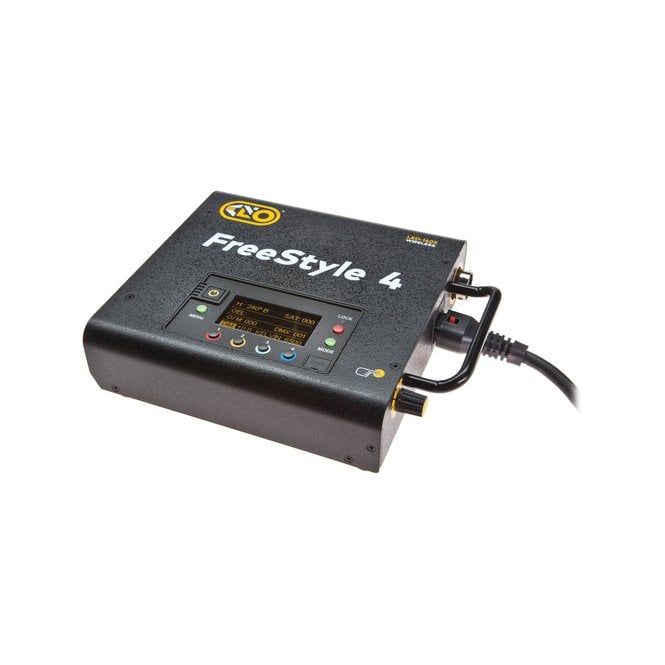

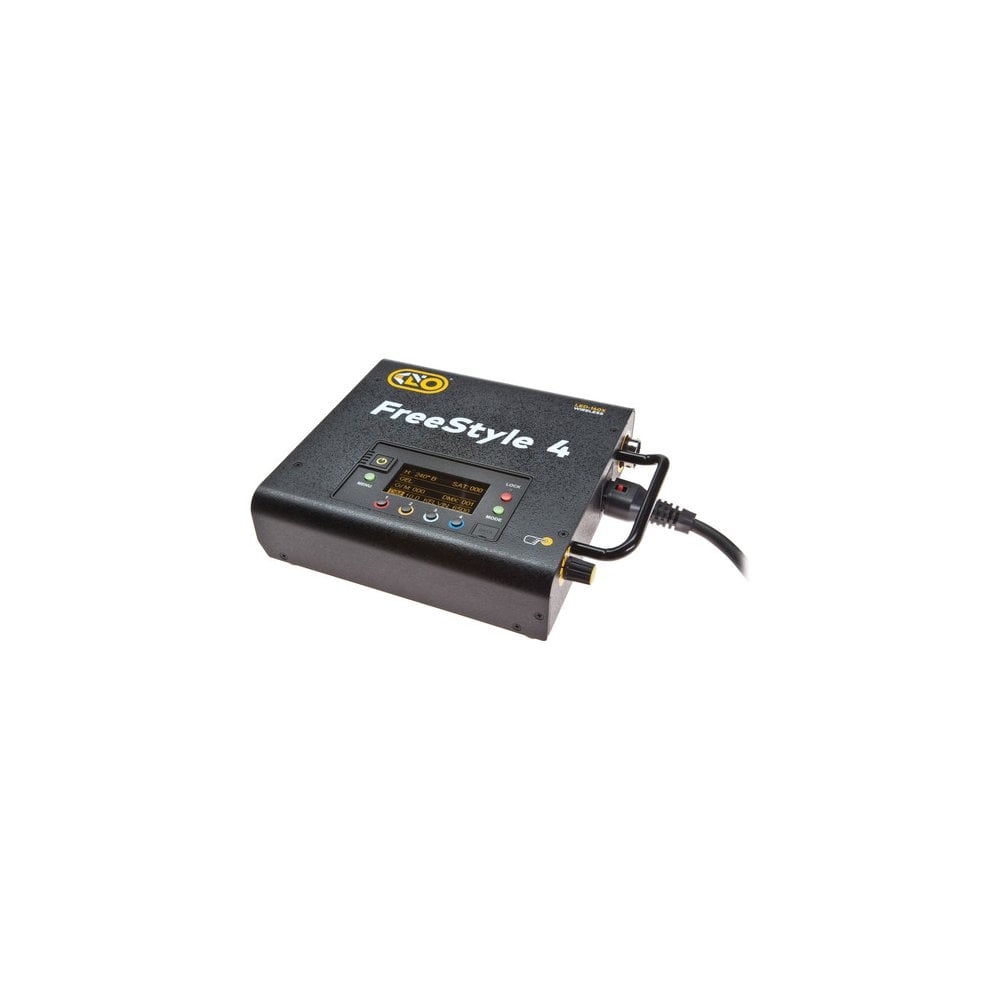

Kino Flo LED-140X-230U FreeStyle 140 LED DMX Controller, Univ 230U

code: LED-140X-230U
  • £1,278.00
  • RRP: £1,278.00
Item Available | Usually dispatched within 24 hours
Loading...

Features

  • Controller for FreeStyle T44 Fixture
  • 2700 to 6500K in White Mode
  • Dimming 100 to 1%, Green/Magenta Control
  • Extended Kelvin Mode from 2500 to 9900K

kino Flo LED-140X-230U (LED140X-230U, LED_140X-230U, LED/140X-230U, LED 140X-230U) FreeStyle 140 LED DMX Controller, Univ 230U.

This Kino Flo FreeStyle 140 LED DMX Controller for FreeStyle T44 Bulbs comes with a power cord for running on 230 VAC while controlling and powering up to four T44 LED tubes. The controller features four modes that provide near total control of the output of the LED tubes (LED tubes not included). In white mode, the unit drives LED tubes output light with a color temperature range between 2700 to 6500K. It also enables dimming and green/magenta adjustment. Gels/Hue expands the color temperature range to 2500 to 9900K while providing access to background keying presets and over 100 lighting gel looks.

RGB mode provides access to the individual red, green, and blue LED luminaries for precise control. FX Mode provides customizable presets. The integrated display screen shows dim, Kelvin, green/magenta shift, and the DMX Channel. Four built-in buttons default to four Kelvin presets, but you can customize the settings of the buttons. The built-in control knob lets you set dimming, Kelvin, green/magenta levels and DMX address. The controller supports both wired and wireless DMX, and it accepts worldwide power inputs as well as 18 to 36 VDC.

Menus

  • White: dimming, tunable Kelvin range from 2700K tungsten to 6500K daylight; Green/Magenta controls
  • Gels/Hue: extended Kelvin color range from 2500-9900K and provides access to Kino Flo presets such as blue & green screen, sodium vapor, mercury vapor as well as over 100 well-known lighting gels
  • RGB: provides access to individual red, green, and blue control. Works with Apps with predetermined RGB presets or color wheels
  • FX: custom presets like Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse, and Scroll with control parameters that can be altered. For example, Lightning effect has a "Storm" and "Frankenstein" preset, but can change the Rate to provide additional variation
  • The controller can dim your LED tubes from 100% brightness down to 1%
  • The controller comes with a Lumen Radio Wireless 230 VAC power cord, but can run off of 100 to 240 VAC at 50/60 Hz. You can also power the controller vie a 24 VDC battery with 3-pin XLR connector.
View More Details
  • Connections: Power, AC Input: IEC Connector, DC Input: 3-Pin XLR, DMX In & Out: 5-Pin XLR (Male & Female), USB: Mini-B
  • Dimming Range: 100 to 1% Brightness
  • Power: Voltage, AC: 120 to 240 VAC, 50/60 Hz, DC: 18 to 36 VDC, 150 W, Draw, AC: 0.65 A @ 120 VAC, DC: 6.25 A @ 24 VDC, Fuse, 3.15 A/250 V
  • Dimensions: 9.5 x 4.5 x 2.5" / 24.13 x 11.43 x 6.35 cm
  • Weight: 4.5 lb / 2.04 kg
View More Details

In The Box:

  • Kino Flo FreeStyle 140 LED DMX Controller for FreeStyle T44 Bulbs, (230 VAC Cord)
  • 230 VAC Power Cord
View More Details
