Manfrotto MAN-FF3033 Pro Studio Rail System 33 Kit

code: MAN-FF3033
  • £2,141.62
  • RRP: £2,141.62
Availability | Usually dispatched within 24 hours


  • Sky track accessories
  • Studio accessories
  • professional al reliable accessories.

Manfrotto MAN-FF3033 (MANFF3033, MAN FF3033, MAN/FF3033, FF3033) Pro Studio Rail System 33 Kit.

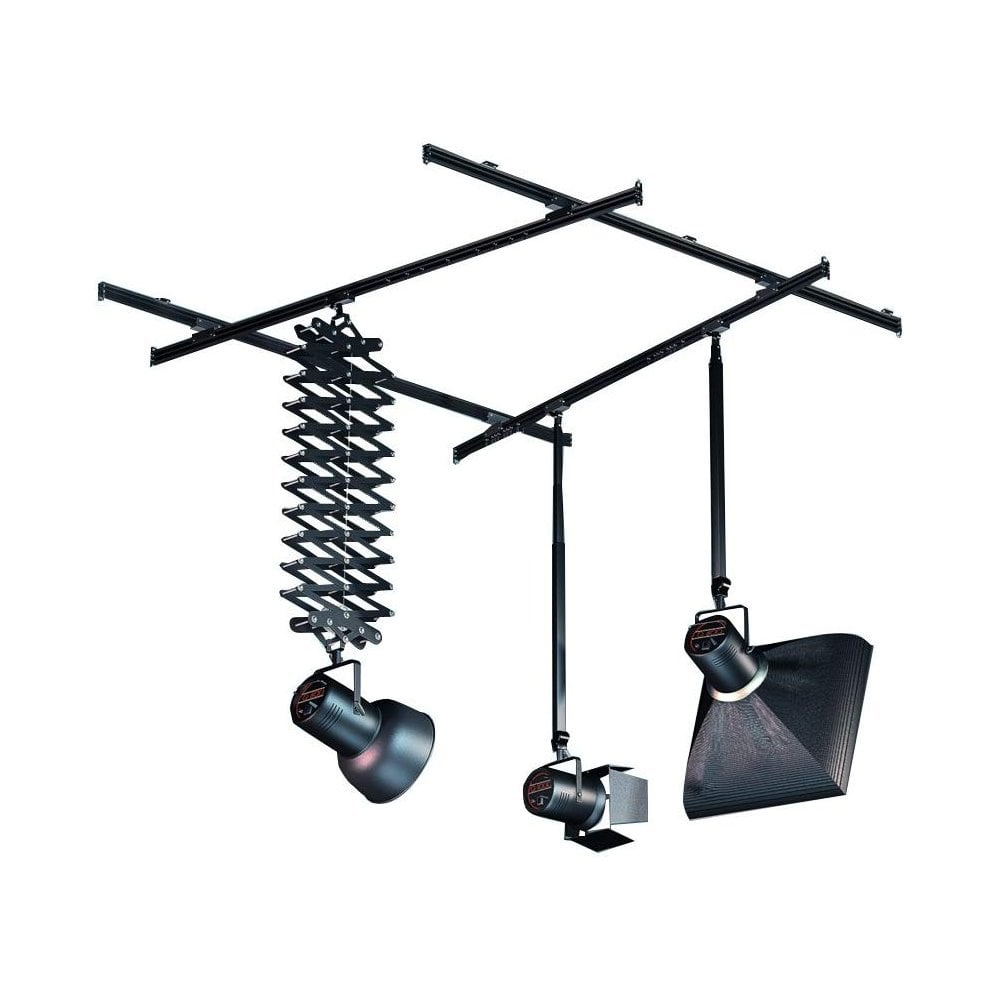

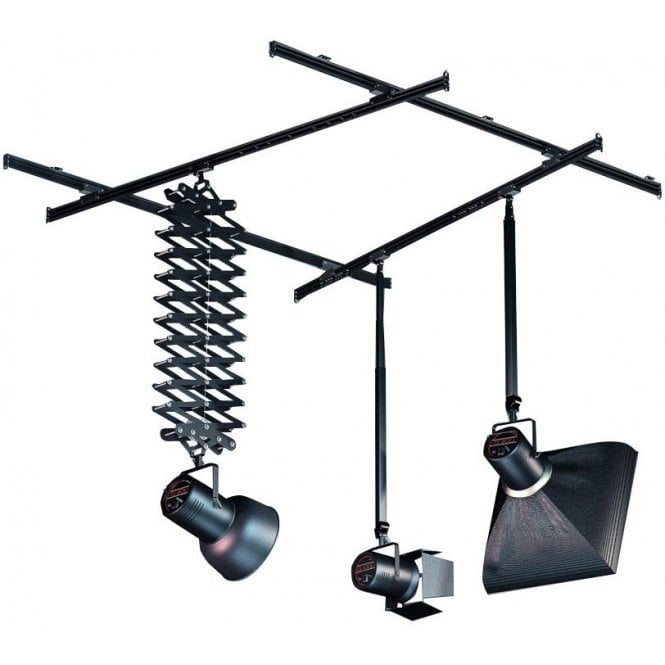

The Pro Studio Rail System is a modular overhead lighting suspension system which can be expanded or modified to your requirements. It provides precise positioning of lights with ease and speed, eliminating the clutter of light stands and power cables on the floor. The systems utilize a combination of rails, carriages, telescopic posts, and manual spring/cable assisted or motorized pantographs.

This is a basic-plus system, for a medium-size studio which includes two telescoping posts that extend from 34 to 80 inches, and one pantograph that extends from 1'6" to 6'6".

  • Aluminum rails in this kit are 9' 10" x 9' 10" (2.9 x 2.9 M).
  • This kit features 2 stationary, and 2 moving rails.
  • The Pantograph supports a load of up to 26lbs suspended from 1' 6" to 6' 6" using only the friction device, while loads up to a maximum of 40lbs require the use of the optional springs. The pantograph can be adjusted to keep suspended loads from 2lbs to 10lbs perfectly balanced. The colored ring can adjust the pantograph's friction; this will ensure that the load remains stable when set in position, but that it will move smoothly up and down when necessary. It is advisable to use springs to aid raising the pantograph.
  • Each pantograph extends from 1'6" to 6'6".
  • Nylon wheels with metal ball bearings ensure safe operation with loads of up to 39.5 lbs.
  • Extruded aluminum rails enable efficient utilization of studio perimeter walls and corners for backlighting, drapes, and background paper.
  • All components are black, to eliminate unwanted reflections.
  • Accessories may be ordered separately, to augment and customize the system to your specific requirements.
  • Dimensions: 4 Rails - 9' 10" (3 M) each
  • Kit Weight: Approx 75 lbs (34 kg).

In The Box

  • Manfrotto Pro Studio Rail System 33 Kit - Includes: 2 Fixed, 2 Mobile Rails 9'10" Each, Brackets, Carriages, Spigots, End Stops, 2 Telescopic Poles, 1 Pantograph - Supports 3 Lights
  • 4 x 9' 10" Rails (FF6003B)
  • Top 2 Pantograph (FF3512N86)
  • 2 x Telescoping posts (FF3248)
  • 2 x Double sliding carriages (FF3232)
  • 2 x Double sliding carriages with single brakes (3236)
  • 3 x 4-Wheeled sliding carriages with 5/8" spigots (FF3230)
  • 6 x Mounting brackets (FF3210)
  • 2 x 5/8" Studs (013)
  • 3 x Sets of 4 End stops (FF3207)
  • 3 x Safety cables (FF3276).
