1200W HMI fresnel light kit, 90-250V worldwide use Our HMI ballasts provide the latest standards in ballast technology. Flicker free, low noise, high output, this ballast is ideal for most demanding situations. The rugged and compact design offers easy handling in the field. Safety circuits such as over-voltage, over-temperature and short-circuit protection provides safe and reliable operation dimming to 50% of full power. Active Line Filter (A.L.F.) and P.F.C assures consistent color output even durning dimming or main voltage fluctuations. Universal voltage at a switch of a button and flicker free mode. Compatible with all 575-1200W Fresnel and PAR units.
Specifications:
Source Type
HMI Fresnel, G38 Bulbs Socket
Power
1200W
Color Temperature
6000k
Ballast
Dimmable EB Ballast
Mount
Spigot 28mm (1-1/8" pin)
Lens Diameter
175mm
Filter Socket Diameter
229mm
Barndoors Socket Diameter
245mm
Power Cord Length
7m
Material
Aluminum Alloy
Protection
IP23
Gross Weight
38.7kg - 85.3lbs
Shipping Weight
39kg - 86Lbs
Dimensions ( L x W x H )
52 x 67 x 50cm - 20.5 x 26.4 x 19.7in
Illumination Angle
spot 6° / flood 58°
Illumination Power - Spot Mode
5m:30000 lux 10m: 7500 lux 15m:3340 lux
Illumination Power - Flood Mode
5m:2000 lux 10m: 500 lux 15m:220 lux
code:

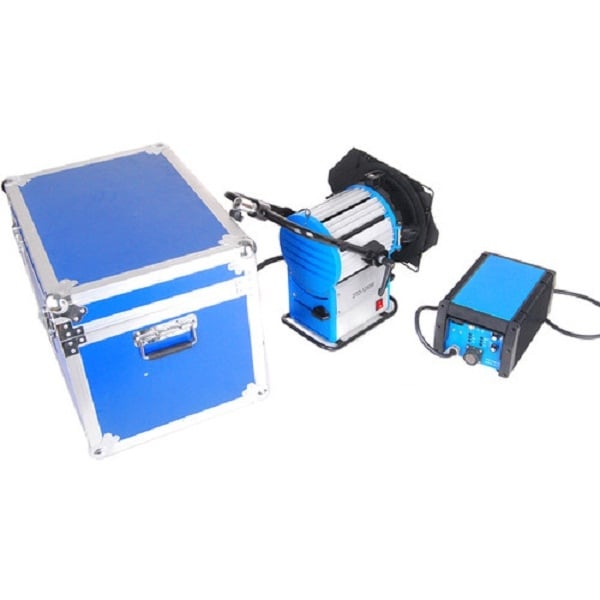

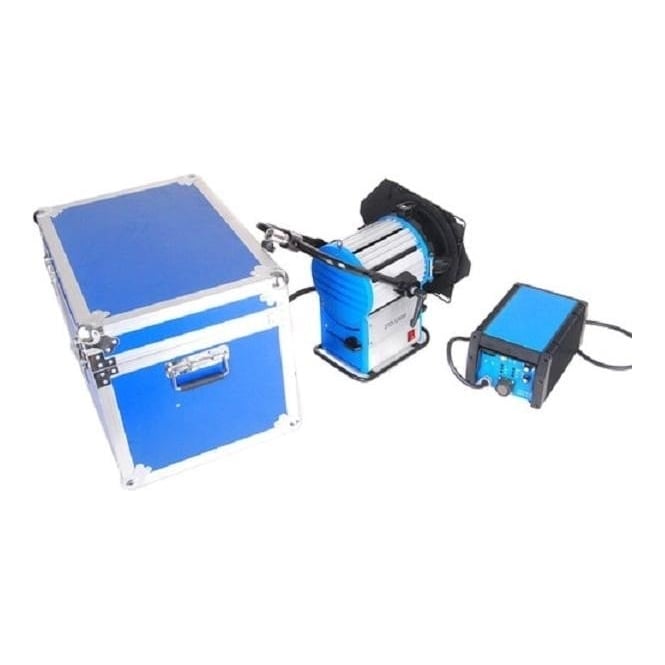

Includes In The Box:
1 x 1200w HMI fresnel light head
1 x Set of 4 leaf barndoor
1 x Yoke bar with 28mm spigot
1 x 575W / 1200W Electronic ballast (90-250V worldwide use)
1 x 7m power cable (ballast to lamp head)
1 x 1.5m power cable (power socket to ballast)
1 x OSRAM bulb
1 x Aluminum travel case
