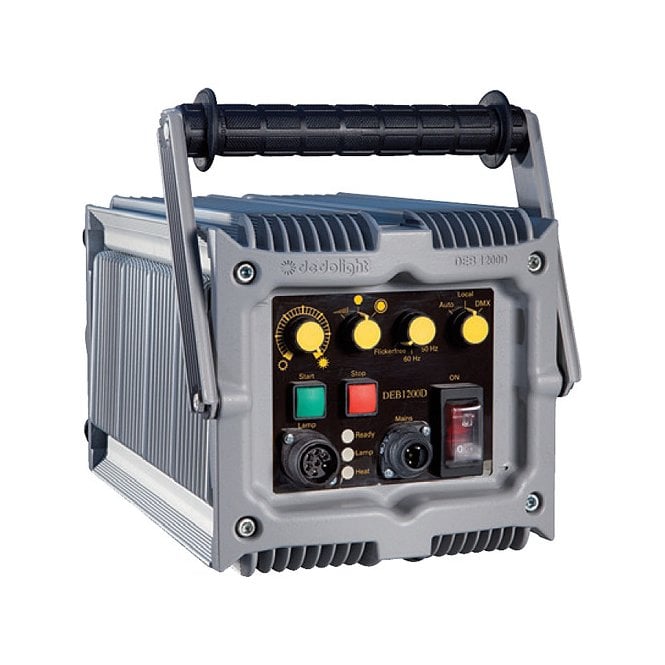

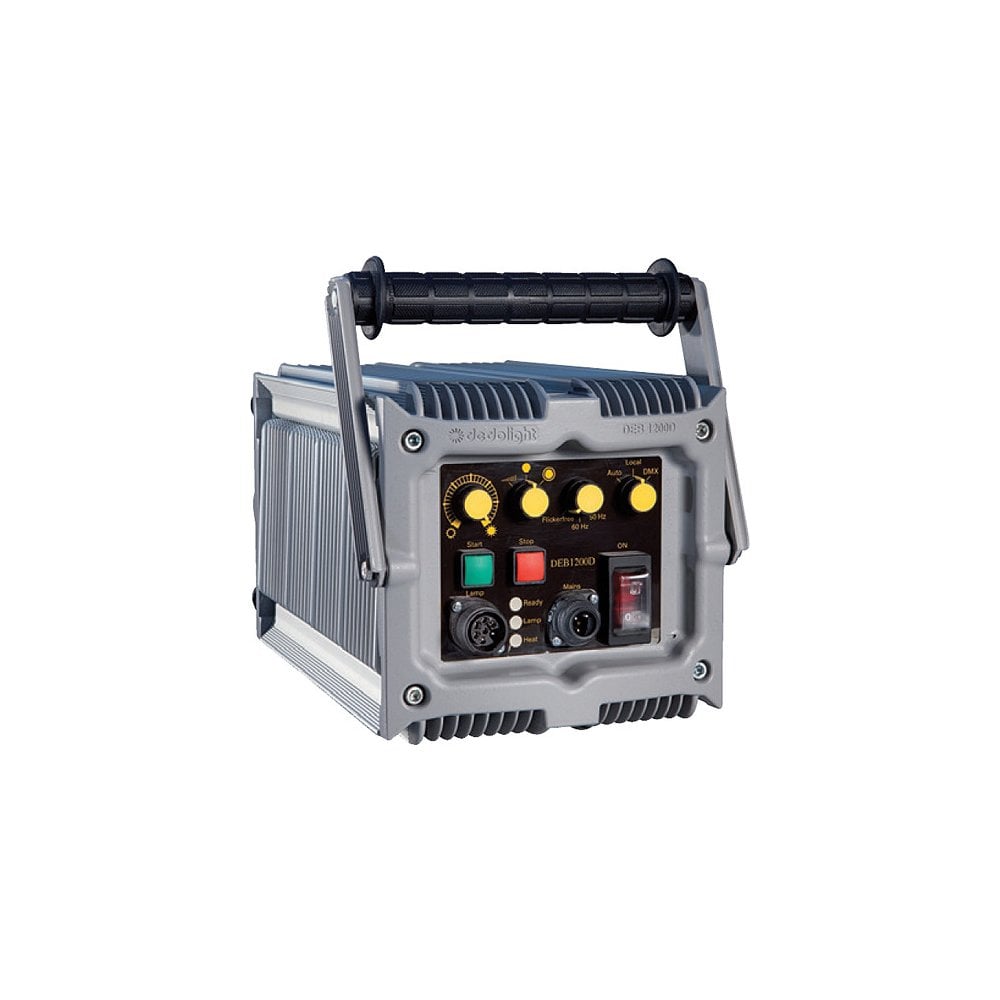

Dedolight DEB1200D Electronic Ballast

Dedolight DEB1200D (DEB-1200-D, DEB/1200/D, DEB_1200_D, deb1200d) Electronic Ballast

Designed to power the DLH1200D HMI Lamp Head, the DEB1200D Electronic Ballast from Dedolight features DMX control, advanced heat dissipation and multi-voltage compatibility.

No effort has been spared to safeguard the unit's operation and maintain consistency of the output. Surge, overload and short-circuit protection are employed to guard against electrical spikes while PFC (active Power Factor Correction) maintains consistent current. The switchable silent ventilator remains off during normal operation and operates only under high heat conditions. The unit is dimmable from 50 - 100% via DMX and like the lamp head, features rainproof construction.

Attributes

• Low heat dissipation
• Silent ventilator remains off during normal operation and operates under high heat conditions only
• Active Power Factor Correction (PFC)
• Functional range from 90 - 264 VAC
• Overload protection
• Surge protection
• Short circuit protection
• Auto start function
• DMX control
• Rainproof construction
• Ballast features 30 second "book-type" access to all elements and electronics

• Output Power: 1200 W
• Input Voltage: 90 - 264 VAC
• Dimming Range: 50-100%
• DMX: Yes
• Fan: Switchable Silent Mode function
• Water Resistance: Rainproof
• Indicators: 3 Status LEDs: Ready, Lamp Heat
• Dimensions: 12.95 x 9.0 x 9.07" (329 x 228 x 230 mm)
• Weight: 25 lb (11.4 kg)

In the Box

• Dedolight DEB1200D Electronic Ballast (90 - 264 VAC)
