Kino Flo SYS-FT24U FreeStyle T24 DMX System Universal

code: SYS-FT24U
  • £3,088.00
  • RRP: £3,088.00
Item Available | Usually dispatched within 24 hours
Loading...

Features:

  • FreeStyle T24 Fixture
  • DMX Controller
  • Gel Presets and FX Mode
  • 2500-9900K Adjustable Color Temperature

Kino Flo SYS-FT24U (FT24U, SYSFT24U, SYS_FT24U, SYS/FT24U) FreeStyle T24 DMX System Universal

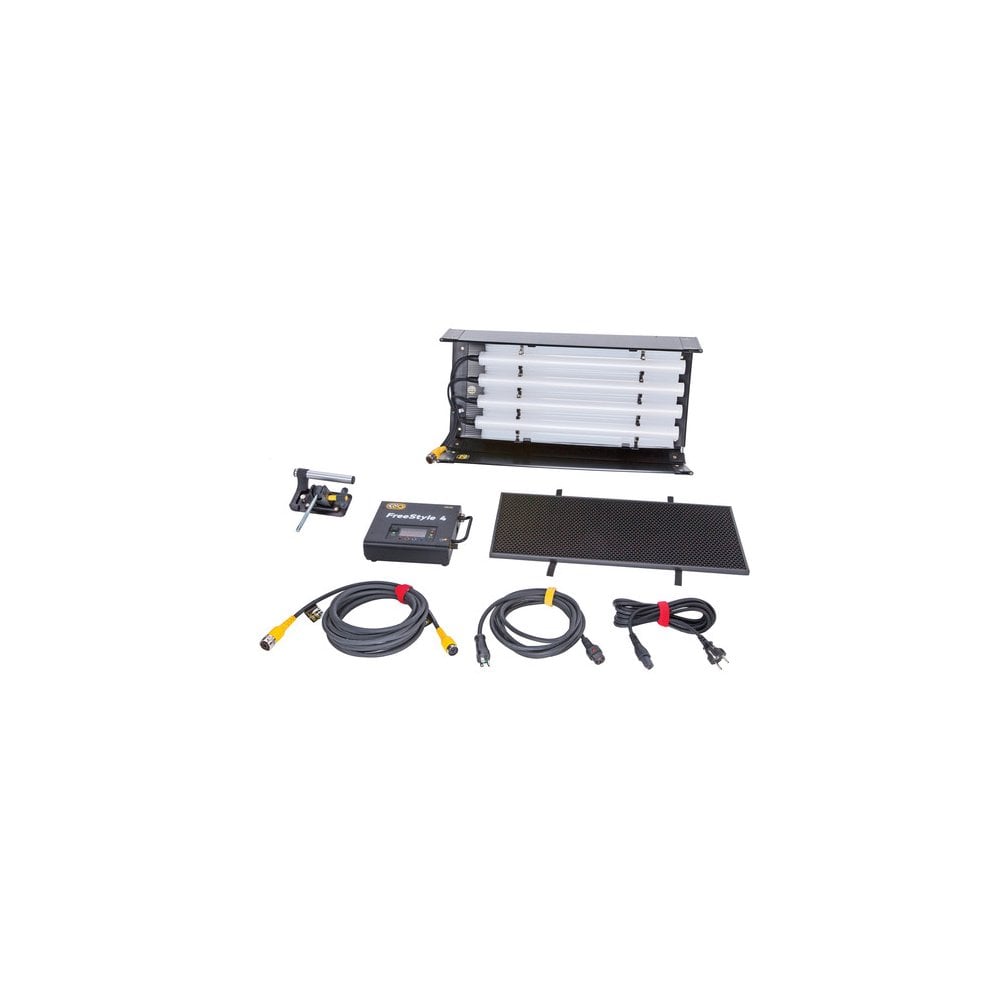

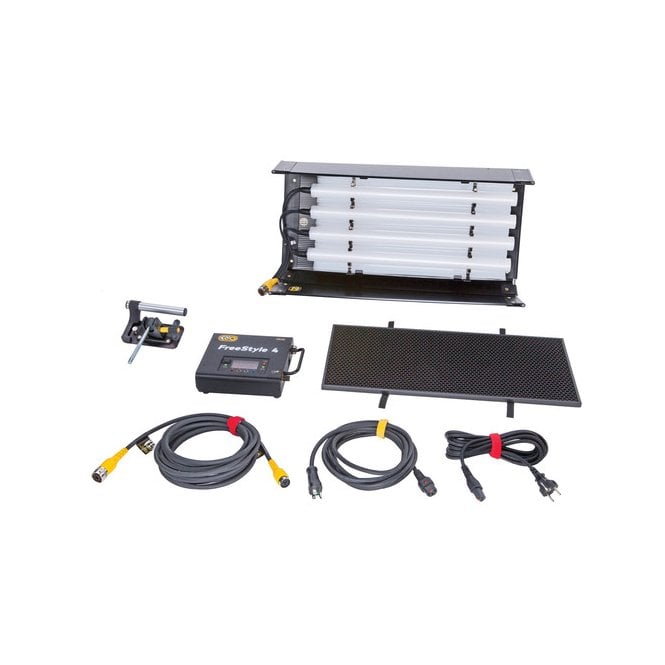

This FreeStyle T24 DMX System Universal from Kino Flo features the FreeStyle T24 LED fixture and FreeStyle 120 LED DMX controller. It utilizes four 2' LED tubes and also includes the KinoGrip K41 mount with Baby receiver, 25' head extension cable, US power cable, and a 2-pin Euro power cable.

Slim and compact, the FreeStyle T24 DMX System offers the same Color Science LED technology found in all Kino Flo LEDs. The portable and lightweight fixture can fit easily into tight locations or be handheld with the included KinoGrip 41K mount, which also allows mounting via its 3/8" pin. Additionally, the back of the fixture comes with a twist-on removable center mount, which can be adapted to work with multiple Kino Flo mounting adapters.

The FreeStyle DMX Controller features four individual modes: White, Gels/Hue Color, RGB Color, and FX. The White mode features dimming from 1 to 100% and a tunable range of 2700 to 6500K. In the Gels/Hue Color mode, the range is expanded from 2500 to 9900K. The gel channel also includes Kino Flo presets such as blue and green screen, sodium vapor, and mercury vapor, as well as over 100 well-known lighting gels. RGB Color mode gives individual control of red, green, and blue LEDs, and in FX mode you are provided access to popular effects such as candle, fire, TV, police, lightning, paparazzi, pulse, and scroll.

Kino Flo FreeStyle T24 LED Fixture

Slim and compact, the FreeStyle T24 LED Fixture from Kino Flo offers the same Color Science LED technology found in all Kino Flo LEDs. The portable and lightweight fixture can easily fit into tight locations or can be handheld with a separately purchased KinoGrip 41K mount. For mounting on light stands, the back of the fixture features a twist-on removable KinoGrip center mount, which can be adapted to work with multiple Kino Flo mounting adapters. The unit also comes with built-in barndoors and for additional light-shaping options, a reflector and 90° louver are included.

The FreeStyle T24 LED fixture requires separately purchased LED tubes, a head cable, and a DMX controller, and the controller features four individual modes: White, Gels/Hue Color, RGB Color, and FX. The White mode features dimming from 1 to 100% and a tunable range of 2700 to 6500K. In the Gels/Hue Color mode, the range is expanded from 2500 to 9900K. The gel channel also includes Kino Flo presets such as blue and green screen, sodium vapor, and mercury vapor, as well as over 100 well-known lighting gels. RGB Color mode gives individual control of red, green, and blue LEDs, and in FX mode you are provided access to popular effects such as candle, fire, TV, police, lightning, paparazzi, pulse, and scroll.

Accepts four 2' LED tubes

Adjustable color temperature from 2500 to 9900K

1 to 100% dimming without color shifts

Flicker-free and quiet operation

Gel presets include blue and green screen, sodium vapor, and mercury vapor, as well as over 100 well-known lighting gels

FX mode for popular effects such as candle, fire, TV, police, lightning, paparazzi, pulse, and scroll

Full-range onboard and DMX dimming

DMX wireless link

Kino Flo FreeStyle 2' LED Tube

This FreeStyle 2' LED Tube from Kino Flo is compatible with the FreeStyle T24 LED Fixture. The LED tube can operate inside the fixture or independently with only the wiring harness. The LED tubes also have an aluminum rail on the backside of the lamp that can be used as an access point for alternative mounting accessories.

Kino Flo FreeStyle 140 LED DMX Controller for FreeStyle T44 Bulbs, (120 VAC Cord)

This Kino Flo FreeStyle 140 LED DMX Controller for FreeStyle T44 Bulbs comes with a power cord for running on 120 VAC while controlling and powering up to four T44 LED tubes. The controller features four modes that provide near total control of the output of the LED tubes (LED tubes not included). In white mode, the unit drives LED tubes output light with a color temperature range between 2700 to 6500K. It also enables dimming and green/magenta adjustment. Gels/Hue expands the color temperature range to 2500 to 9900K while providing access to background keying presets and over 100 lighting gel looks.

RGB mode provides access to the individual red, green, and blue LED luminaries for precise control. FX Mode provides customizable presets. The integrated display screen shows dim, Kelvin, green/magenta shift, and the DMX Channel. Four built-in buttons default to four Kelvin presets, but you can customize the settings of the buttons. The built-in control knob lets you set dimming, Kelvin, green/magenta levels and DMX address. The controller supports both wired and wireless DMX, and it accepts worldwide power inputs as well as 18 to 36 VDC.

Menus

White: dimming, tunable Kelvin range from 2700K tungsten to 6500K daylight; Green/Magenta controls

Gels/Hue: extended Kelvin color range from 2500-9900K and provides access to Kino Flo presets such as blue & green screen, sodium vapor, mercury vapor as well as over 100 well-known lighting gels

RGB: provides access to individual red, green, and blue control. Works with Apps with predetermined RGB presets or color wheels

FX: custom presets like Candle, Fire, TV, Police, Lightning, Paparazzi, Pulse, and Scroll with control parameters that can be altered. For example, Lightning effect has a "Storm" and "Frankenstein" preset, but can change the Rate to provide additional variation

The controller can dim your LED tubes from 100% brightness down to 1%

The controller comes with a Lumen Radio Wireless 120 VAC power cord, but can run off of 100 to 240 VAC at 50/60 Hz. You can also power the controller vie a 24 VDC battery with 3-pin XLR connector.

Kino Flo KinoGrip K41 Twist-On Mount with 5/8" Baby Receiver

Make your fixture easier to transport and handle with this KinoGrip K41 Twist-On Mount with 5/8" Baby Receiver from Kino Flo. Able to work with fixtures featuring Twist-On mating plates, this mount will add a grip handle for easier maneuvering of the light, as well as a wing knob for making quick adjustments and locking the light in position.

Kino Flo Extension Cable 150 for Select LED System (25')

The 25' Extension Cable 150 for Select LED System from Kino Flo provides extra distance between the Select LED head and its ballast. Up to 2 extensions can be joined for a total of 50'.

View More Details

Light Fixture

  • Color Temperature: 2500 to 9900K
  • Dimming: Yes, 0 to 100%
  • Fixture Dimensions: Fixture: 28.0 x 13.0 x 3.5" / 71.1 x 33.0 x 8.9 cm
  • Fixture Weight: 8 lb / 3.63 kg

Connectors

  • Power Input Connector: Proprietary
  • DMX Connector: 5-Pin XLR

Mounting

  • Fixture Mount: None

Power

  • AC Input Power: 100 to 240 VAC, 50 / 60 Hz
View More Details

In The Box:

  • Kino Flo Fixture Shell for T24 LED Fixture
  • Kino Flo FreeStyle T44/T24 Locking Harness
  • Kino Flo Louver for 2ft 4Bank (90°)
  • Kino Flo FreeStyle T24 Reflector
