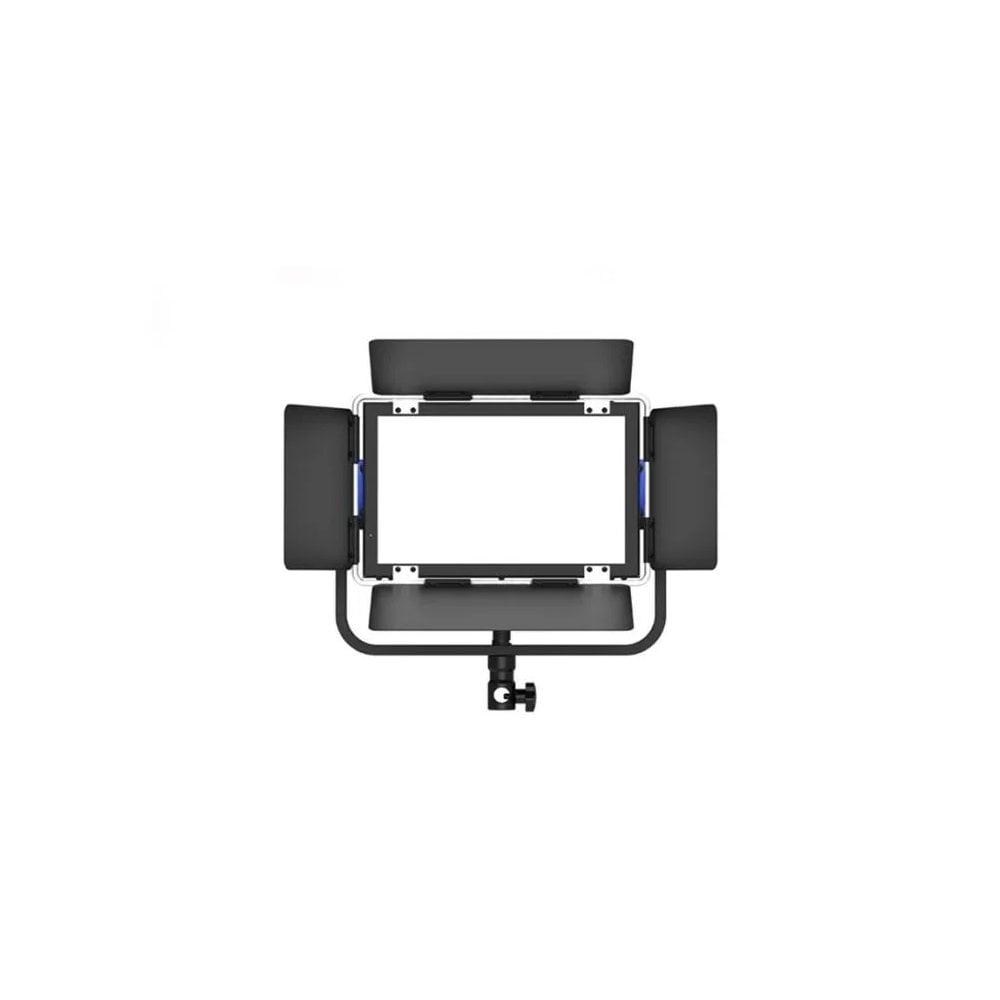

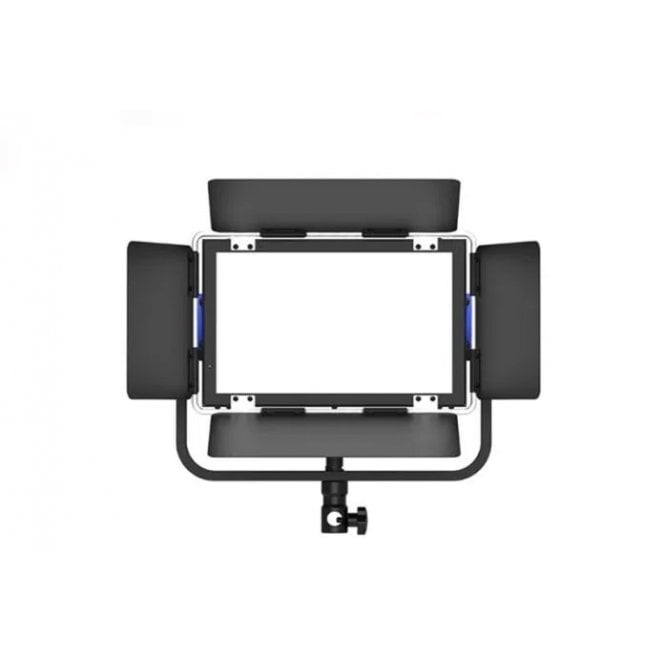

SWIT 100w Mini Size Studio Rgbw Light(CL-M100C, CLM100C, CL/M100C)

Mini Size 100W RGBW Panel

CL-M100C is an 100W RGBW SMD LED panel light of 1: 1/2 mini size designed, high intensity and fanless, for broadcast studio, live entertainment, theater, film applications, especially the low celling space setup.

3000 Lux @ 1 meter

With 170pcs RGB LEDs and 340pcs White LEDs, CL-M100C provides 100W light output, 3000Lux luminance at 1 meter distance, 62° half-peak wide beam angle, 2800K-10000K continuously adjustment and G/M ±1.00 support. 0 to 100% PWM digital dimming, smoothly and non-flickering.

Time Division Tech, Brighter Color Light

The regular RGB panels are high bright in CCT mode, but much lower in RGB color mode. That’ s because in a regular RGB light, the RGB color LED and White LED have fixed rates to share the total power of the light, and when output color lights, the RGB LEDs use only 1/3 power. By SWIT unique Time Division Drive tech, full power of the light can be assigned to RGB color LEDs, and greatly increased the intensity of color light. The 100W CL-M100C color light intensity equals to a regular 300W RGB color light intensity.

No Fan, No Noise

The large size fin consender inside CL-M100C ensures 100W high bright output within such a small size housing, no fan, no noise, to provide a silent video production environment.

Control Panel

CL-M100C rear control panel supports 5-pin DMX in & out, and a large color LCD with menu and hot keys for convenient color picking. The USB-A port is for firmware update or user color profile upload, and to power wireless DMX receiver.

LED 170pcs RGB + 340pcs W

Illuminance 3000Lux @ 1m

Beam angle 62° half peak

Colour Temperature 2800K～10000K, G/M±1.00

CRI 96

TLCI 93

Power 100W

USB USB-A power out & firmware update

DMX DMX512, 5pin XLR IN & OUT

AC Power PowerCON TRUE1 AC 100-240V 50/60Hz input & output

Dimension 275×175×130mm

Lighting Area 245×146mm

Weight Net 5.1kg With package 7kg

In the Box
