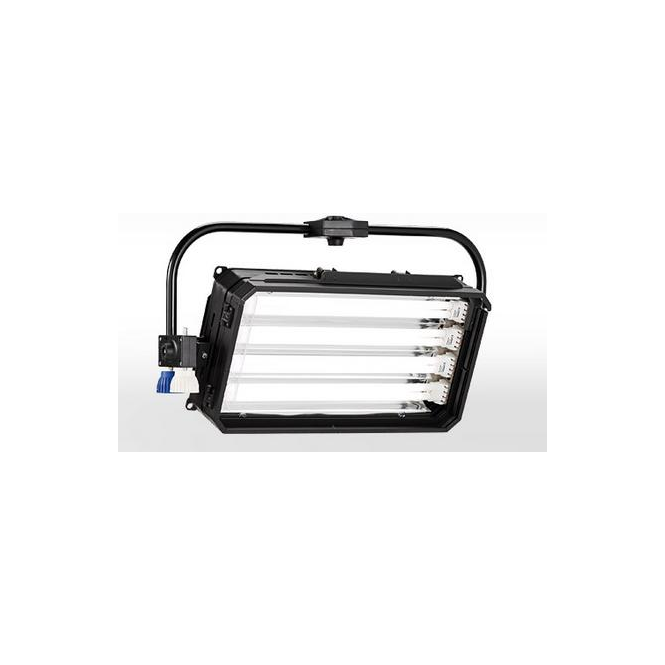

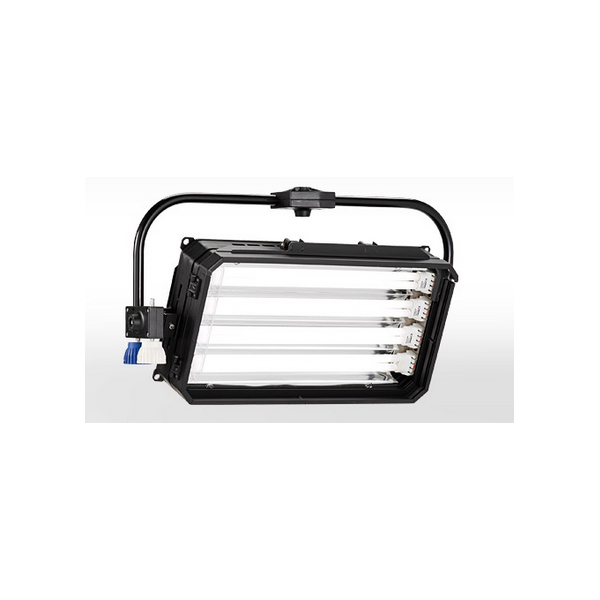

L1.84004.I STUDIO COOL 4 (Multicontrol, P.O., black, 220-250 VAC, Schuko)

Constructed with rigid aluminium extrusion profiles, all three models are available with three control module options. The Multi Control version gives full DMX and 0-10 V analog control features, as well as a built-in manual dimmer on the back of the fixture. The Phase Control version allows conventional dimming via optional phase load adapters. The basic version is equipped with a 2-position switch, for single On/Off control of one or two tubes. The series covers a performance spectrum of 110-220 Watt.

Features:

  • Hinged accessory holder
  • Removable electronics and ballast module
  • Lightweight but rugged aluminium extrusion housing
  • 3 module versions: 4-Bank, 2-Bank, 2+2-Bank
  • 3 control versions: Dual Switch, Multi Control, Phase Control
  • 2 adapter options: yoke or baby plate
  • Convertible reflectors: 90° and 120°
  • Extensive accessories
  • Dimming 1% - 100% @230 V; 3% - 100% @ 120 V
  • Flicker-free < 1%
  • Operating frequency at full load 40 kHz
  • 'Daisy-chain' up to six 4-Banks in one circuit

Specification:

Lamphead Type: Flood, 250 W
Reflector Type: High purity aluminum
Lamp Type: TC-L 55 W
Power Consumption: 4 x 55 W
Voltage Range: 230 V / 120 V
Lamp Base: 2G11
Dimmability: Yes, 1% - 100% @230 V; 3% - 100% @120 V
Cable Options: Schuko
Correlated Color Temperature: 3200 K / 5600 K
Beam Angle: 90° / 120°
Product Weight: 7,8 kg / 17.2 lbs.
Shipping Weight: 10,4 kg / 22.9 lbs.
Product Size (HxWxL): 435 x 733 x 176 mm / 17.1" x 28.9" x 6.9"
Shipping Size (HxWxL): 600 x 765 x 285 mm / 23.66" x 24.09"
Lens Diameter: -
Accessory Diameter: 599 x 312 mm / 23.58" x 12.28"
Barndoor Size: 601 x 312 mm / 23.66" x 24.09"
Mounting: Spigot 28 mm / 1 1/8" (1.1")
Protection Class: I/IP 20
Certifications: CE, CB, GS, cNRTL
