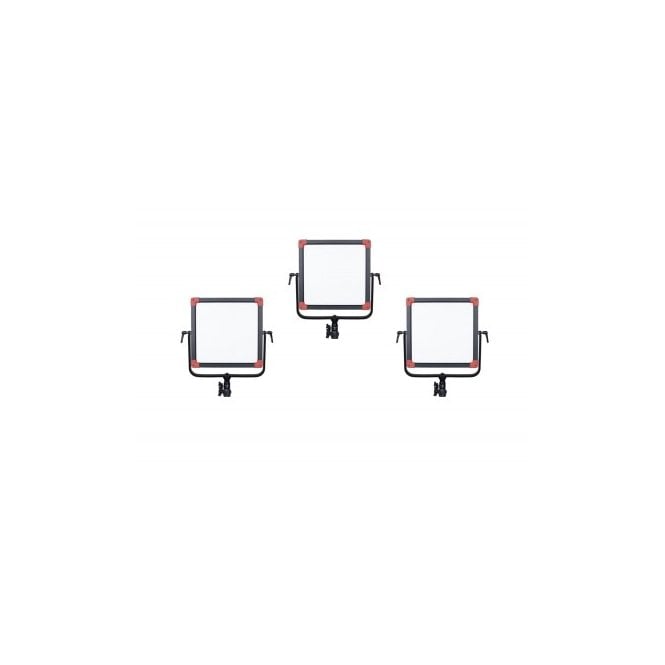

Swit PL-E60D 3KIT Set of 3 x 3rd Generation Natural-Born-Soft TLCI-99 60W LED Panel Light, ultra slim, patent, V-Mount, DMX

SWIT PL-E60D 3KIT Set of 3 x 3rd Generation Natural-Born-Soft TLCI-99 60W LED Panel Light, ultra slim, SWIT patent, V-Mount, DMX

PL E60D PLE60D PL-E60D PL/E60D

Specially designed for regular transmission.

320pcs Edge Mounted LEDs, Super thin, area light, soft and glare less: PL-E60D is specially designed for field portable lighting applications. 320pcs SMD-LEDs are mounted in the inner edge of the light frame, and with SWIT unique 90° light guide technology, PL-E60D can output bright, soft and equally spread light, meanwhile, the light body is slim enough and portable, which is an ideal light source for interview kit and field video productions.

Laser Dots 90° Light Guide, High efficiency and super bright: The traditional edge mounted LED lights are always not so bright, because half of the light will go to the backside, even if there’s reflection board, there’s still a lot of light lost.

SWIT innovative technology is to add laser dots with calculated spaces on the reflective glass, so that the multi-angles of edge light will be converged on the laser dots, and output 90° to the front with minimum light lost. Then the slim edge mounted light can also be high brightness.

1500 Lux @ 1 meter, 0-100% flick-free dimming: PL-E60D outputs 60W power, feeds 1500Lux luminance at 1 meter distance (centre), much brighter than other similar size LED panels. The effective beam angle reaches 70°, bounded by 50% decline. PL-E60D also supports 0 to 100% PWM digital dimming, smoothly and non-flickering.

Bi-colour Temperature, 2700K-6500K continuously adjustable: PL-E60D alternated with 2700K and 6500K LEDs, and the output colour temperature can be continuously adjustable between 2700K and 6500K.

High Colour Reveal Ability, CRI Ra 98; TLCI 99: CRI (Colour Rendering Index) is a measure of the ability of a light source to reveal the colours of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the colour reveal ability by camera sensor. Max value 100.

The normal LED light has 80-85 CRI or TLCI, while PL-E60 offers the super high CRI at 98 and TLCI at 99, and will not lost the object original colours.

LCD Screen Display, Dimmer / colour temperature value, battery info: The rear LCD screen can display the current dimmer percentage, colour temperature value, and remaining battery indications.

Quick Adjust Mode, By pressing the adjusting knob:

PL-E60D supports quick-adjusting brightness and colour temperature:

• Press the Dimmer knob, it will switch from 1% stepping to 10% stepping, to quick-adjust brightness;
• Press Colour temperature knob, it will switch from 50K stepping to the following commonly used colour temperature selection: 2700K / 3200K / 4500K / 5600K / 6500K.

DMX512 control, Dimmer and Colour temperature: PL-E60D adopts standard 5-pin DMX in/out port, supports DMX512 protocol, and adjusts dimmer and colour temperature by DMX controller. The dimmer and colour temperature occupy 1 DMX address respectively.

Press and hold dimmer knob for 2s to enter communication address setting interface, the address setting range is 001 to 512. Interaction Control Mode, Control the lights each other without a DMX controller: Press and hold colour temperature adjusting knob for around 2 seconds, the upper left corner of LCD shows "CH" indicating that the communication control mode currently is interaction control mode. In this mode, set the target lights to the same communication address to work normally, and the master-slave machine is not distinguished. Press and hold the dimmer knob for 2s to enter communication address setting interface, the address setting range is 001 to 512.

Interaction Control Mode Demonstration: Set the corresponding "CH" address for the PL-E60D which are in the same network to the requirement. Operate any of the CH 001 light, all the other CH 001 lights can be controlled together.

Max 512 CH addresses can be set.

11-36V Wide Input Voltage By V-mount/Gold mount battery or 4-pin XLR: PL-E60D supports 11-36V wide-range voltage input, with 4-pin XLR DC socket, and equipped with V-mount or Gold mount plate to power by batteries.

(The default battery plate is V-mount.)

Key Features:

• Edge-LED panel with Laser Dots technology
• 320 SMD LEDs located along the edge of the LED panel
• Power 1500 lx @ 1 m
• Consumption 60W
• Colour temperature: continuously adjustable in the range 2700 - 6500 K
• Intensity: continuously adjustable in the range 0 - 100%, PWM flicker-free regulation
• Beam of light: 70 °
• CRI Ra 98
• TLCI 99
• DMX512 protocol, 5p-XLR in / out
• Remote control even without DMX driver
• Power supply: V-mount, 4p-XLR (Gold-Mount / Anton-Bauer battery change option)
• Dimensions: 38.2 x 40.3 x 4.8 cm
• Weight: 3.1 kg

Specifications

• LED: 320pcs SMD LEDs
• Illuminance: 1500Lux @ 1m
• Beam Angle: 70°(50% bounded)
• Colour Temperature: 2700K～6500K
• CRI: 98
• TLCI: 99
• Power: Approx. 60W
• Working Voltage: DC11V～36V
• Dimension: 382×403×48mm
• Lighting Area: 257×257mm
• Weight: 3.2kg

What's in the box

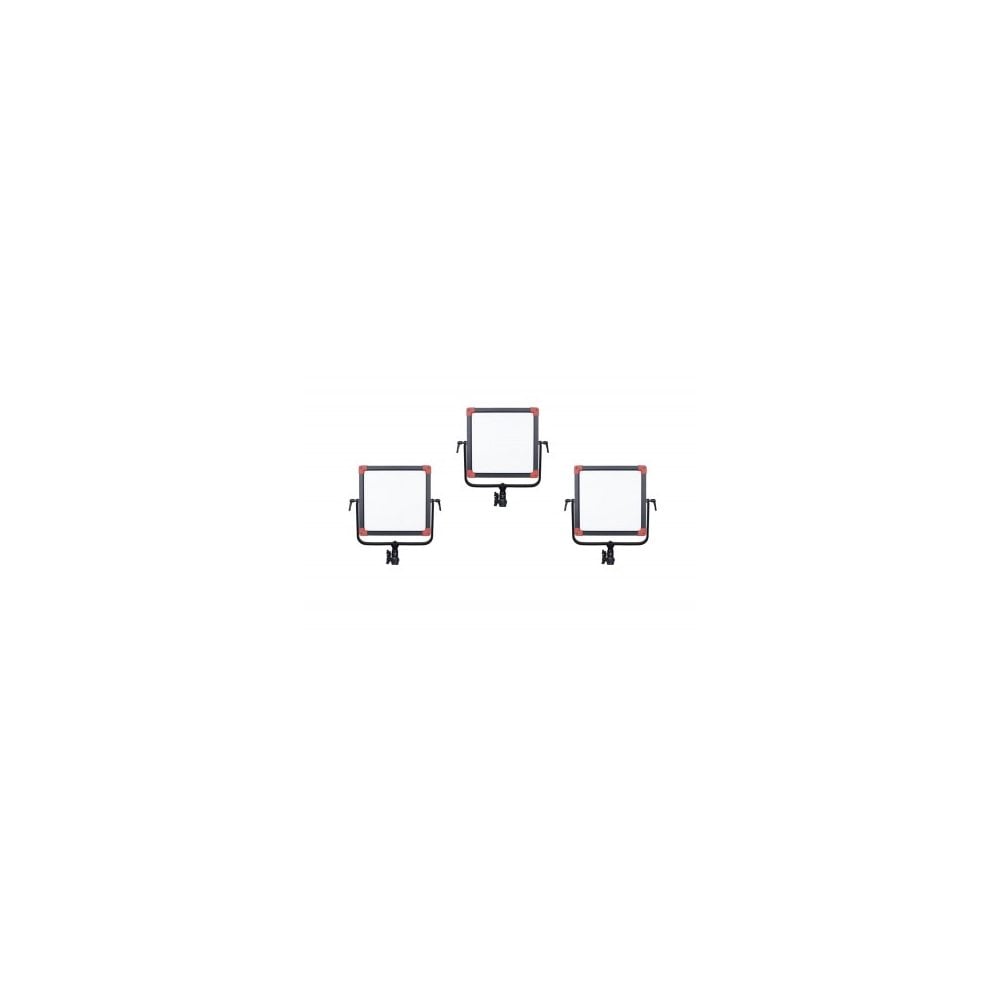

• 3x SWIT PL-E60D LED panel
• 3x Tripod with adjustable height 70 - 223 cm
• 3x Power supply
• 1x Transport case with retractable handle on wheels
