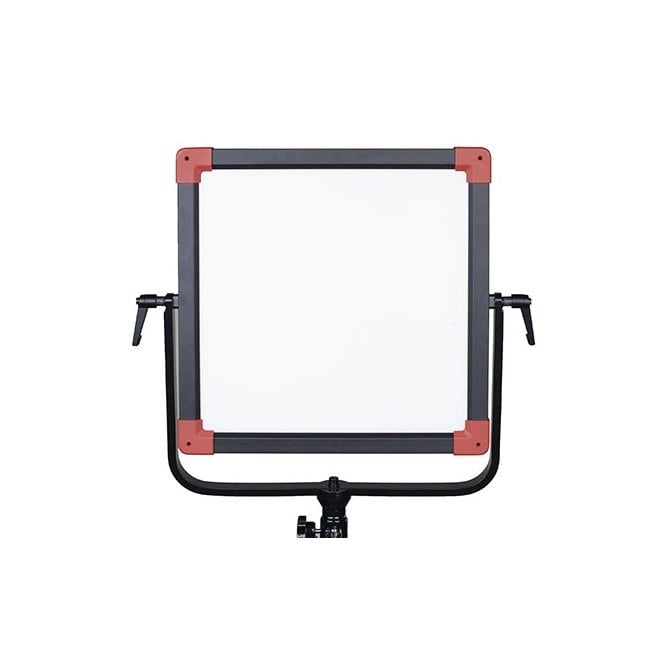

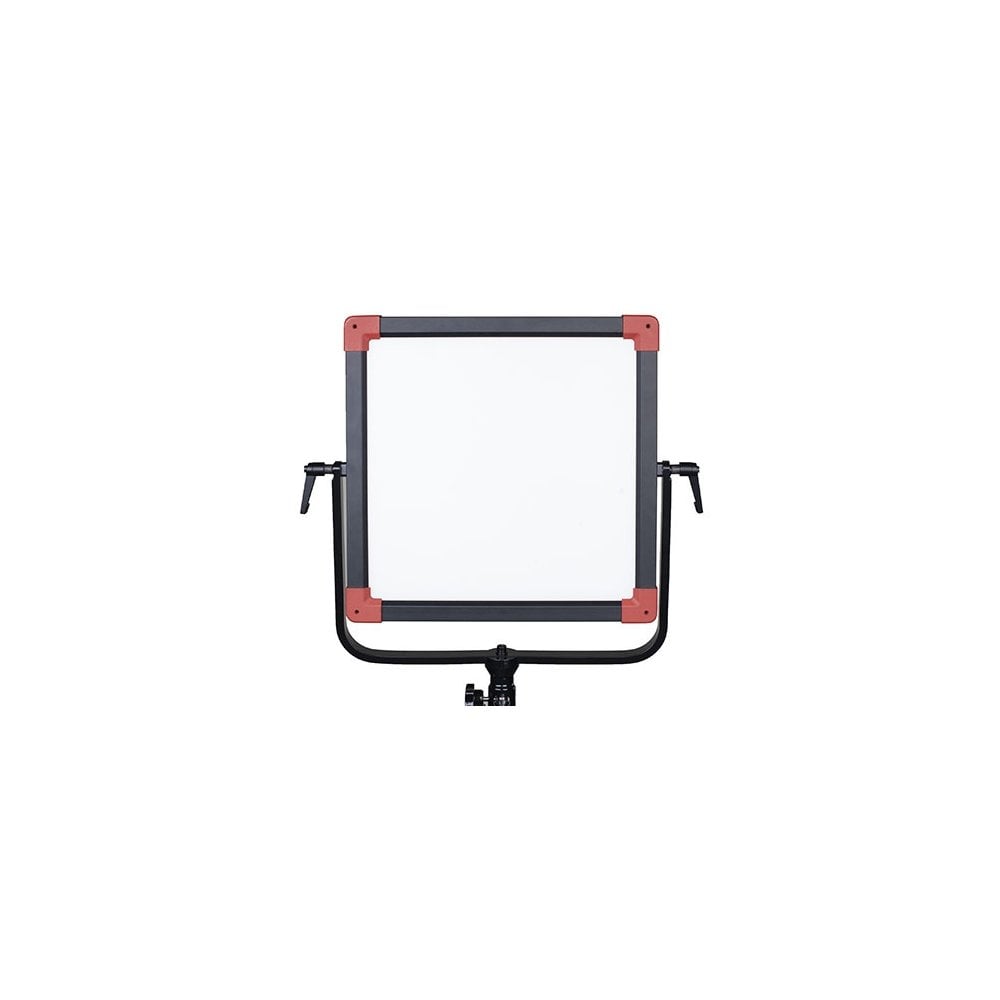

SWIT PL-E60D 3rd Generation Natural-Born-Soft TLCI-99 60W LED Panel Light, ultra slim, SWIT patent, V-Mount, DMX

PL E60D PLE60D PL-E60D PL/E60D

320pcs Edge Mounted LEDs, Super thin, area light, soft and glare less: PL-E60D is specially designed for field portable lighting applications. 320pcs SMD-LEDs are mounted in the inner edge of the light frame, and with SWIT unique 90° light guide technology, PL-E60D can output bright, soft and equally spread light, meanwhile, the light body is slim enough and portable, which is an ideal light source for interview kit and field video productions.

Laser Dots  90° Light Guide, High efficiency and super bright: The traditional edge mounted LED lights are always not so bright, because half of the light will go to the backside, even if there’s reflection board, there’s still a lot of light lost.

SWIT innovative technology is to add laser dots with calculated spaces on the reflection glass, so that the multi angles of edge light will be converged on the laser dots, and output 90° to the front with minimum light lost. Then the slim edge mounted light can also be high brightness.

1500 Lux @ 1 meter, 0-100% flick-free dimming: PL-E60D outputs 60W power, feeds 1500Lux luminance at 1 meter distance (centre), much brighter than other similar size LED panels. The effective beam angle reaches 70°, bounded by 50% decline. PL-E60D also supports 0 to 100% PWM digital dimming, smoothly and non-flickering.

Bi-colour Temperature, 2700K-6500K continuously adjustable: PL-E60D alternated with 2700K and 6500K LEDs, and the output colour temperature can be continuously adjustable between 2700K and 6500K.

High Colour Render Index, CRI Ra 98; TLCI 99: CRI (Colour Rendering Index) is a measure of the ability of a light source to reveal the colours of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the colour reveal ability by camera sensor. Max value 100.

The normal LED light has 80-85 CRI or TLCI, while PL-E60 offers the super high CRI at 98 and TLCI at 99, and will not lost the object original colours.

LCD Screen Display, Dimmer / colour / DMX channel, battery info: The rear LCD screen can display the current dimmer percentage, colour temperature value, DMX channel and CH channel, and remaining battery indications.

DMX512 control, Dimmer and Colour temperature: PL-E60D adopts standard 5-pin DMX in/out port, supports DMX512 protocol, and adjusts dimmer and colour temperature by DMX controller.

The dimmer and colour temperature occupy 1 DMX address respectively. Press and hold dimmer knob for 2 seconds to enter communication address setting interface, the address setting range is 001 to 512.

Quick Adjust Mode, By pressing the adjusting knob: PL-E60D supports quick adjusting brightness and colour temperature: Press the Dimmer knob, it will switch from 1% stepping to 10% stepping, to quick adjust brightness; Press Colour temperature knob, it will switch from 50K stepping to the following commonly used colour temperature selection: 2700K / 3200K / 4500K / 5600K / 6500K.

Interaction Control Mode: Control the lights each other without a DMX consoler: Press and hold colour temperature adjusting knob for around 2 seconds, the upper left corner of LCD shows "CH" indicating that the communication control mode currently is interaction control mode. In this mode, set the target lights to the same communication address to work normally, and the master slave machine is not distinguished.

Press and hold dimmer knob for 2 seconds to enter communication address setting interface, the address setting range is 001 to 512.

11-36V Wide Input Voltage, By V-mount/Gold mount battery or 4-pin XLR: PL-E60D supports 11-36V wide range voltage input, with 4-pin XLR DC socket, and equipped with V-mount or Gold mount plate to power by batteries. (The default battery plate is V-mount.)

Barn Door / Honeycomb, Optional purchase, Easy to assemble: PL-E60D has all-metal housing, and provides the 4-leaf metal barn door and 40° metal honeycomb accessories, easy to assemble. Barn door (Model # LA-HE60) and Honeycomb (Model # LA-GE60) are optional purchased.

Specifications:

• LED: 320pcs SMD LEDs
• illuminance: 1500Lux @ 1m
• Beam angle: 70°(50% bounded)
• Colour Temperature: 2700K～6500K
• CRI: 98
• TLCI: 99
• Power: Approx. 60W
• Working voltage: DC11V～36V
• Dimension: 382×403×48mm
• Lighting area: 257×257mm
• weight: 3.2kg

What's in the box

• 1x PL-E60D Light
• 1x Bag
• 1x AC-DC Adaptor
