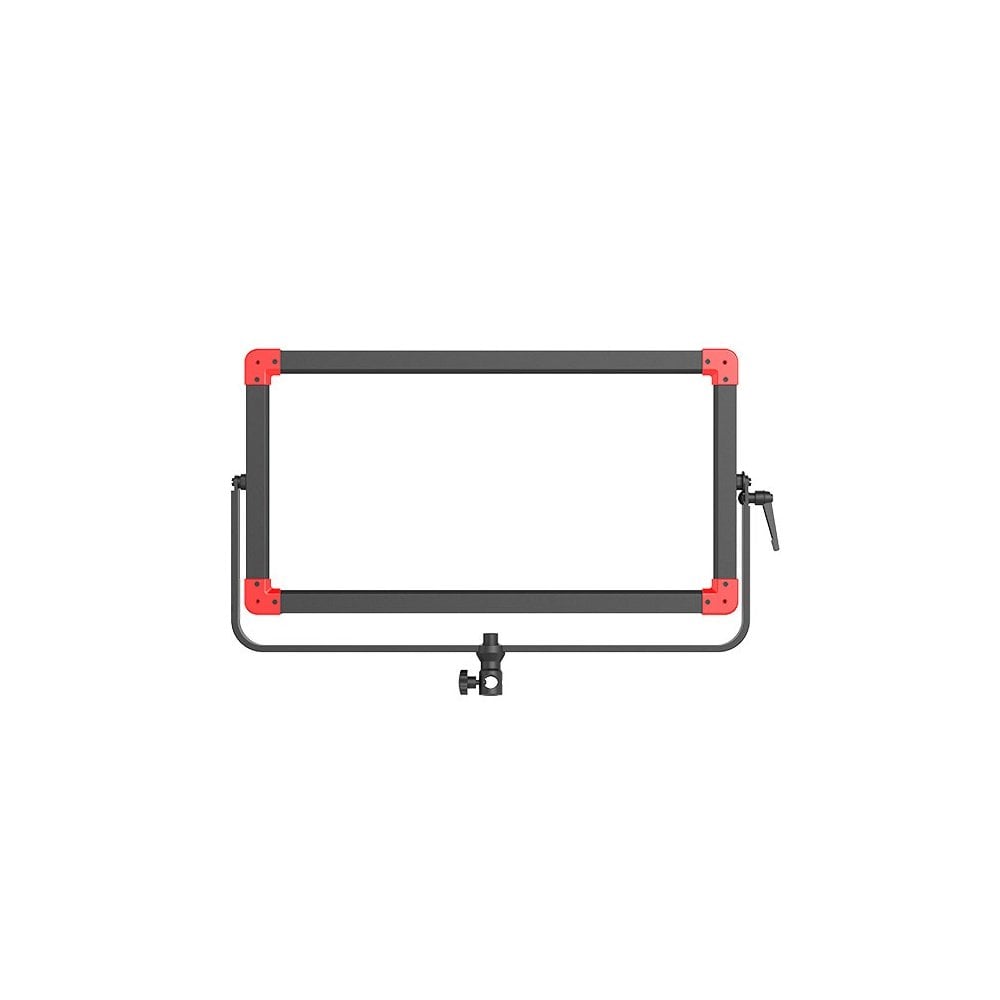

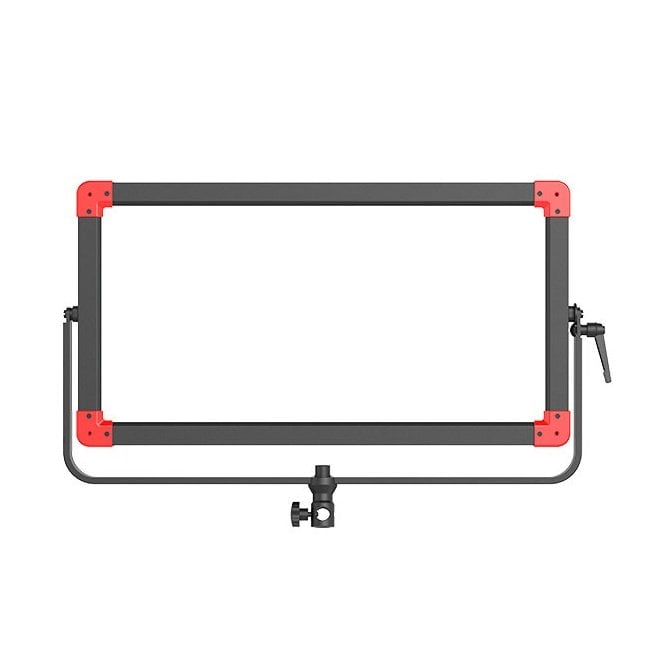

Swit PL-E90P Waterproof 3rd Generation Natural-Born-Soft TLCI-99 90W LED Panel Light, ultra slim, patent, V-Mount

SWIT PL-E90P Waterproof 3rd Generation TLCI-99 90W LED Panel Light, ultra slim, SWIT patent, V-Mount

PL E90P PLE90P PL-E90P PL/E90P

SWIT PL-E90P 90W IP54 Waterproof Panel LED, IP54 Rainproof Panel Light:

PL-E90P is an advanced version of the PL-E90D, with additional IP54 rainproof structure. The light can work in the rain at any angle without external protection, and provides IP54 rainproof V-mount batteries to work together.

480pcs Edge Mounted LEDs, Super thin, soft and glare less:

PL-E90P is specifically designed for field portable lighting applications. 480pcs SMD-LEDs are mounted in the inner edge of the light frame. With SWIT unique 90° light guide technology, PL-E90P can output bright, soft, equal spread of light. The light weight body is slim and portable, which is an ideal light source for interview shoots and field video productions.

2200 Lux @ 1 meter, 0-100% flick-free dimming:

PL-E90P outputs 90W power, feeds 2200Lux luminance at 1 meter distance (centre), much brighter than other similar size LED panels. The effective beam angle reaches 70°, bounded by 50% decline. PL-E90P also supports 0 to 100% PWM digital dimming, smooth and non-flickering.

Bi-colour Temperature, 2700K-6500K, continuously adjustable:

PL-E90P alternates with 2700K and 6500K LEDs, and the output colour temperature can be continuously adjustable between 2700K and 6500K.

High Colour Render Index, CRI Ra 98; TLCI 99:

CRI (Colour Rendering Index)  measures the ability of a light source to reveal the colours of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is specifically for the colour reveal ability by camera sensor. Max value 100.

The normal LED light has 80-85 CRI or TLCI, while PL-E90P offers the super high CRI at 98 and TLCI at 99, and will not lose the objects original colours.

LCD Screen Display, Dimmer / colour / DMX channel, battery info:

The rear LCD screen can display the current dimmer percentage, colour temperature value, DMX channel and CH channel, and remaining battery indications.

DMX512 control, Dimmer and Colour temperature:

PL-E90P adopts standard 5-pin DMX in/out port, supports DMX512 protocol, and adjusts dimmer and colour temperature by DMX controller. The dimmer and colour temperature occupy 1 DMX address respectively.

Press and hold dimmer knob for 2 seconds to enter communication address setting interface, the address setting range is 001 to 512.

Quick Adjust Mode, By pressing the adjusting knob, PL-E90P supports quick adjusting brightness and colour temperature:

Press the Dimmer knob, it will switch from 1% stepping to 10% stepping, to quick adjust brightness; Press Colour temperature knob, it will switch from 50K stepping to the following commonly used colour temperature selection: 2700K / 3200K / 4500K / 5600K / 6500K.

Interaction Control Mode, Control the lights each other without a DMX consoler:

Press and hold colour temperature adjusting knob for around 2 seconds, the upper left corner of LCD shows "CH" indicating that the communication control mode currently is interaction control mode.

In this mode, set the target lights to the same communication address to work normally, and the master slave machine is not distinguished.

Press and hold dimmer knob for 2 seconds to enter communication address setting interface, the address setting range is 001 to 512.

Key Features:

• 480pcs edge mounted SMD-LEDs
• Unique 90° light guide technology
• IP54 certificated waterproof
• 90W power, 2200Lux @ 1meter
• 0-100% flick-free dimming
• 70° effective wide beam angle
• 2700K-6500K continuously adjustable
• Super high CRI Ra 98, TLCI 99
• DMX512 control and Interaction control
• LCD display colour, dimmer and battery info
• DC 11-36V wide input voltage
• Power by V-mount / Gold mount battery
• Strong all-metal housing with U-stand
• Provide portable 3-light kit with tripods

Specifications

• LED: 480pcs SMD LEDs
• Illuminance: 2200Lux @ 1m
• Beam angle: 70°(50% bounded)
• Colour Temperature: 2700K～6500K
• Colour Render: CRI 98; TLCI 99
• IP Class: IP54
• Power: Approx. 90W
• Working voltage: DC11V～36V
• Dimension: 650×403×48mm
• Lighting area: 526×257mm
• weight: 4.8kg

What's in the box

• 1x Barn door
• 1x Bag
• 1x AC-DC Adaptor
• 1x PL-E90P Light
• 1x Optional 4-leaf barn door and 40° honeycomb
