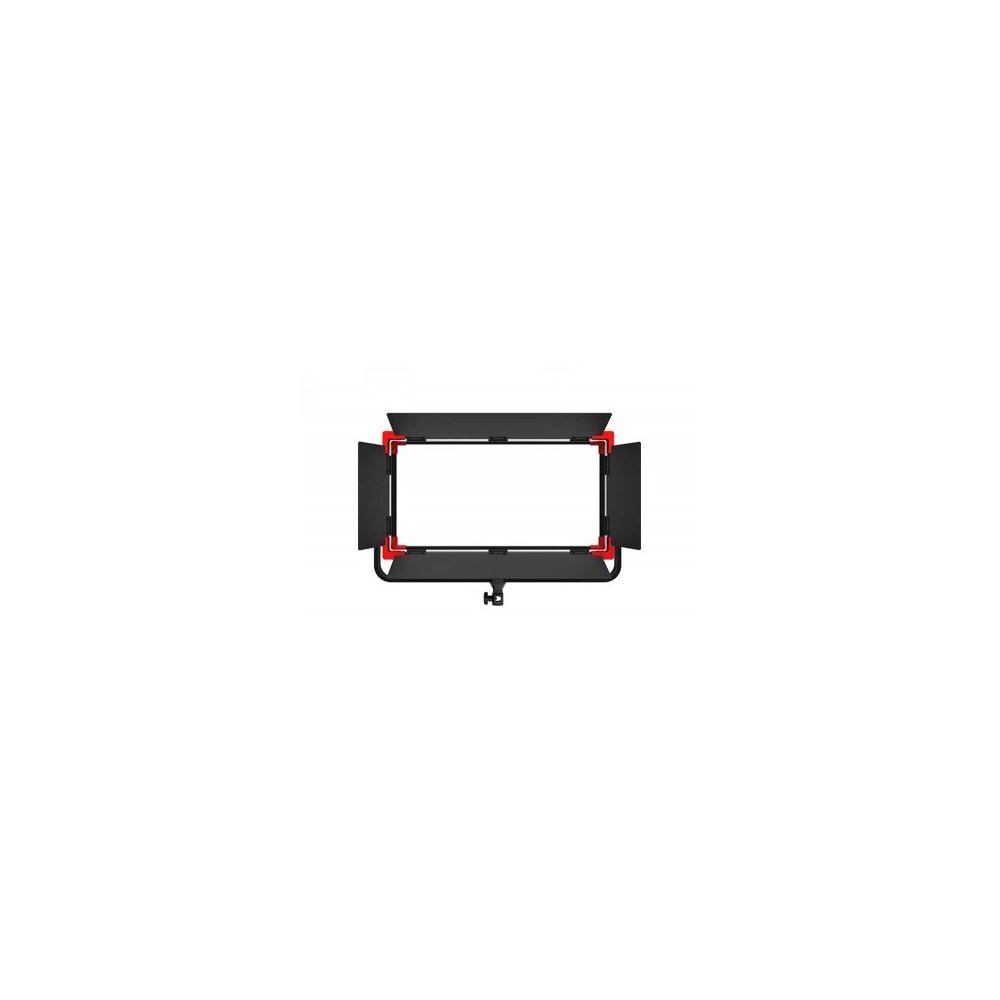

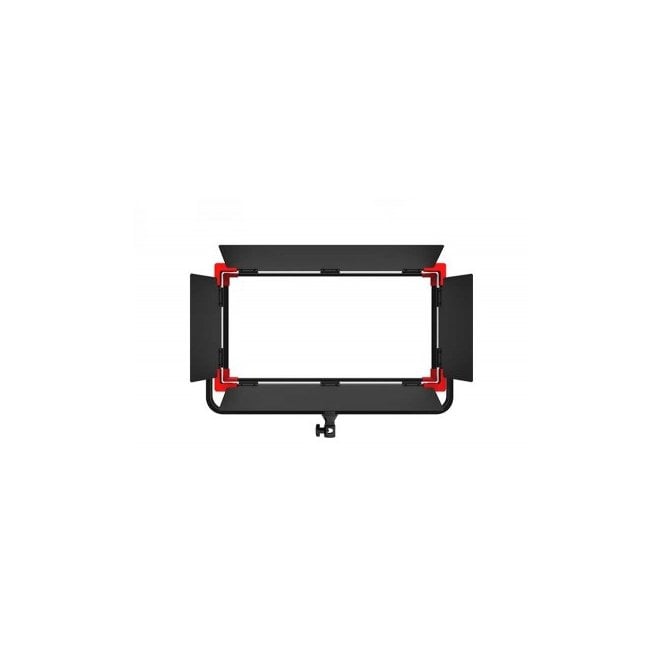

Swit PL-S150D | 150W super-bright Soft Panel LED Light, 5500Lux, V-Mount, DMX

SWIT PL-S150D 150W super-bright Soft Panel LED Light, 5500Lux, V-Mount, DMX

PL-S150D PL-S150D PL-S150D PL-S150D

No Fan, No Noise:

The active cooling system of the PL-S150D ensures 150W high bright output with no fan or louver, to provide a silent video production environment.

2700K-6500K Continuously Adjustment:

The PL-S150D consists of 150W of 2700K LED and 150W of 6500K LED, and outputs 150W power at any colour temperature from 2700K to 6500K.

CRI 97; TLCI 99:

The PL-S150D adopts high end surface mounted LEDs with super high Colour Rendering Index (CRI) Ra 97, and Television Lighting Consistency Index (TLCI) 99. Objects will keep their original colours exactly under the light.

SSI 73 (D55):

SSI (Academy Spectral Similarity Index) is an evaluation of light colour rendering in 4K broadcast studios, by comparing the spectral power distributions of a test light fixture with a reference light source. PL-S150D CIE D55 (comparing with sunlight) SSI scores 73, a high score to the LED light.

Control Info Display:

The rear LCD screen can display dimmer percentage, colour temperature, DMX address and Group channel.

Long press dimmer knob to set DMX address, and long press colour temp knob to switch between DMX consoler mode and Group interactive control mode.

5-pin DMX IN & OUT:

The PL-S150D provides 5-pin XLR DMX512 in & out, and a 5V USB-A port to power the wireless DMX receivers.

The DMX address n= dimmer, n+1=colour temp

DC and Battery Power:

The PL-S150D supports 3-pin XLR DC 12-36V wide range input, and an on-board V-mount plate to power by batteries. The standard package provides an AC-DC adaptor and can be fixed to the V-mount plate.

Key Features:

• 1152pcs ultra bright long-life LEDs
• SMD Surface mounted LED technology
• 64° half peak wide beam angle
• 150W power, 5500Lux @ 1meter
• Smooth index dimming curve
• 2700K-6500K continuously adjustable
• Colour rendering CRI 97, TLCI 99, SSI(D55)73
• DMX512 controlled colour and dimmer
• LCD display colour and dimmer value
• Power by V/Gold mount battery or AC adaptor
• 4-leaf metal barn doors and Yoke bracket

Specifications

• LED: 1152pcs SMD LEDs
• Illuminance: 5500Lux @ 1m
• Beam Angle: 64° half peak
• Colour Temperature: 2700K ～ 6500K
• CRI: 97
• TLCI: 99
• SSI (D55): 73
• Power: 150W
• Working Voltage: DC12V～36V
• Dimension: 543×301×58mm
• Lighting Area: 484×242mm
• Weight: 5.8kg with metal barndoor

What's in the box

• 1x SWIT PL-S150D | 150W super-bright Soft Panel LED Light, 5500Lux, V-Mount, DMX
