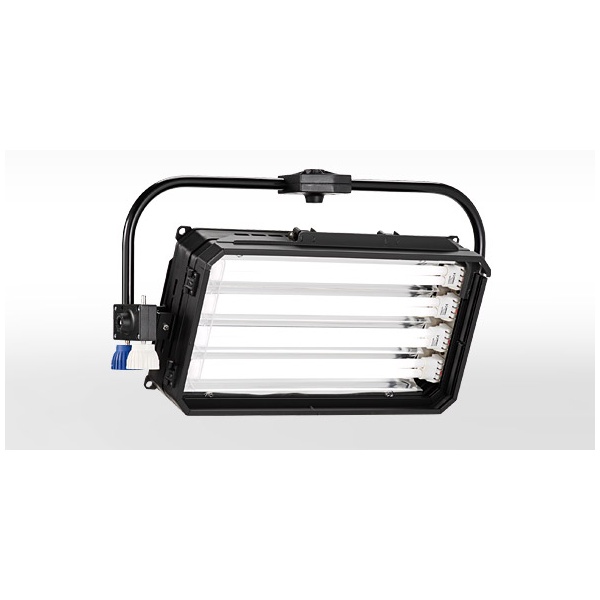

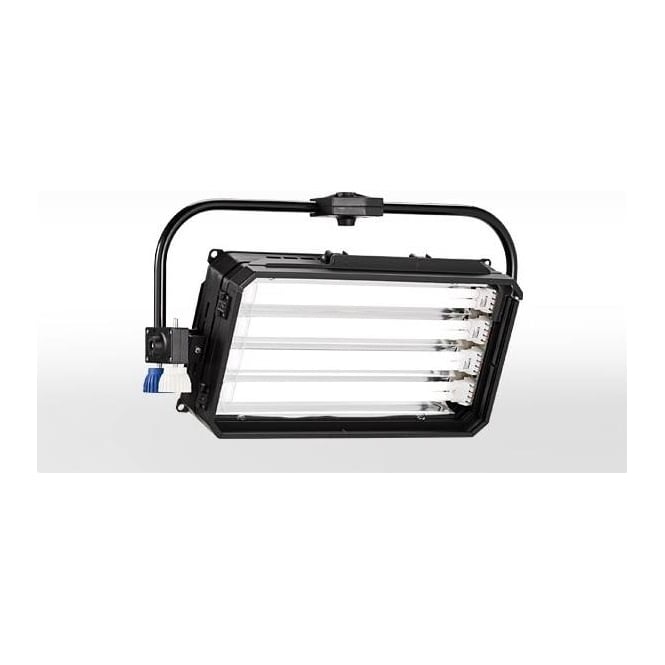

Arri L1.84004.B STUDIO COOL 4 Multicontrol, MAN, black, 220-250 VAC

code: L1.84004.B
Item Available | Usually dispatched within 24 hours
Loading...
Free Delivery On Orders Over £150

L1.84004.B STUDIO COOL 4 (Multicontrol, MAN, black, 220-250 VAC, Schuko)

Constructed with rigid aluminium extrusion profiles, all three models are available with three control module options. The Multi Control version gives full DMX and 0-10 V analog control features, as well as a built-in manual dimmer on the back of the fixture. The Phase Control version allows conventional dimming via optional phase load adapters. The basic version is equipped with a 2-position switch, for single On/Off control of one or two tubes. The series covers a performance spectrum of 110-220 Watt.

Features:

Hinged accessory holder

Removable electronics and ballast module

Lightweight but rugged aluminium extrusion housing

3 module versions: 4-Bank, 2-Bank, 2+2-Bank

3 control versions: Dual Switch, Multi Control, Phase Control

2 adapter options: yoke or baby plate

Convertible reflectors: 90° and 120°

Extensive accessories

Dimming 1% - 100% @230 V; 3% - 100% @ 120 V

Flicker-free < 1%

Operating frequency at full load 40 kHz

'Daisy-chain' up to six 4-Banks in one circuit

Specification:
  • Lamphead Type: Flood, 250 W
  • Reflector Type: High purity aluminum
  • Lamp Type: TC-L 55 W
  • Power Consumption: 4 x 55 W
  • Voltage Range: 230 V / 120 V
  • Lamp Base: 2G11
  • Dimmability: Yes, 1% - 100% @230 V; 3% - 100% @120 V
  • Cable Options: Schuko
  • Correlated Color Temperature: 3200 K / 5600 K
  • Beam Angle: 90° / 120°
  • Product Weight: 7,8 kg / 17.2 lbs.
  • Shipping Weight: 10,4 kg / 22.9 lbs.
  • Product Size (HxWxL): 435 x 733 x 176 mm / 17.1" x 28.9" x 6.9"
  • Shipping Size (HxWxL): 600 x 765 x 285 mm / 23.66" x 24.09"
  • Accessory Diameter: 599 x 312 mm / 23.58" x 12.28"
  • Barndoor Size: 601 x 312 mm / 23.66" x 24.09"
  • Mounting: Spigot 28 mm / 1 1/8" (1.1")
  • Protection Class: I/IP 20
  • Certifications: CE, CB, GS, cNRTL
