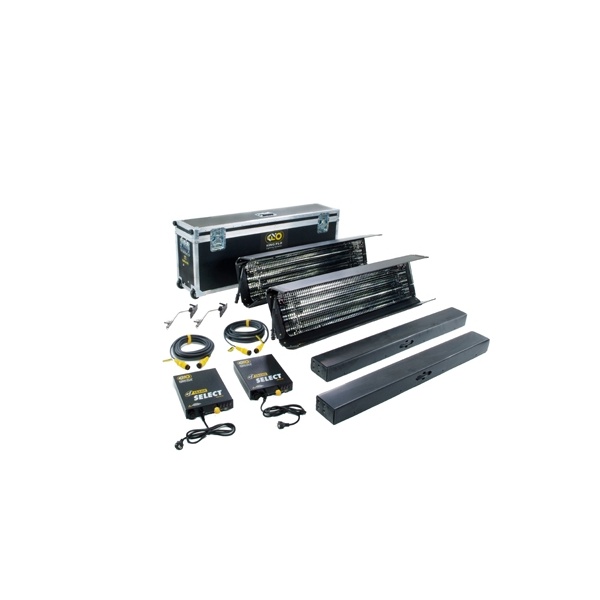

Kino Flo KIT-2GF-X230 Gaffer DMX Kit (2-Unit), 230VAC

KIT-2GF-X230 Gaffer DMX Kit (2-Unit), 230VAC

(Includes 4ft 4Bank DMX System with MTP-BL41 Mount (x2), Lamp Case (x2), Gaffer Ship Case)

Award-winning 4ft 4Bank portable lighting systems have changed the way professionals light everything from feature films to television productions to video and still photography.

Why? Because it is the most versatile softlight on the market. The 4Bank is similar to a 1,000 Watt softlight, but uses 1/2 the power. Color temperature doesn’t shift when the light levels change. Lamps are long lived and operate outside the fixture. The fixtures are lightweight enough to tape to a wall. Here are some 4Bank Basics:

The 4-Lamp Fixture
• Built-in Barndoors
• Removable Lamp Harness, Reflector and Louver
• Twist-on, locking Center Mount
• True Match® daylight and tungsten lamps

The High Output Ballast
• Select and DMX
• HO/Standard switching
• Flicker-free, remote operation
• Individual lamp control
• Instant-on, dead quiet

4Bank System Highlights

• 4-Lamp remote fixture w/ built-in barndoors
• Fixture includes removable Lamp Harness, Reflector and Louver
• Same fixture takes daylight and tungsten lamps, plus visual effects color lamps
• Mounts to stand, light enough to tape to wall
• Removable center mount
• Fixture or lamps w/ harness run up to 75 feet (24 meters) from ballast
• High output, flicker-free ballasts
• Instant-on, dead quiet
• Individual lamp switching - no color shift
• HO/Std switching
• Same ballast runs 4ft and 2ft lamps
• Operates at 1/2 the power of conventional tungsten softlights
• UL listed, CE approved

SPECIFICATION:

Dimensions
  56.5 x 13 x 21.5”
  (143.5 x 33 x 55cm)

  Weight
  73.5 lb (33.5kg)

Fixture Specifications
Fixture Part Number Lamps Lamp Type Dimensions Weight w/Lamps   4ft 4Bank CFX-4804 4 F75 / T12 52 x 13 x 3.5" w/6.5" barndoors (132 x 33 x 9cm w/16.5cm barndoors) 11.5 lb (5.2kg)   2ft 4Bank CFX-2404 4 F40 / T12 27 x 13 x 3.5" w/6.5" barndoors (69 x 33 x 9cm w/16.5cm barndoors) 7.5 lb (3.4kg)                       Ballast Specifications                       Ballast Part Number Input Voltage Output Frequency Amperage Lamp Switching Output Switching Dimensions Weight   4Bank Select BAL-415-120 120VAC 50/60Hz 25kHz F75/5.0A F40/3.5A 1~4 4ft/2ft 13 x 9.5 x 3" (33 x 24 x 7.6cm) 5.5 lb (2.5kg)   4Bank Select BAL-415-230 230VAC 50/60Hz 25kHz F75/2.5A F40/1.8A 1~4 4ft/2ft 13 x 9.5 x 3" (33 x 24 x 7.6cm) 5.9 lb (2.7kg)   4Bank DMX BAL-457-120U 100~240VAC 50/60Hz 25kHz F75/2.6A, F40/2.5A, F30/1.6A, F20/0.9A 1~4 4ft/2ft 12 x 11 x 3" (30.5 x 28 x 7.6cm) 5.3 lb (2.4kg)   4Bank DMX BAL-457-230U 240~100VAC 50/60Hz 25kHz F75/1.4A, F40/1.3A, F30/0.8A, F20/0.7A 1~4 4ft/2ft 12 x 11 x 3" (30.5 x 28 x 7.6 cm) 5.3 lb (2.4kg)
