Rugged yet lightweight impact resistant construction
Patented interchangeable lamp unit design also accepts tungsten halogen and HMI arc lamp units - one light does it all
Hot-shoe Power Base with PP90 plug (lead length 500mm) for use with light output on PAGlok Connector
Includes ¼€ Stud Adaptor and Camera Shoe Plate
Filter kit that converts LED to match halogen available separately
Reflector 45mm dia.
70mm wide x 103mm long x 115mm high

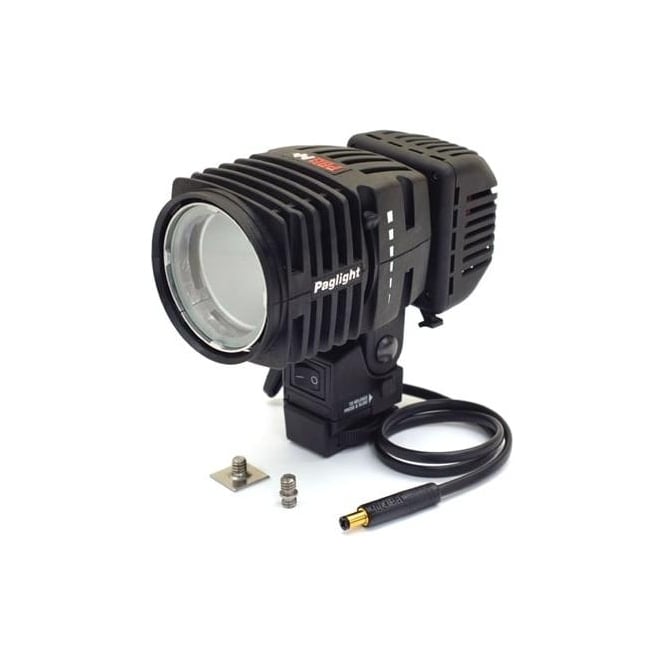

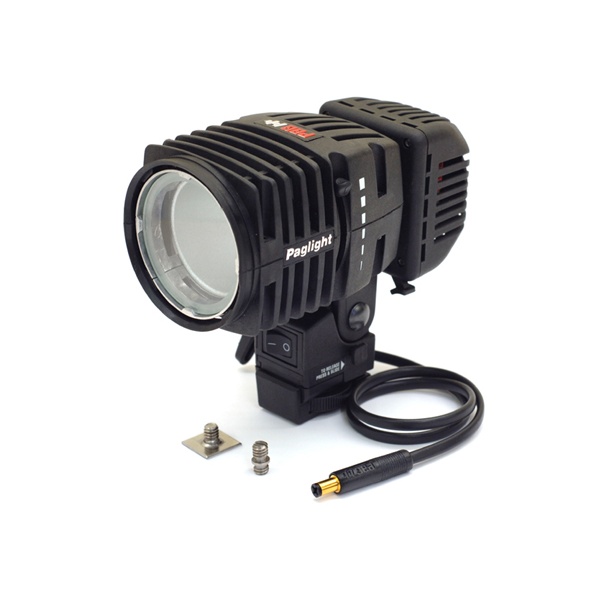

Paglight is the ultimate TV News camera top-light.
Paglight has a revolutionary patented design which allows a range of professional lighting technologies to be used with one lamp head. Interchangeable LED, tungsten halogen or HMI arc lighting modules, plug into the back of the reflector housing. They can be hot-swapped quickly and safely, in a matter of seconds. Paglight is the only broadcast light with this feature, providing you with the correct lighting technology for any professional situation.
The Paglight LED has an impressive light intensity over distance in comparison to other LED lights. Output measures 900 lux at 2m, the equivalent of 50W halogen. PAG has achieved this by focusing the output of the emitters using an integrated lens, and by positioning the LED module within the Paglight reflector. The results are a testament to Paglight€™s superior optical design.
Power consumption is low, at only 11W, which is a significantly smaller load on the camera battery than the equivalent halogen option.
The bright white daylight balanced output is soft and even. Intensity can be controlled using the dimming facility incorporated in the LED module. The Paglight lamp head incorporates a spot to flood feature for additional control, a feature not commonly found in camera top-lights.
The light is designed to be cool-running at all times and easy to handle.
The lamp body has a multi-directional mounting and may be adjusted vertically and horizontally. The desired position can be maintained by a locking lever situated on the side of the light base.
Paglight is supplied with a detachable hot-shoe Power Base that enables you to quickly attach the light to the camera, and remove it after shooting, leaving the power connection in place. This model incorporates a Power Base that has a cable length of 500mm, terminated with a PP90 plug, for connection to the light output of a PAGlok battery mount, when fitted to the rear of a camera.
Paglight can be mounted to the camera using the ¼Ã¢€ stud adaptor or the camera shoe plate supplied with the light.
SPECIFICATION:
Paglight:
Voltage: Nominal 12V to 14.8V battery supply.
Maximum Power Rating: 100W lamp with 13.2V battery.
Spot and Flood Angles:
Flood 62°. Spot 22.6°.
Dimensions:
Height: 115mm (4.5”) Width: 70mm (2.7”) Depth: 103mm (4”) Without accessory kit, plug-in lamp unit or power base.
Weight: 233g (8.2oz) without accessory kit, plug-in lamp unit or power base.
Reflector size: 45mm (1.8”) dia.
LED Dimmer Unit:
Input Voltage Range:10V to 20V DC.
Power Consumption:11W.
Output: 900 lux at 2m (spot), 175 lux at 2m (flood).
Colour Temperature: Daylight match (5600°K to 6000°K approx.).
