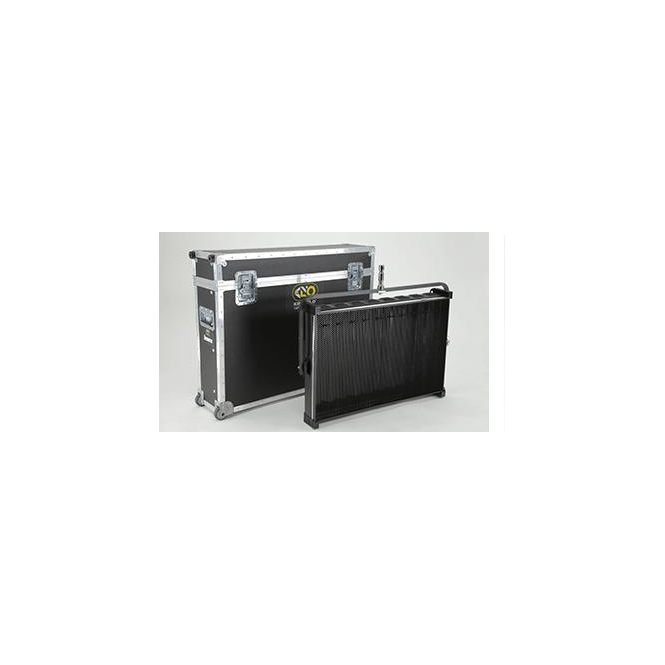

Kino Flo KIT-IM10-1/230 Imara S10 DMX Yoke Mount Kit, 230VAC

Kino Flo KIT-IM10-1/230 (KITIM101230, KIT IM10 1 230, KIT/IM10/1/230, kit-im10-1/230) Imara S10 DMX Yoke Mount Kit, 230VAC

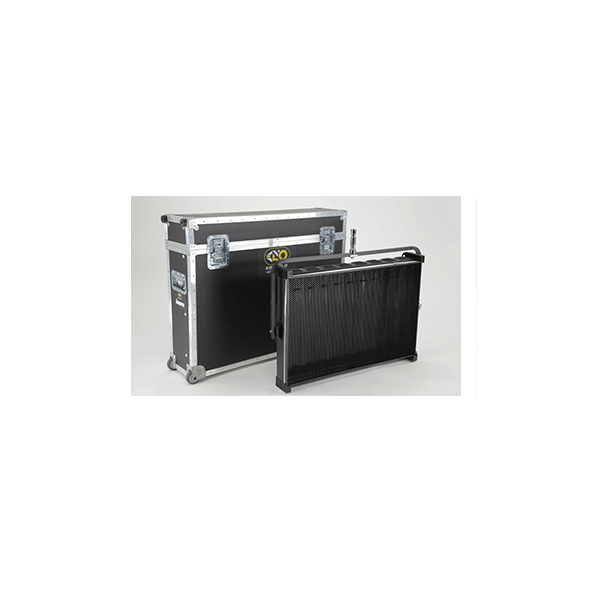

Includes:   Yoke Mount Fixture, Gel Frame, Louver 90°, Jr. Pin, Ship Case.

The Imara® S10 and S6 are studio fixtures with the characteristics of the Image series, but with a more concentrated spread of light along both horizontal and vertical axes.  The Imara S10 puts out about the same light output as a VistaBeam 610, yet draws only 5.2A at 120VAC (2.6A at 230VAC).  The all-in-one Imara DMX fixtures also feature new levels of control by combining the benefits of lamp switching with lamp dimming making them ideal for film production, TV broadcast and digital photography.  Both models use Kino Flo’s True Match® high color rendering 55W compact lamps (CRI 95) available in tungsten and daylight.

      Imara Features Include

•     DMX and manual lamp dimming
•     DMX and manual lamp switching
•     Reflector, Louver and Gel Frame
•     True Match® daylight, tungsten balanced lamps

Available in Yoke Mount and Pole-Op

      Imara Highlights

•     Concentrated, broad, even spread of light on horizontal and vertical axes.
•     DMX and manual lamp switching/dimming enhance color and intensity control.
•     Honeycomb louvers in 90° and 60° focus, cut the light better than barndoors.
•     Yoke Mount or Pole-Op designs mount easily, improve focusing.
•     High output, energy-efficient technology boosts light output at low power, heat levels.
•     Low amperage draw means low energy costs.
•     Efficient heat management design maintains stable color temperature.
•     Compact, lightweight design for studio and for location set lighting.
•     Color gels last 10 times longer than when used with hot lights.
•     Fixtures take high color quality (CRI 95) True Match® lamps 3200K and 5500K.
•     Fixtures also operate visual effects lamps 420nm blue and 550nm green.

The Imara series adds depth and variety to Kino Flo’s line of high output fluorescent studio fixtures.  Imara’s unique features, such as
a new hi-beam SoftCut reflector design, delivers a classic movie studio soft light that spreads light evenly across the horizontal and
vertical axes.  The fixtures are lightweight, operate coolly and run on very low power. How low?

The Imara S10 produces as much light as a 3000W tungsten softlight, but uses only one fifth the amount of power at 5.2A (120VAC) compared to the tungsten softlight at 25A (120VAC). Light level adjustments are controlled with DMX and manual lamp switching as well as DMX and manual dimming. Unique accessory holder brackets are designed for holding the gel frame and honeycomb louvers.  In addition, the accessory holder brackets allow for four-point rope hangs for specialty rigging applications.

The Imara takes Kino Flo’s True Match® 55W compact lamps in tungsten and daylight (CRI 95), the same lamps that have achieved great success in Kino Flo’s Diva-Lite and ParaBeam series.  The availability of Kino Flo’s narrow band 420nm blue and 550nm green lamps make it an additional option for difficult to light composite screens.

• TV Studio lighting directors will appreciate the even field of illumination and high light level along with the integrated DMX lighting controls.

The Yoke Mount and Pole-Op options allow the fixtures to easily hang from a grid. The fixtures can be controlled from a lighting desk without the need of conventional dimmer packs. The savings in power make every studio manager mandate for energy conservation readily achievable.

• Cinematographers welcome the Imara to their fold for its compact size and high output.

It draws half the amperage of a VistaBeam 610 at about the same effective light output.
Its flicker-free operation and voltage controlled electronics offer stable color rendering and
take the worry out of shooting at higher camera speeds.

• DSLR still photographers who are now working with moving image capture will appreciate the cool operation and high light level in a concentrated evenly lighted area.

The beam spread can be further controlled through the use of honeycomb louvers to create a very cosmetic soft edged spot. Digital image makers will be able to shoot in light conditions normally reserved for strobe lighting applications. As a professional cool light, Imara maintains stable color rendering over as much as a 12-hour shooting period without overheating the set or requiring excessive power.

• Dimensions:   44.5 x 11 x 35.5”  (113 x 28 x 90cm)
• Weight:   62.5 lb (28.5kg)

Yoke Mount Fixture Specifications
Fixture Input Voltage Output Frequency Amperage Dimming Range Lamp Switching Lamps Dimensions Weight w/ Lamps   Imara S10 DMX   Yoke 120VAC 50/60Hz 30kHz 5.2A 100~5% 2/4/6/8/10 10 x 55W CFL 41 x 28 x 7.5" (104 x 71 x 19cm) 33 lb (15kg)   Imara S10 DMX       Yoke 230VAC 50/60Hz 30kHz 2.6A 100~5% 2/4/6/8/10 10 x 55W CFL 41 x 28 x 7.5" (104 x 71 x 19cm) 33 lb (15kg)   Imara S6 DMX   Yoke 120VAC 50/60Hz 30kHz 3.2A 100~5% 2/4/6 6 x 55W CFL 28 x 27 x 7.5" (71 x 68.5 x 19cm) 22.5 lb (10kg)   Imara S6 DMX   Yoke 230VAC 50/60Hz 30kHz 1.5A 100~5% 2/4/6 6 x 55W CFL 28 x 27 x 7.5" (71 x 68.5 x 19cm) 22.5 lb (10kg)                                 Pole-Op Fixture Specifications                                       Fixture Input Voltage Output Frequency Amperage Dimming Range Lamp Switching Lamps Dimensions Weight w/ Lamps   Imara S10 DMX   Pole-Op 120VAC 50/60Hz 30kHz 5.2A 100~5% 2/4/6/8/10 10 x 55W CFL 41.5 x 28 x 7.5" (105 x 71 x 19cm) 33 lb (15kg)   Imara S10 DMX       Pole-Op 230VAC 50/60Hz 30kHz 2.6A 100~5% 2/4/6/8/10 10 x 55W CFL 41.5 x 28 x 7.5" (105 x 71 x 19cm) 33 lb (15kg)   Imara S6 DMX   Pole-Op 120VAC 50/60Hz 30kHz 3.2A 100~5% 2/4/6 6 x 55W CFL 28.5 x 27 x 7.5" (72 x 68.5 x 19cm) 22.5 lb (10kg)   Imara S6 DMX   Pole-Op 230VAC 50/60Hz 30kHz 1.5A 100~5% 2/4/6 6 x 55W CFL 28.5 x 27 x 7.5" (72 x 68.5 x 19cm) 22.5 lb (10kg)
