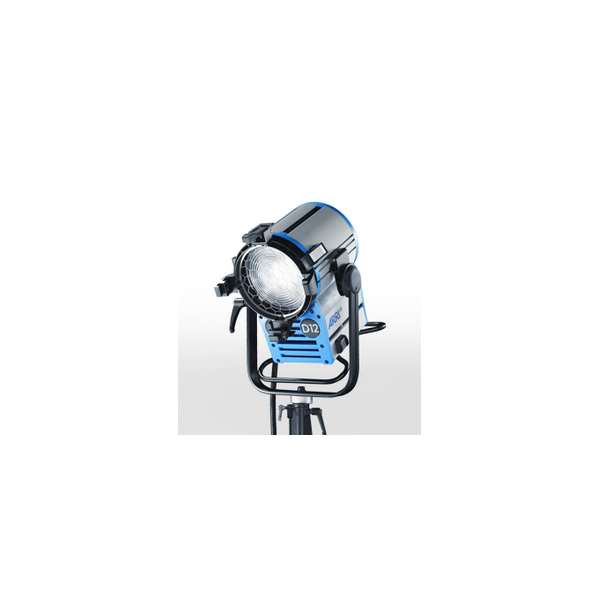

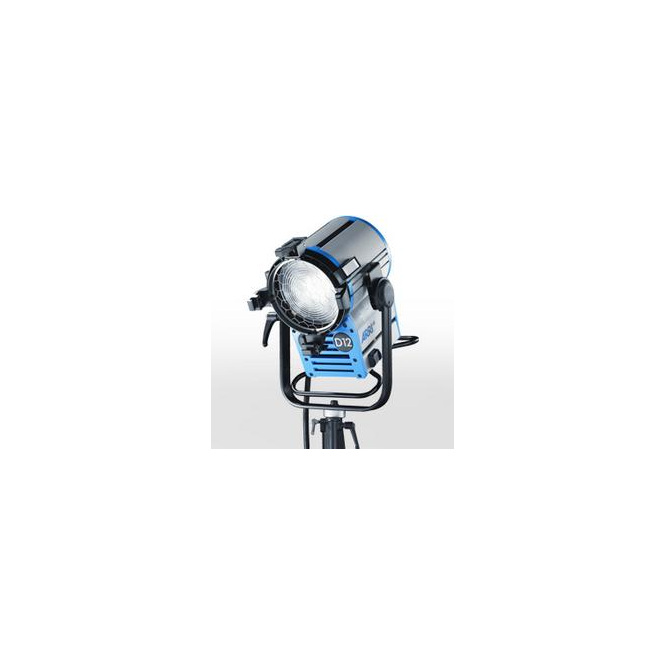

L1.33730.F TRUE BLUE D12 (MAN, blue/silver, Schaltbau GTV standard)
Following the introduction of the TRUE BLUE tungsten lampheads, ARRI is proud to present four new products making up the TRUE BLUE Daylight series –all offering the same innovative features and award-winning design. Building on the success of the industry-standard ARRI Compact Fresnels, the TRUE BLUE D5, D12, D25 and D40 have over 30 new improvements. With reduced weight, compact size and maximum light output, this TRUE BLUE Daylight series sets a new standard for professional lighting equipment.
Features:
Cross Cooling
Easy Maintenance
Adjustable accessory brackets
Barndoor Safety Catch
Sliding and lightweight stirrup
Tilt lock with disc brake
Stainless steel lens protection
Robust True Blue barndoors
Robust Location Top Latch
Protection class IP23
Specification:
Lamphead Type:
Fresnel, 1200 W
Reflector Type:
Spherical specular high purity aluminium
Lamp Type:
Metal Halide 1200 W/SE
Power Consumption:
1200 W
Voltage Range:
100 V
Lamp Base:
G 38
Dimmability:
Yes, 50 - 100% via ARRI Ballast Unit
Cable Options:
VEAM, Schaltbau (GTV-Norm)
Correlated Color Temperature:
6000 K
Beam Angle:
7,5°- 50°
Product Weight:
9,9 kg / 22 lbs.
Shipping Weight:
12,3 kg / 27.1 lbs.
Product Size (HxWxL):
511 x 375 x 325 mm / 20.1" x 14.8" x 12.8"
Shipping Size (HxWxL):
460 x 400 x 650 mm / 18.1" x 15.8" x 25.6"
Lens Diameter:
175 mm / 6.9"
Accessory Diameter:
230 mm / 9.06" (Scrim)
Barndoor Size:
245 mm / 9.65"
Mounting:
Spigot 28 mm / 1 1/8" (1.1")
Protection Class:
I/IP 23
Certifications:
CE, CB, GS, cNRTL
code:
