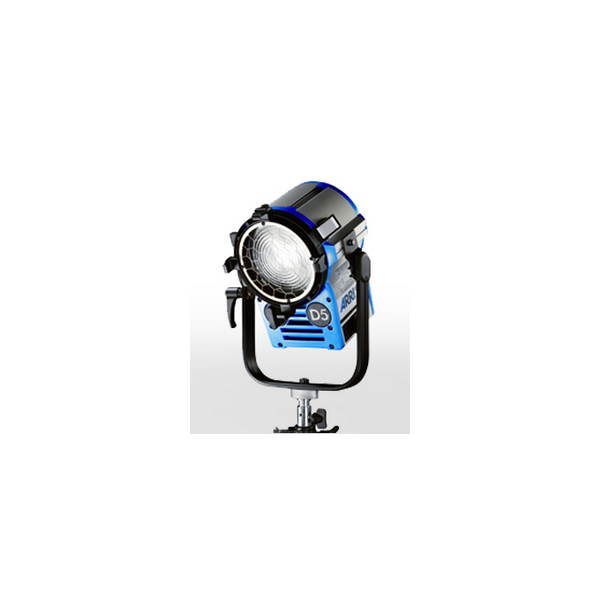

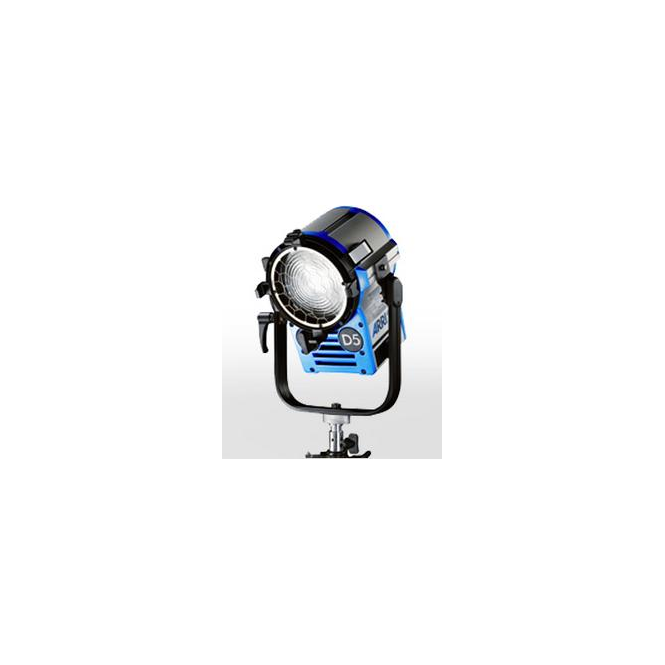

L1.33770.F TRUE BLUE D5 (MAN, blue/silver, Schaltbau GTV standard)
Where a lightweight Fresnel spotlight using daylight characteristics with compact size and high efficiency are needed, ARRI TRUE BLUE D-Series Fresnels are the preferred choice. ARRI's elegant modular construction, using corrosion-resistant aluminium extrusions and lightweight die castings, offers great structural strength and weather resistance. Together with ARRI flicker-free Electronic Ballasts, the rugged TRUE BLUE D-Series is ideal for all types of location lighting.
Features:
Cross Cooling
Easy Maintenance
Adjustable accessory brackets
Barndoor Safety Catch
Lightweight sliding stirrup
Fast operation top latch
Tilt lock with disc brake
Stainless steel lens protection
Robust True Blue barndoors
High efficiency, wide-angle lenses
Robust Location Top Latch
Protection class IP 23
Corrosion-resistant aluminium construction
Extremely even light distribution
Specification:
Lamphead Type:
Fresnel, 575 W
Reflector Type:
Spherical specular high purity aluminium
Lamp Type:
Metal Halide 575 W/SE
Power Consumption:
575 W
Voltage Range:
95 V
Lamp Base:
G22
Dimmability:
Yes, 50 - 100% via ARRI Ballast Unit
Cable Options:
VEAM, Schaltbau (GTV-Norm)
Correlated Color Temperature:
6000 K
Beam Angle:
6°- 56°
Product Weight:
6,1 kg / 13.5 lbs.
Shipping Weight:
7,2 kg / 15.87 lbs.
Product Size (HxWxL)
359 x 327 x 223 mm / 15.1" x 12.8" x 8.8"
Shipping Size:
390 x 390 x 360 mm / 15.3" x 15.3" x 14.1"
Lens Diameter:
150 mm / 5.9"
Accessory Diameter:
197 mm / 7.76" (Scrim)
Barndoor Size:
197 mm / 7.76"
Mounting:
Spigot 28 mm / 1 1/8" (1.1")
Protection Class:
I/IP 23
Certifications:
CE, CB, GS, cNRTL
