Arri L1.37300.B AS 40 MAN, blue/silver, VEAM

code: L1.37300.B
Item out of Stock | Usually dispatched within 24 hours
Loading...
Free Delivery On Orders Over £250

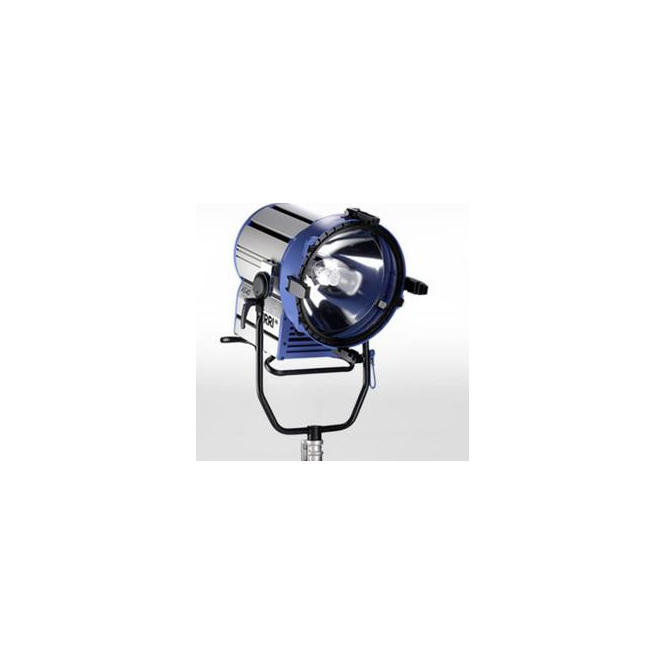

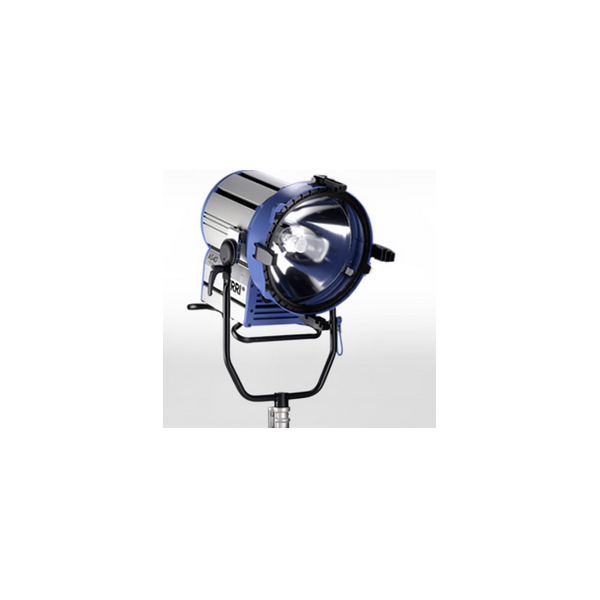

L1.37300.B AS 40 (MAN, blue/silver, VEAM)

The AS 40 is an improved replacement for the seasoned ARRISUN 40/25. It uses the same TRUE BLUE housing as the M40 and is thus of the same size, but over 3 kg lighter than the older ARRISUN 40/25. Since the accessory diameter has stayed the same, all existing lenses, barndoors and scrims can be reused.

Like all TRUE BLUE ARRI lampheads, the AS 40 implements cross cooling and allows thus safe operation even at extreme tilt angles. The electronics housing is spaced apart from the actual lamp housing to keep temperatures down and prolong the lifetime of electronic components. It is easy to open and to maintain.

Features:

  • TRUE BLUE designed housing
  • Same size as older model ARRISUN 40/25 but over 3 kg lighter
  • Compensation for Cable Loss (CCL)
  • Tubular steel yoke
  • Two disk brakes with steel handle
  • Cross Cooling allows safe operation at extreme tilt angles
  • Protection class IP 23 rating

Specification:

Lamphead Type:PAR, 4000 W
Reflector Type:High purity aluminum parabolic
Lamp Type:Metal Halide 4000 W/SE
Metal Halide 2500 W/SE
Power Consumption:4000 W / 2500 W
Voltage Range:115 V
Lamp Base:G38
Dimmability:Yes, 50 - 100% via ARRI Ballast Unit
Cable Options:VEAM, Schaltbau (GTV-Norm)
Correlated Color Temperature:6000 K
Beam Angle:9° - 49°
Product Weight:19 kg / 41.9 lbs.
Shipping Weight:34,0 kg / 75 lbs. (incl. pallet)
Product Size (HxWxL):723 x 471 x 590 mm / 28.5" x 18.5" x 23.3"
Shipping Size (HxWxL):650 x 600 x 670 mm / 25.6" x 23.6" x 26.4"
Lens Diameter:300 mm / 11.81"
Accessory Diameter:400 mm / 15.75" (Scrim)
Barndoor Size:413 mm / 16.26"
Mounting:Spigot 28 mm / 1 1/8" (1.1")
Protection Class:I/IP 23
Certifications:CE, CB, GS, cNRTL
